Prior to operation
Nomemclature / Handling

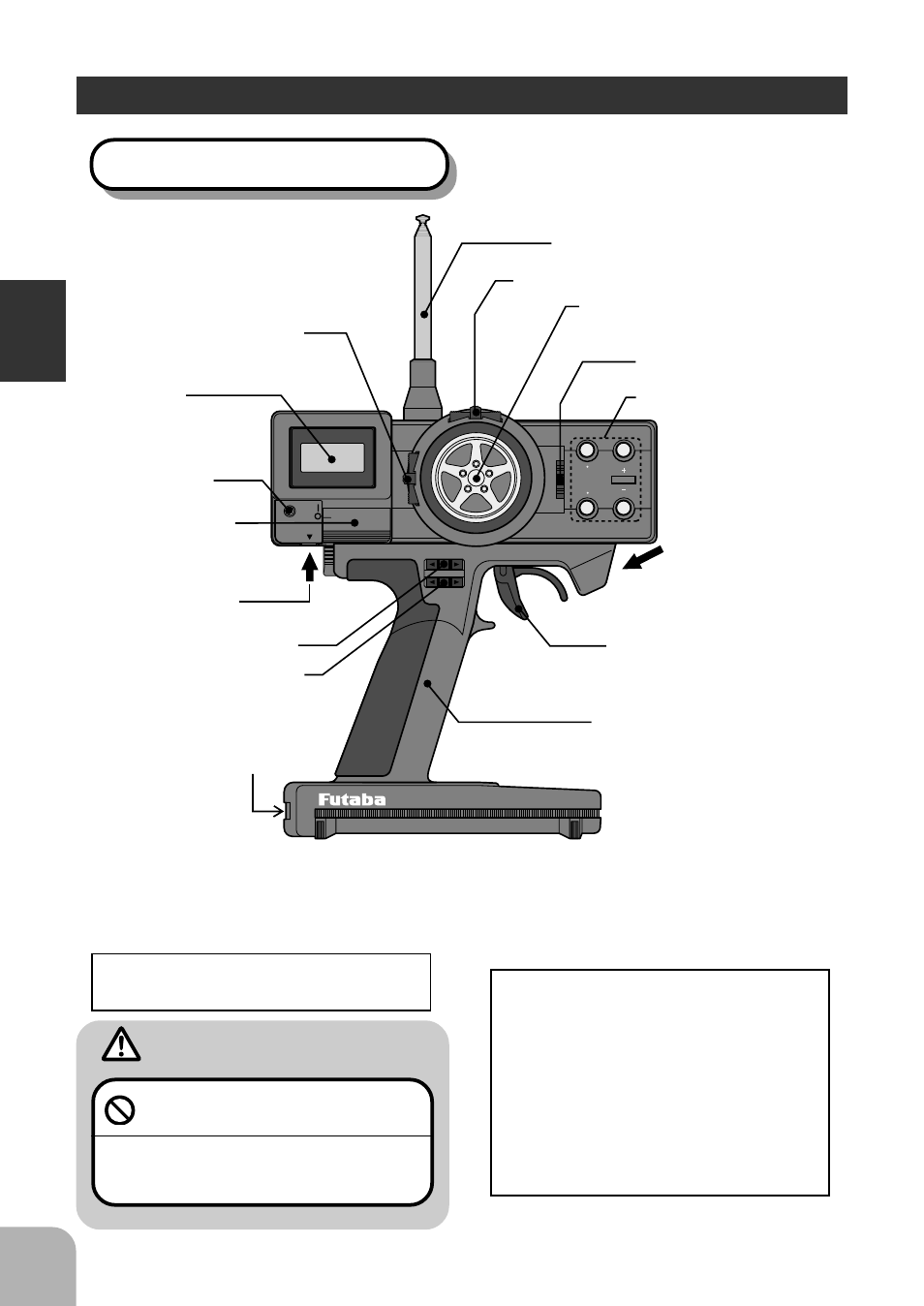

Transmitter T3PDF (Front)
* In the figure above the levers are shown in the neutral position.
Charging Jack
This jack is used to charge Nicad bat-
tery when used.
Caution
Never charge a dry cell type (Non-
Nicad) battery.
Charging a non nicad type battery may damage the
transmitter, and could cause the battery electrolyte
to leak and cause additional damage.
Mechanical ATL
The throttle trigger travel can be ad-
justed to limit the brake stroke.
-Adjustment Method
When the screw is turned clockwise
the brake stroke will become shorter.
When the screw is turned counter
clockwise the stroke becomes longer
as shown in the figure above.
MODE
RESET
SELECT
MULTI FUNCTION DISPLAY
DOT MATRIX
CHARGE
POWER
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
Antenna
Steering Trim
Steering Wheel
Channel 3
Lever
Edit Keys
Mechanical ATL
Adjustment Hole
Throttle Trigger
Grip Handle
Body Rest
Mounting Hole
Steering D/R Lever
Throttle ATL Lever
Power Switch
Charging Jack
LCD
Screen
Power LED
Throttle Trim
