Description of Functions
3PDF Description of Functions

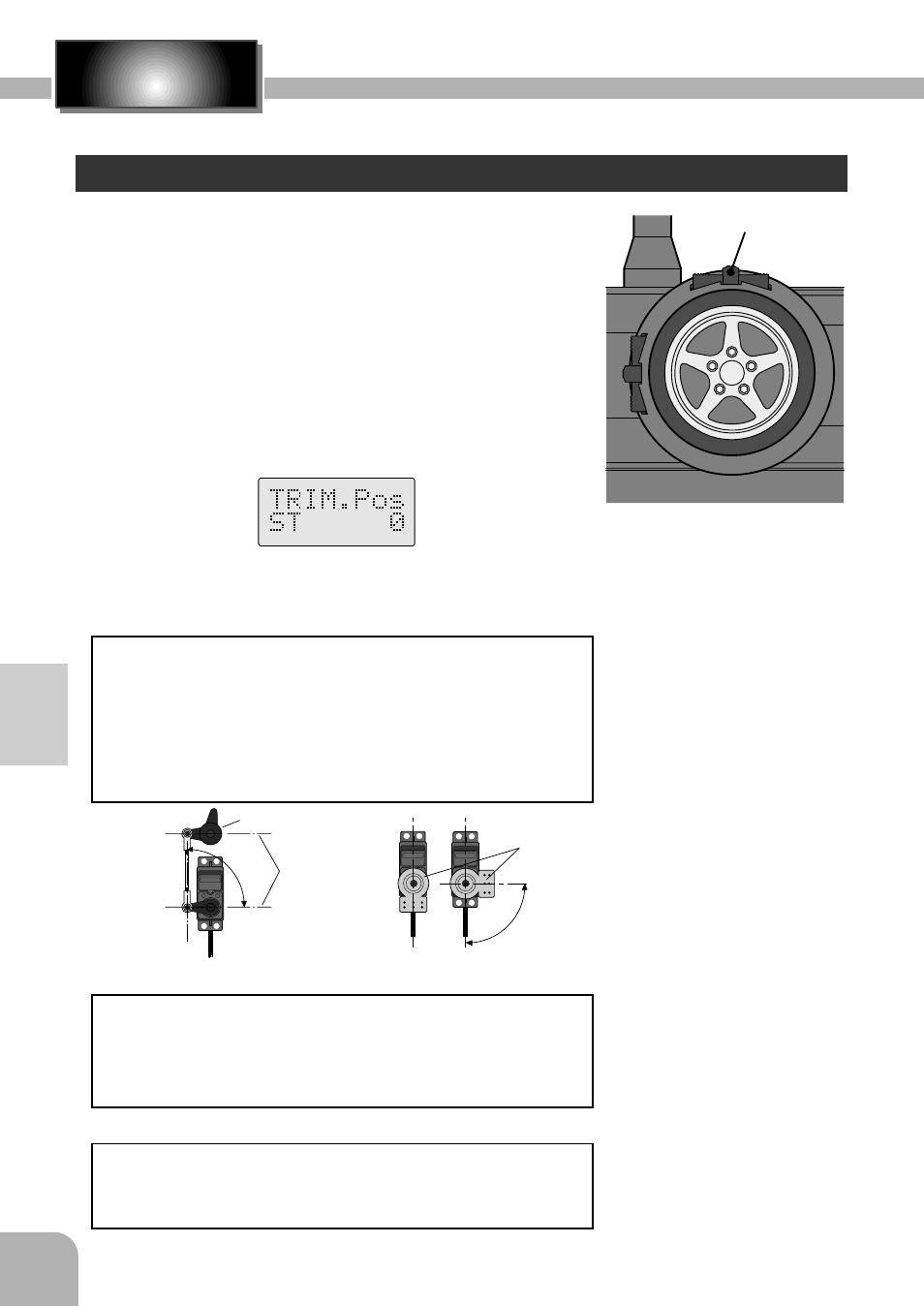

Steering Trim
The steering neutral position can be adjusted by moving
the steering trim lever to left or right.
Use this function to make your model run in a straight
line.
1
At the initial screen where the Model number and
Voltage are displayed the Steering Trim setting
can be viewed by pressing the Trim lever to the
left or right. If the Steering trim is not operated
for 5 seconds the display will return to the initial
screen.
-When the SYSTEM MODE GROUP is displayed the steering trim posi-
tion will be displayed.
Racers Tip
Adjust the servo horn and linkage so they are parallel. If
you are using a servo saver be sure the Steering trim is as
close to neutral as possible. Check the transmitter steer-
ing trim and be as close to 0 as you can. Also check the
instruction manual of the model this system is to be in-
stalled in for the correct servo position.
Trim Operation and Maximum Travel
Trim adjustments will change the servo movement
range. When you make large trim adjustments recheck
your maximum servo travel. (Steering ATV Right side
and Left side)
When Trim Adjustments are Large
When the trim adjustments have caused the neutral to
shift considerably to the left or right you may need to
readjust the linkage.
Steering Trim
Lever
90
Servo Saver
Parallel
90
Direct Servo
Saver Horn
