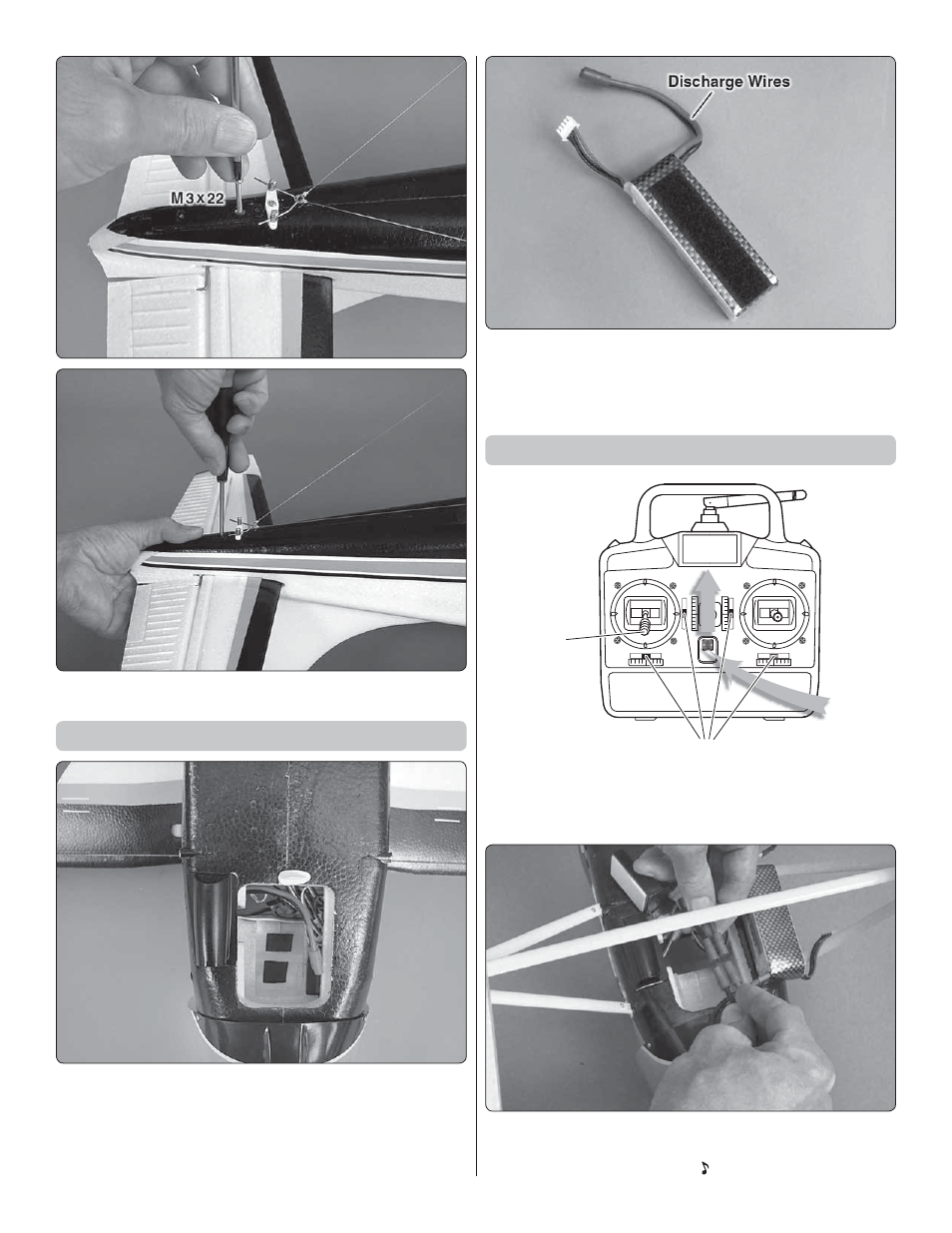

5. Secure the stab and fi n with the M3x22 screw.

Install the Battery

❏

1. Cut two 1" [25mm] strips from the rougher, “hook” side

of the included adhesive-back hook-and-loop material. Apply
the strips inside the fuselage where shown and press them
down tightly so they adhere.

❏

2. Cut a 3" [76mm] strip from the softer, “loop” side and

attach it to the battery so the larger “discharge” wires will be on
the right side as shown. (This will position the wires opposite
the receiver for a better fi t.)

Hook Up the Rudder and Elevator

Centered

Down

❏

1. Turn on the transmitter, lower the throttle stick all the

way, center the trims and make sure the throttle channel in
your transmitter is in the “reverse” position.

❏

2. Connect the battery to the ESC. If all is working properly,

the ESC will send three, short, electrical pulses to the motor
causing it to chime three times (“ 1- 2-3”) followed by a longer,
