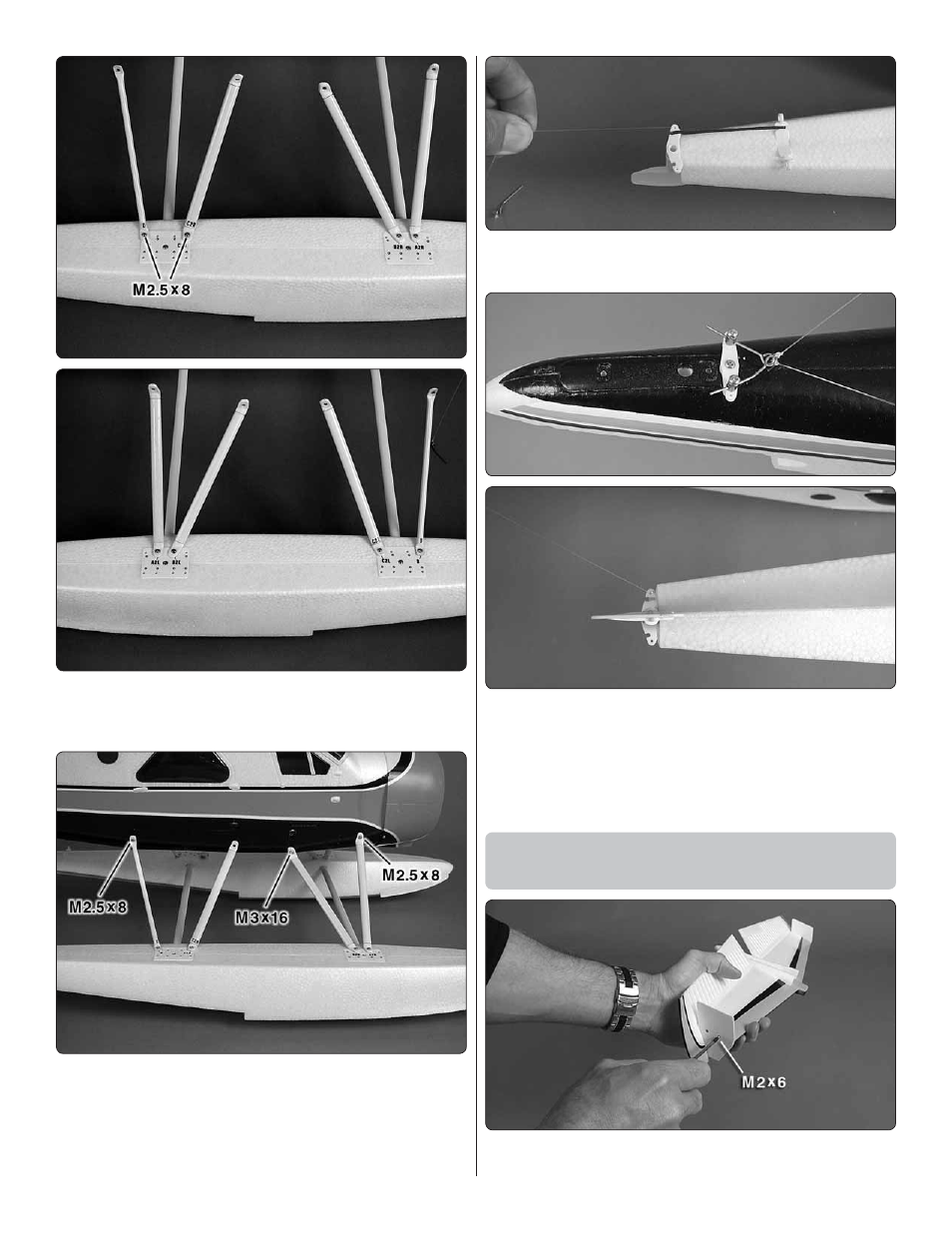

2. Use eight M2.5x8 screws to fasten the braces to the
fl oats, matching the labels printed or molded into the end of
each brace to each mount location on each fl oat.
❏
3. Fasten the fl oat braces to the fuselage with one M3x16mm
screw and two M2.5x8mm screws in each side of the fuselage.
❏
4. Connect a small rubber band to each fl oat and water
rudder as shown.
❏
5. Fasten the wire hooks on the end of each rudder line
to the connectors in the steering arm. As best as you can,
adjust the tension in the lines to center the water rudders—the
rudders don’t have to be perfectly centered, because over
time they may drift anyway, and the rudders are forgiving and
overall water handling is easy.
Mount the Horizontal
and Vertical Stabilizer
❏
1. Fasten the vertical stabilizers to each end of the horizontal
stabilizer (stab) with M2x6 screws.
