Principle
Instruction Manual

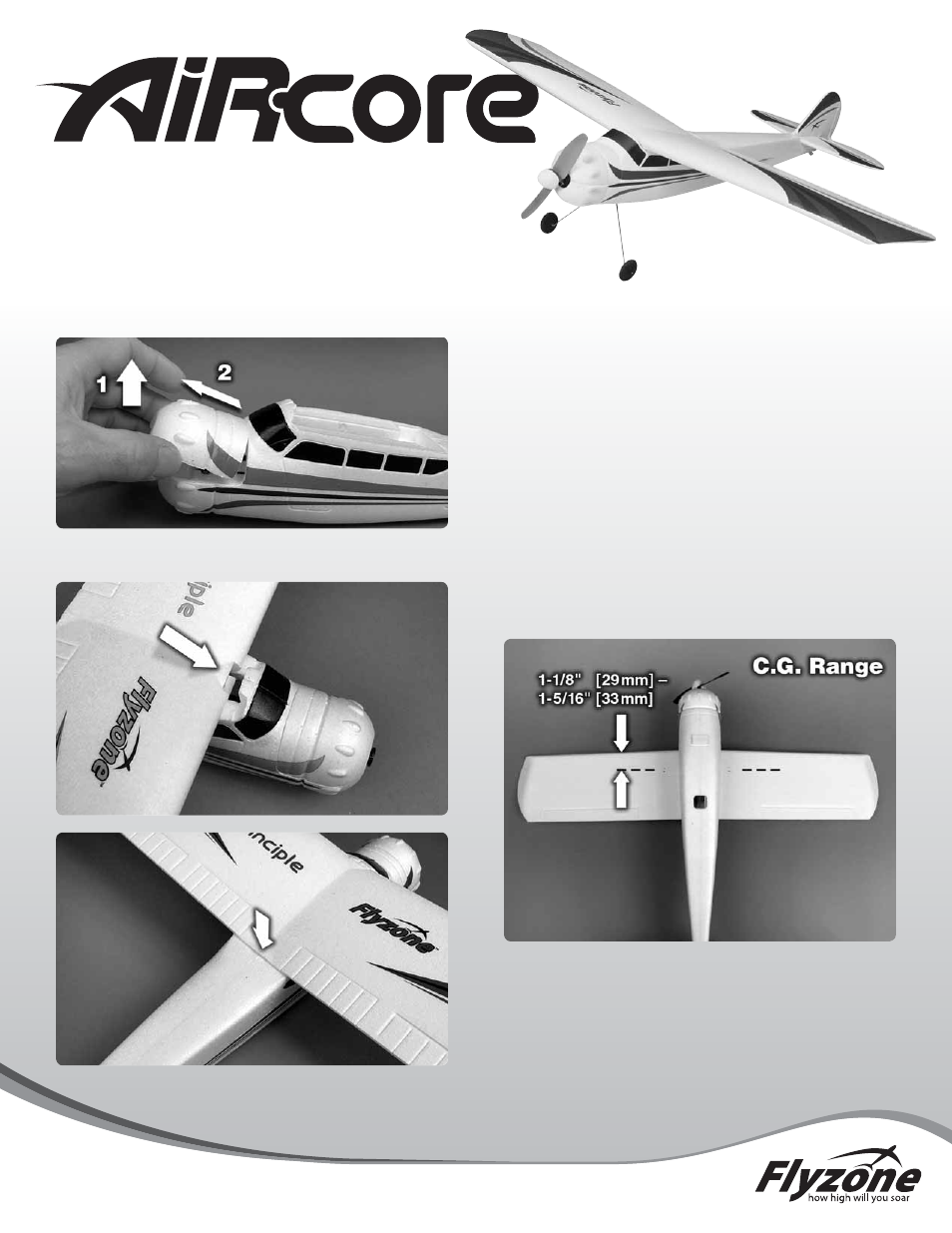

BATTERY HATCH REMOVAL
WING INSTALLATION
REQUIRED
● AirCore Power Core (FLZA6400)
● AirCore Battery (FLZA6401)
● SLT Compatible Radio System
● AirCore 2S LiPo AC/DC Charger (FLZA6411)
FLIGHT SETUP
Because transmitters other than the Tactic transmitters
may be used, the following information is included to
properly set the throws and C.G. (center-of-gravity) on
the AirCore Principle.
The measurements are taken at the widest part of the
control surface.
Rudder Throw 1/4 in [6 mm] 24 deg. Left and Right
Elevator Throw 9/32 in [ 7 mm ] 15 deg. Up and Down
CG Location on the Wing 1-1/8" [29mm] – 1-5/16" [33mm]
from the leading edge, on the bottom of the wing.
