10
❏

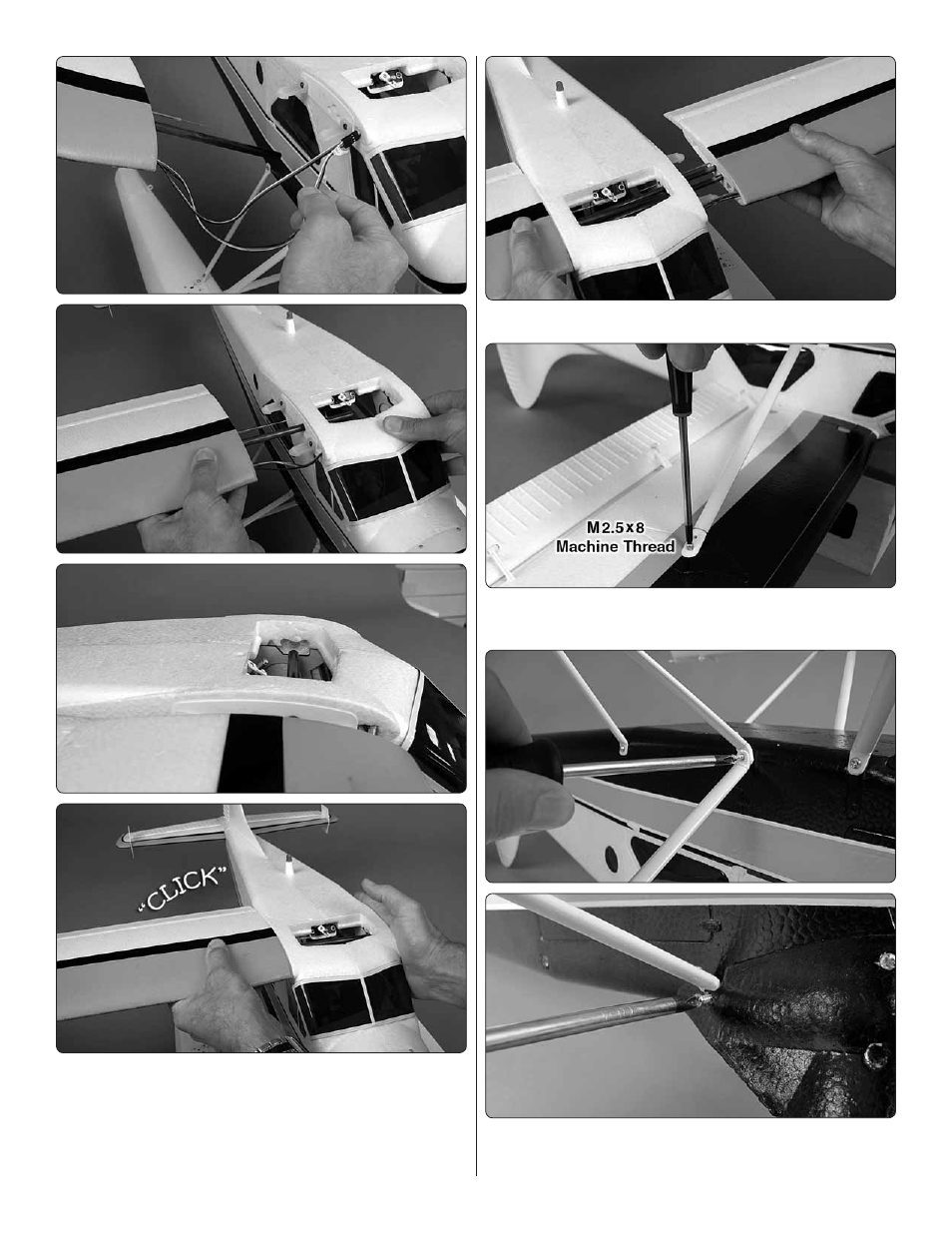

2. Guide the wires from the right wing into the fuselage, then
slide the wing joiner tube and the fl ap pushrod wire through
the corresponding holes. Also guide the fl ap pushrod wire into
the screw-lock connector on the fl ap servo. Guide the joiner
tube through the hole in the left side of the fuselage, then
tightly “CLICK!” the wing onto the wing clips.
❏
3. Mount the left wing the same way.
❏
4. Mount the top of each wing strut to the wing with a
M2.5x8 machine-thread screw.
❏
5. Mount the bottom of each strut to the fuselage over the
fl oat strut (or over the main landing gear) with a M3x16 screw.
