Flyzone FLZA4022 User Manual
Page 7
7
❏

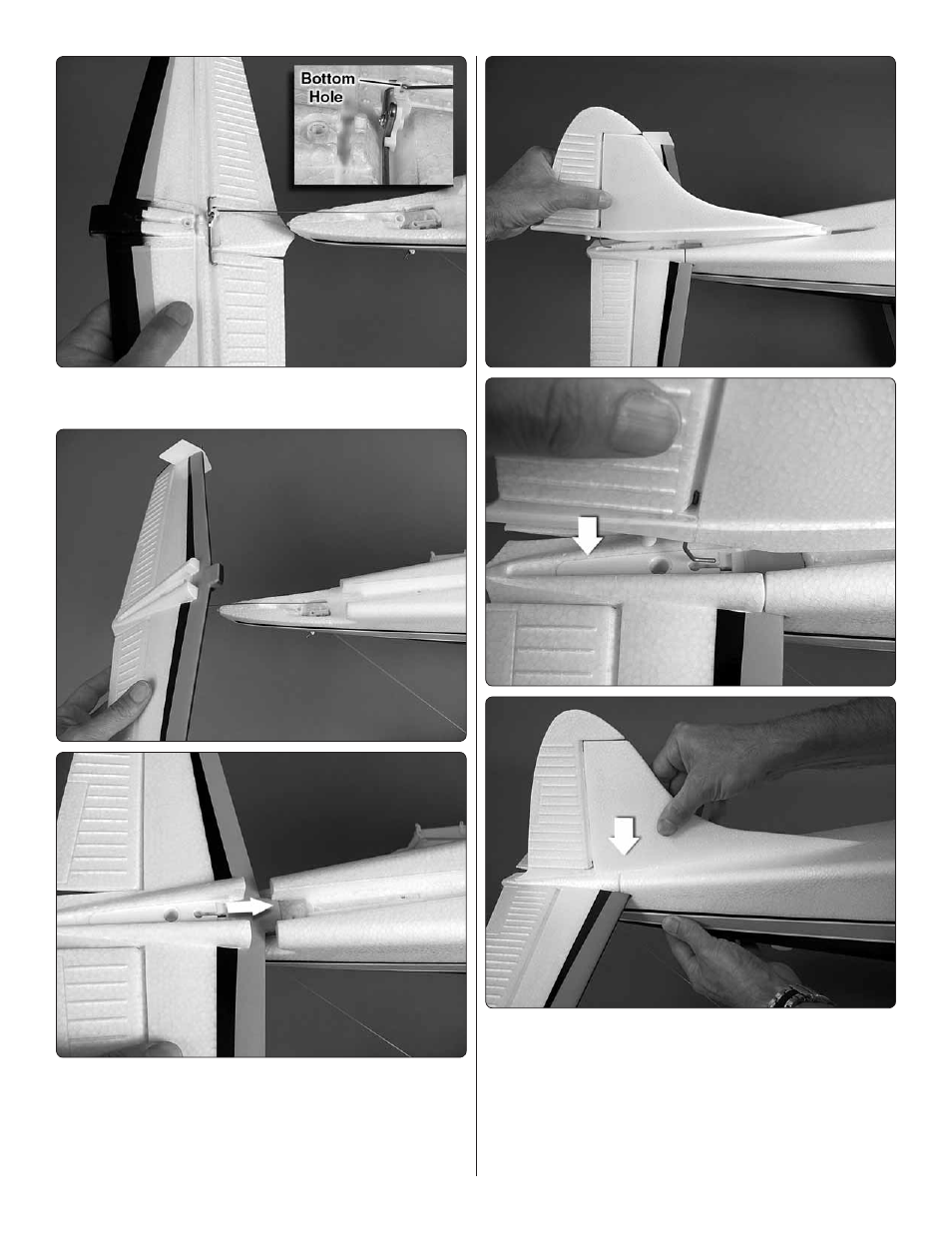

2. Connect the elevator pushrod to the bottom hole in the
elevator horn as shown.
❏
3. Rotate the stab upward and key it into the fuselage.
❏
4. Key the rudder torque rod down into the receptacle while
fi tting the vertical stabilizer (fi n) into the fuselage. Tightly press
the assembly down into position.
