FlintWeigh Technical Manual, Rev. 3.03 November 2011 Page 11 of 32
4.7. Descriptive Plate
The descriptive plate has to be placed on the weighing terminal’s enclosure. It must coincide with the digital
descriptive plate within the FlintWeigh II software.
The descriptive plate supplies following information:
► Owner and number of the EC type approval
► Version no. of the software incl. revision no./ check sum
► Serial no. of the built-in weighing system controller
► Type and serial no of the LDUs
► Year of manufacture
► Traceable access counter (TAC)
► Metrological symbol “M”
► Interval, min.load and max. load of the scale

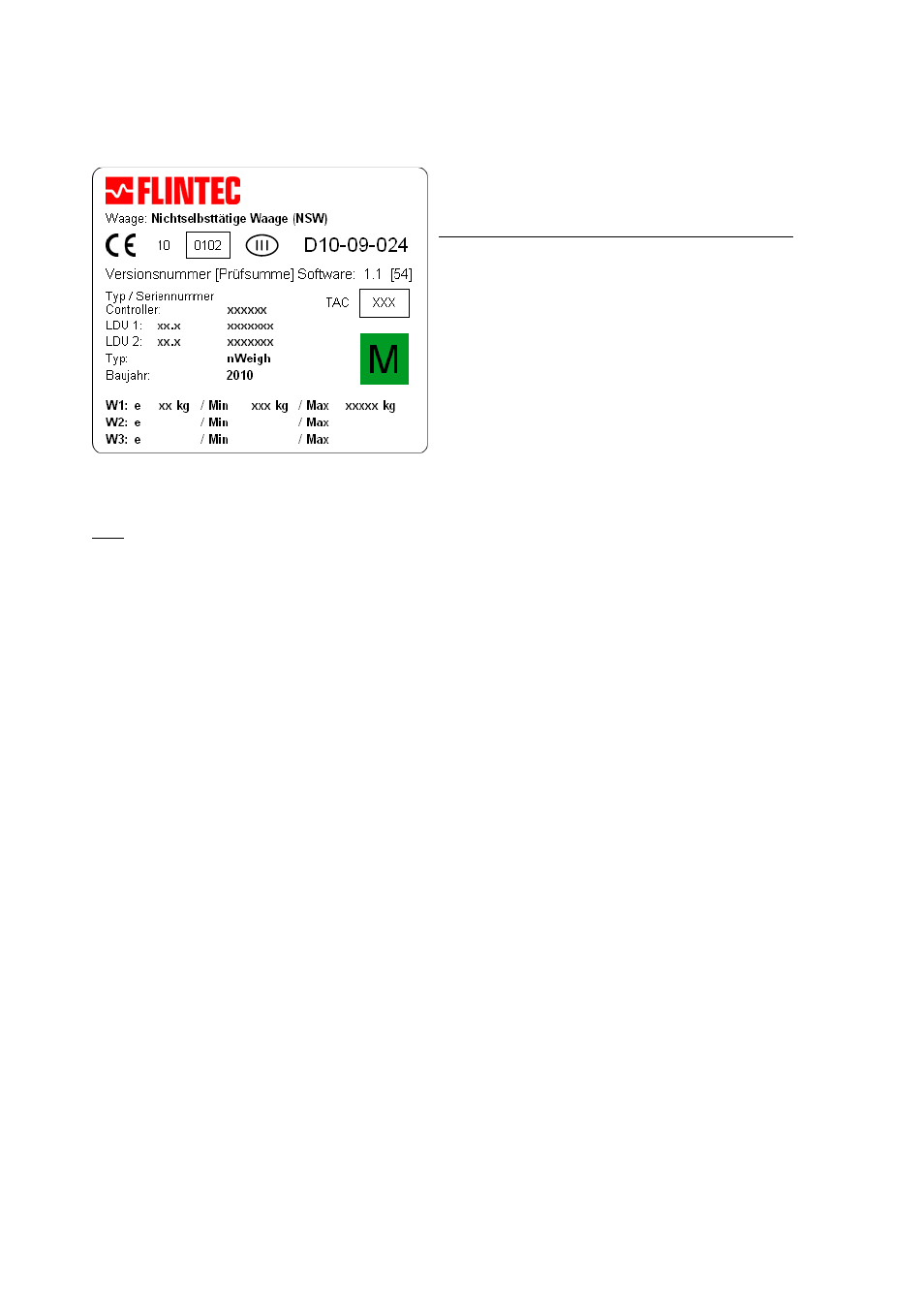

Fig. 4.7: Descriptive plate of the weighing terminal
Hint: You can find a template for the scale’s descriptive plate in RTF format on the Flintec CD-ROM.
