Air Slipper ® Side Skirt

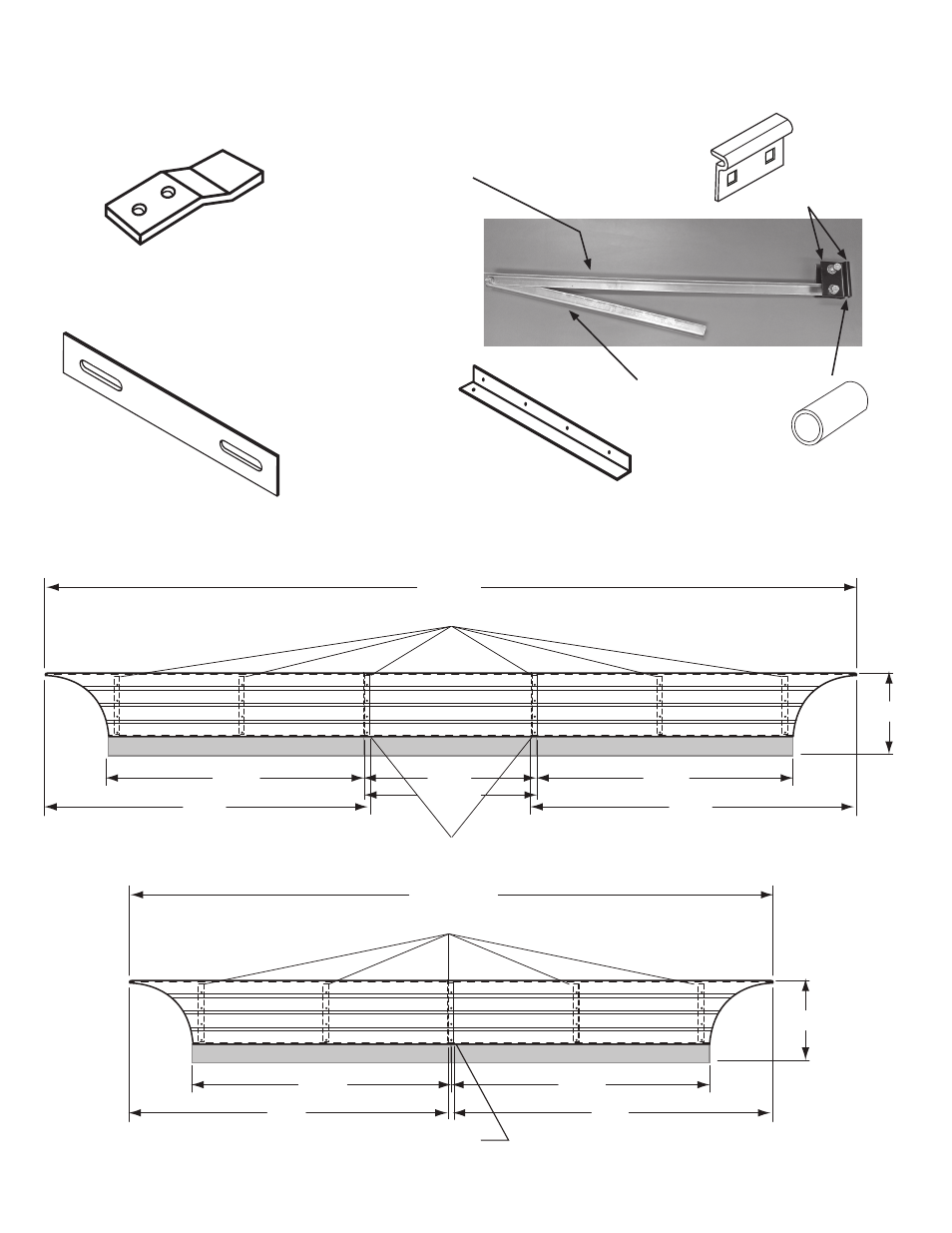

Component Parts
Cross
Member Clamp
(034-02262)
Steel Flange Stiffener
(034-02263)
Galvanized Steel
Support Pipe
(034-02264)
Galvanized Steel
Vertical Stiffener
(034-02265)
Hold-down Clamp
(051-00002)
92.00"
10.00'
92.00"
10.00'
HEIGHT*
5' - 4.00"
64.00"
25.00'**
PANEL SUPPORT MOUNTS
PANEL OVERLAPS
PANEL OVERLAP
10.00' 10.00'
HEIGHT*
19' - 10.00"**
PANEL SUPPORT MOUNTS
92.00"
92.00"
1” White
Plastic Spacer
(034-02302)
www.fleetengineers.com
Panel Support Mount
(pre-assembled)
