Stop/Rear Turn Signal Lamp
1. Open the trunk lid.
2. Remove the tail lamp housing beauty cover by grasp-
ing the top edge and pulling rearward to expose the
tail lamp housing bolts.
3. Remove the tail lamp housing bolts
4. Pull the tail lamp housing directly rearward to dis-
lodge the two out bored ball studs from the socket
fasteners.

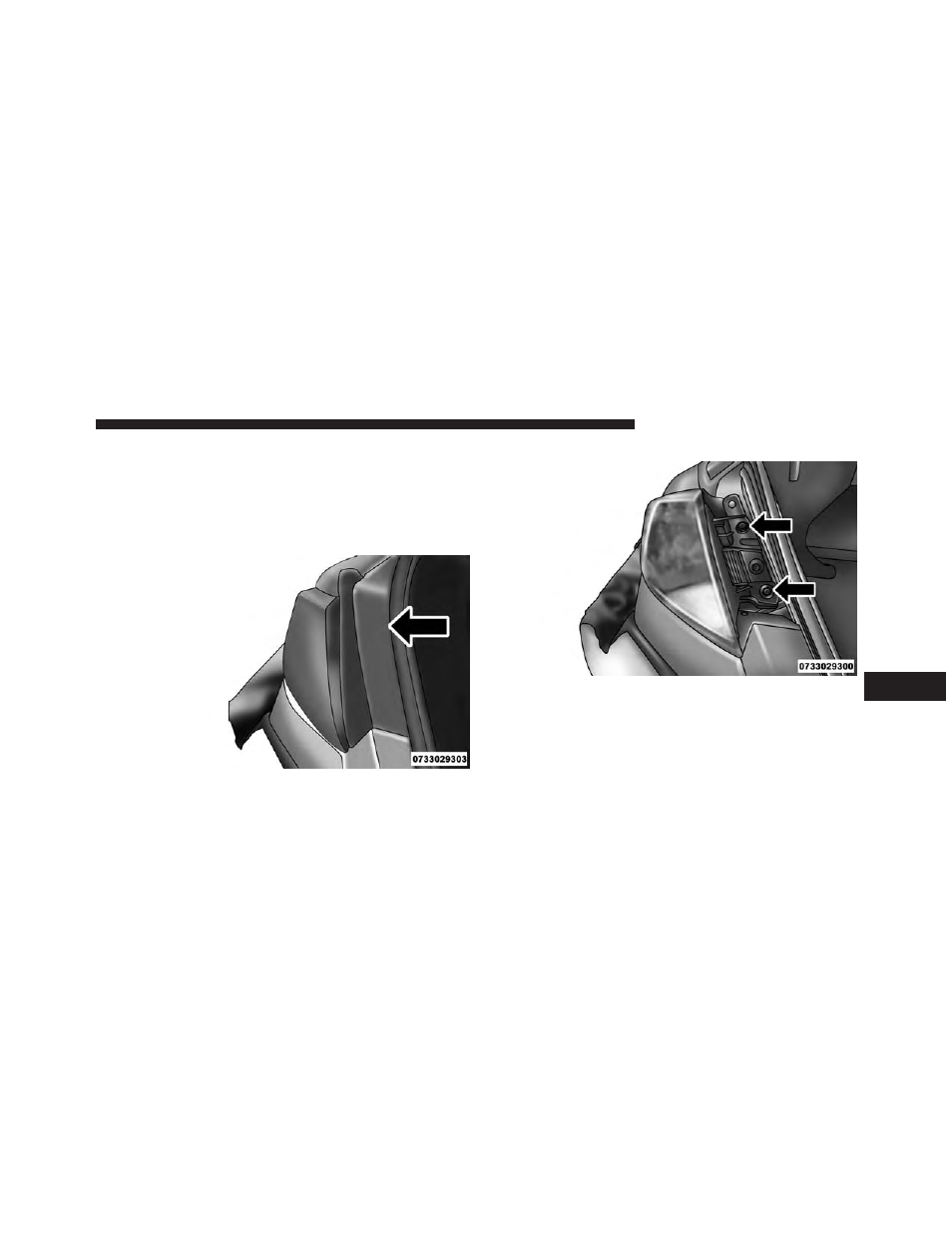

Tail Lamp Beauty Cover
Tail Lamp Bolts
7
MAINTAINING YOUR VEHICLE 645
