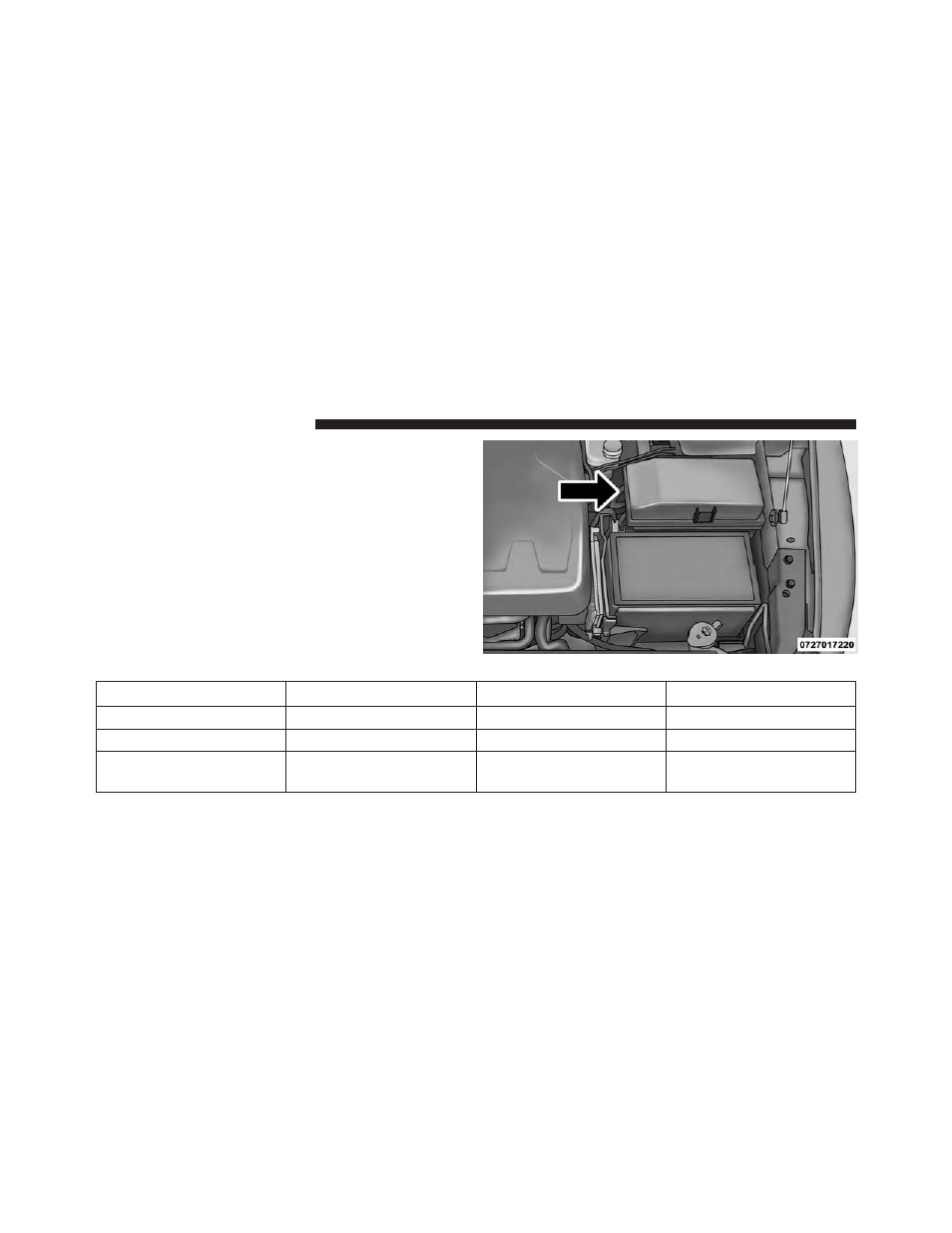

Power Distribution Center (Fuses)
The Power Distribution Center is located in the engine
compartment near the battery. This center contains car-
tridge fuses, mini-fuses and relays. A label that identifies
each component is printed on the inside of the cover.
Cavity
Blade Fuse
Cartridge Fuse
Description
F06
–
–
Not Used
F07
–
–
Not Used
F08
25 Amp Clear
–
Engine Control Module
(ECM) / Fuel Inj.
Power Distribution Center
