Playback on a TV without AudioA^ideoInputs

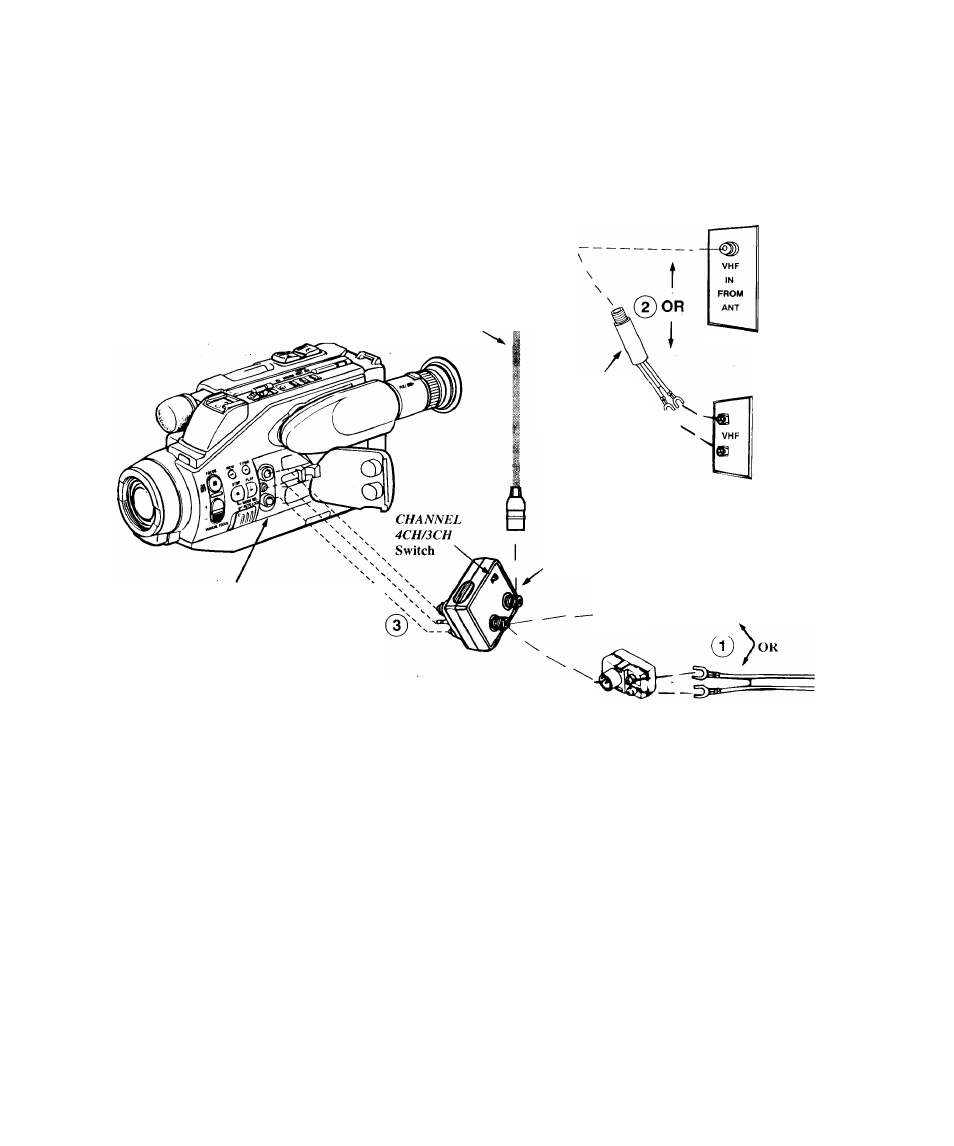

To connect your camcorder to a TV without audio and video inputs, you need an optional CRF800 RF output
adapter and coaxial RF cable as shown.

=QD

Optional Coaxial %
RF Cable*

(such as AH065G
or AH066G)

Back of TV

Output Jacks
(Located behind door)

Optional 75-300
Ohm Transformer*
(such as AHOI 1)

Back of TV

(

) Optional CRF800

RF Output Adapter*

HID)

VKh’ Antenna

Optional 300-75
Ohm Transformer*
(such as 193983)

VHF’ Antenna

Installation

(j^ Disconnect the VHP antenna from your TV.

Connect the antenna to the VHF IN connector on
the optional CRF800 RF output adapter if you
leave the adapter connected to the TV.

Note: If your VHF antenna is the flat twin-lead type
attached by two screws, you will need an optional
300-75 ohm transformer, such as 193983.

(^Attach one end of the coaxial RF cable to the

VHF OUT connector on the RF output adapter

and the other end to the VHF input on your TV.

Note: If your TV has screw terminals, you may need
an optional 75-300 ohm transformer, such as AHOl 1.

(^Attach the RF output adapter’s plug to the

output jacks located behind the door on the side
of the camcorder.

*Optional accessories are available from your dealer or electronics supply store. Mail order form is on page 5.
