NOTE: See PARTS AND FEATURES lor
belt #.

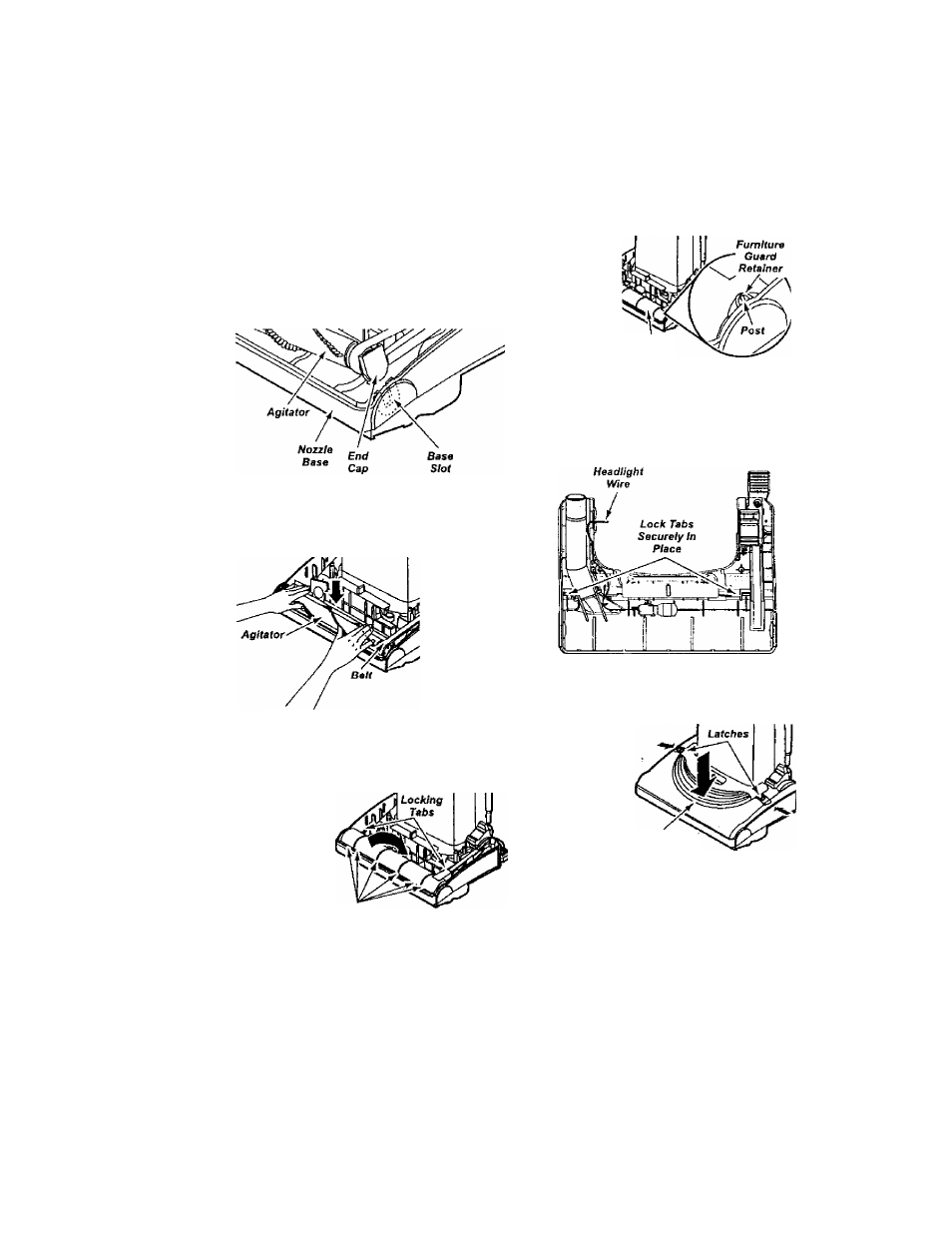

Loop the other end of the belt on the belt
pulley on the agitator.
Insert the agitator by placing the rounded
portion of the end cap down into the slot in
the nozzle base,
NOTE: It may be necessary to hold the fur
niture guard out of the way in order to allow
proper insertion of the agitator into the noz
zle base.
NOTE: Care must be taken due to the
belt tension during reassembly.
Press firmly,
checking to
see that
each end is
completely
inserted.
Check to see that the belt Is centered on
the belt pulley. Turn the agitator with your
fingers to see that it turns freely.
To re-attach
the agitator
cover, insert
the six (6)
tabs into the
six slots
along the
front edge of
the nozzle
base.
Tabs/
Slots
Lower the agitator cover to its original posi
tion. After positioning the agitator cover,
push forward on the two (2) locking tabs in
order to ensure that they are secureiy in
place.
Re-fasten the
furniture
guard retain
ers to the
posts on both
sides of the
agitator
cover.
Agitator
Cover
NOTE; If the agitator cover is not installed
correctly, you may experience a loss of per
formance and possible agitator vibration,
etc.
Make sure the headlight wires are lucked
securely in place.
Replace the
nozzle cover
and secure
the latches.
Nozzle Cover
