Enabling and Disabling Link/Seg Traps 4-5
Link/Seg Traps

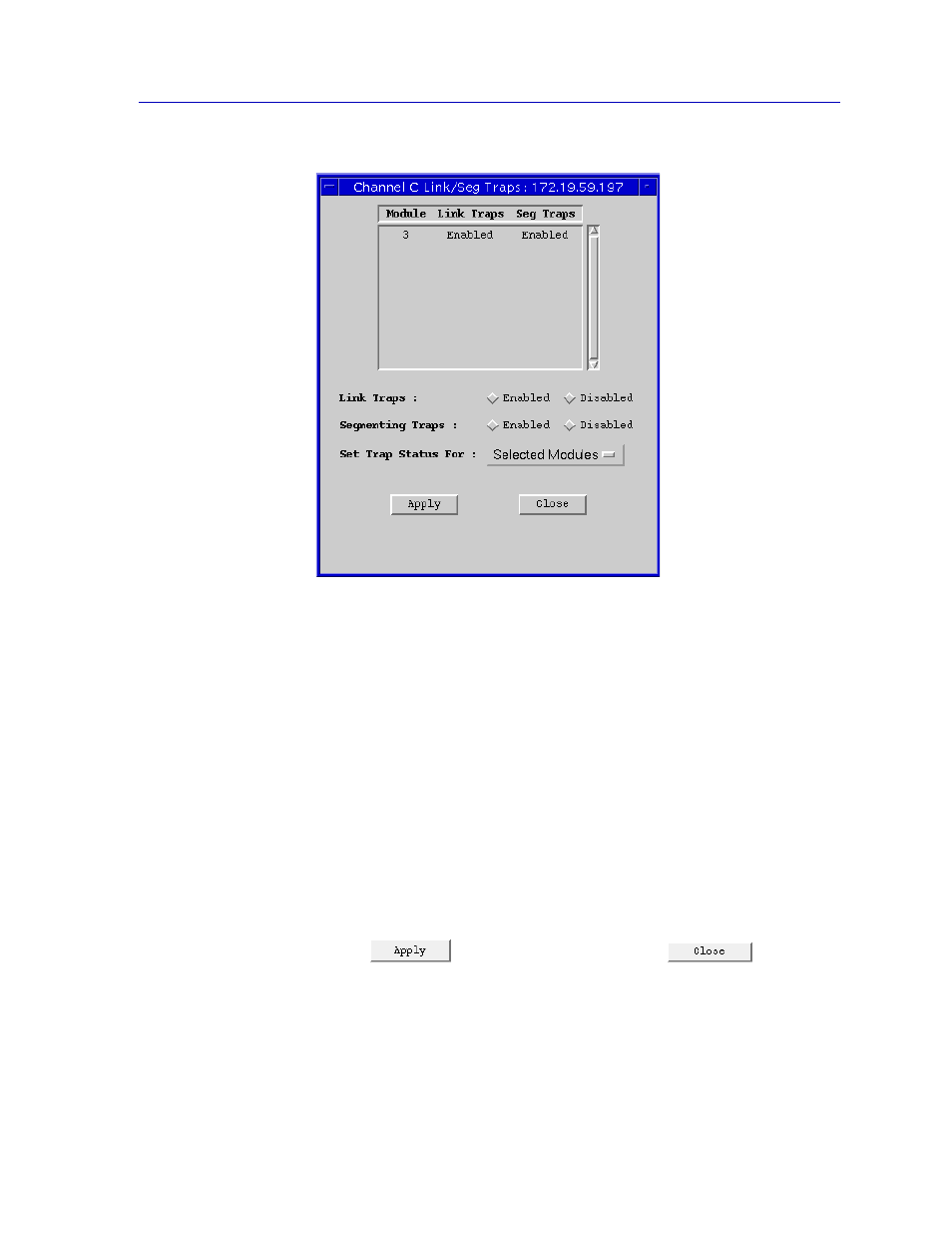

Figure 4-3. The Module Traps Window
3. In the Module Traps window, click mouse button 1 to select the module for
which you wish to configure link and segmentation traps. If the Set Trap
Status For field displays
Selected Modules (the default setting), you can click
to select any modules; to de-select any highlighted module, click on it again. If
the selection
All Modules is displayed in the Set Trap Status For field, all
available modules will be automatically selected; if you de-select any module,
the Set Trap Status For field will automatically revert to the
Selected Modules
setting. To change the setting in the Set Trap Status For field, click mouse
button 1 on the currently displayed setting, and drag down to select a new
setting.
4. Click on the appropriate selection in the Link Traps field to Enable or Disable
link traps for the selected modules, as desired.
5. Click on the appropriate selection in the Segmenting Traps field to Enable or
Disable segmenting traps, as desired.
6. Click on to save your changes; click on to exit the
window.
