Using the EMM-E6 Hub View
2-2 Using the Hub View
Navigating Through the Hub View
Within the Hub View, you can click mouse buttons in different areas of the
window to access various menus and initiate certain management tasks. The
following diagrams describe the information displayed in the Hub View and
show you how to use the mouse to display the Device, Network, Module, and
Port menus.

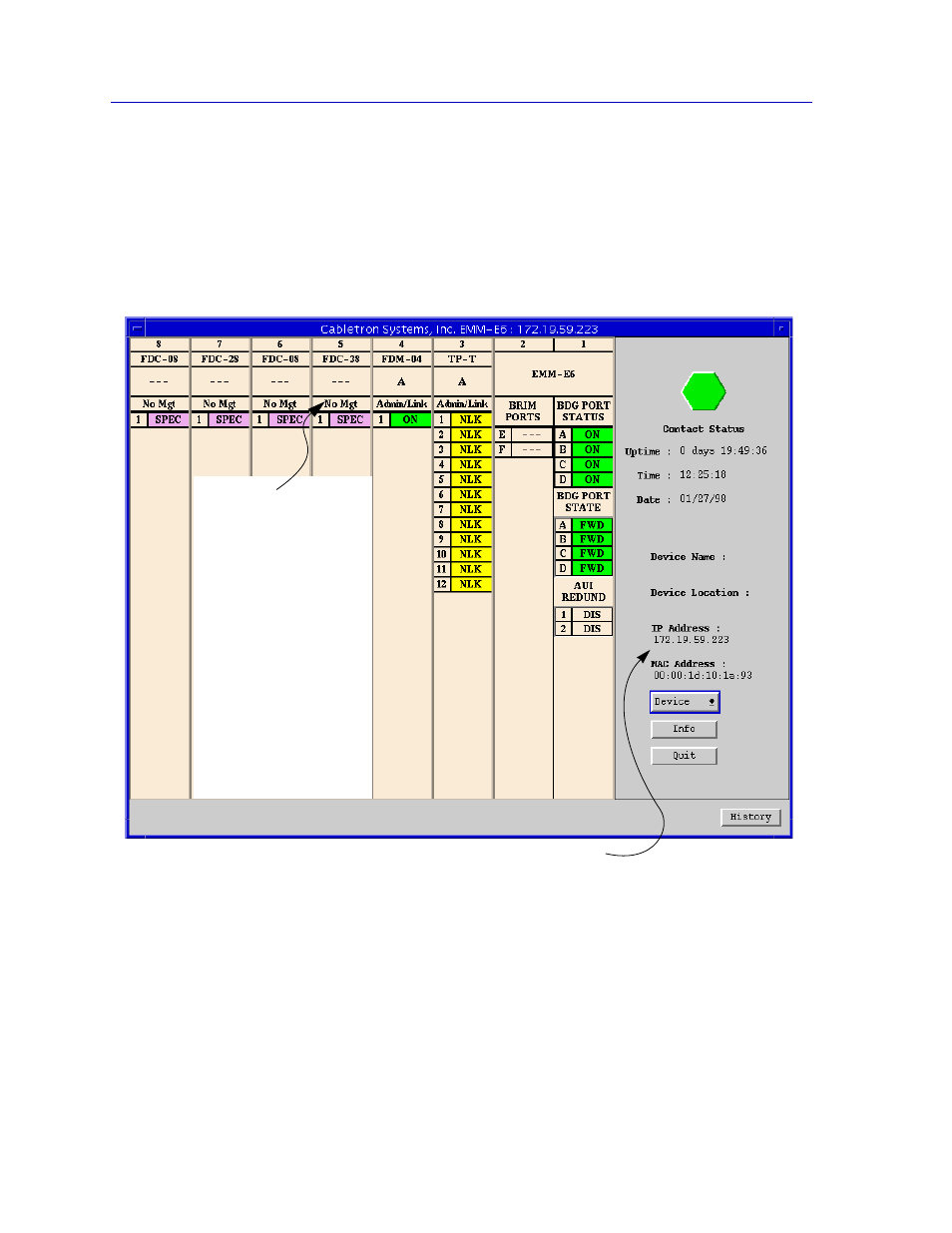

Figure 2-1. EMM-E6 Hub View
Hub View Front Panel
In addition to the graphical display of the modules, the Hub View gives you
device level summary information. The following Front Panel information
appears to the right of the module display in the Hub View:
Front Panel
Device summary information
No Mgmt
Depending on the
version of firmware
installed in your
EMM-E6, certain MIMs
either may not display
at all, or may display
with the message “No
Mgt” in the Port Display
Form box. For more
information about the
specific capabilities of
different versions of
EMM-E6 firmware,
contact the Cabletron
Systems Global Call
Center.
