7

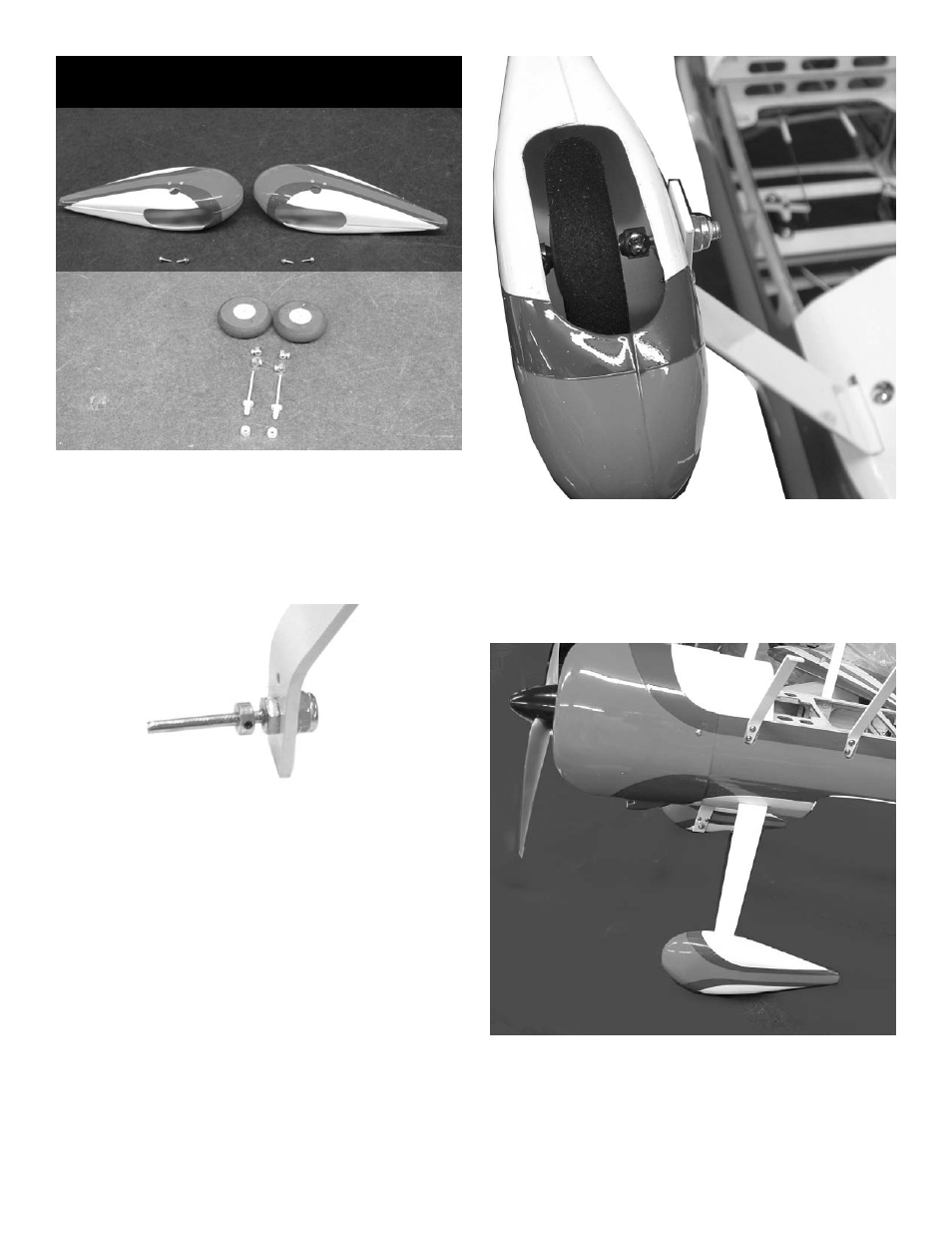

Wheel Pants
1. Collect the following items.
(2) wheel pants
(4) #2 x1/4” screws
(2) axles
(2) axle nuts
(4) wheel collars
2. Install the axle in the gear leg and secure with
locking nut on the back side.
3. Slide the wheel pant over the axle with the
wheel inside. Fit the outer wheel collar in
place through the wheel opening. The large
hole on the inside of the wheel pant should fit
over the flange on the axle so the wheel
pant is flush against the landing gear leg.
4. Install the two #2 x 1/4” screws through the
landing gear leg into the wheel pants.
