12

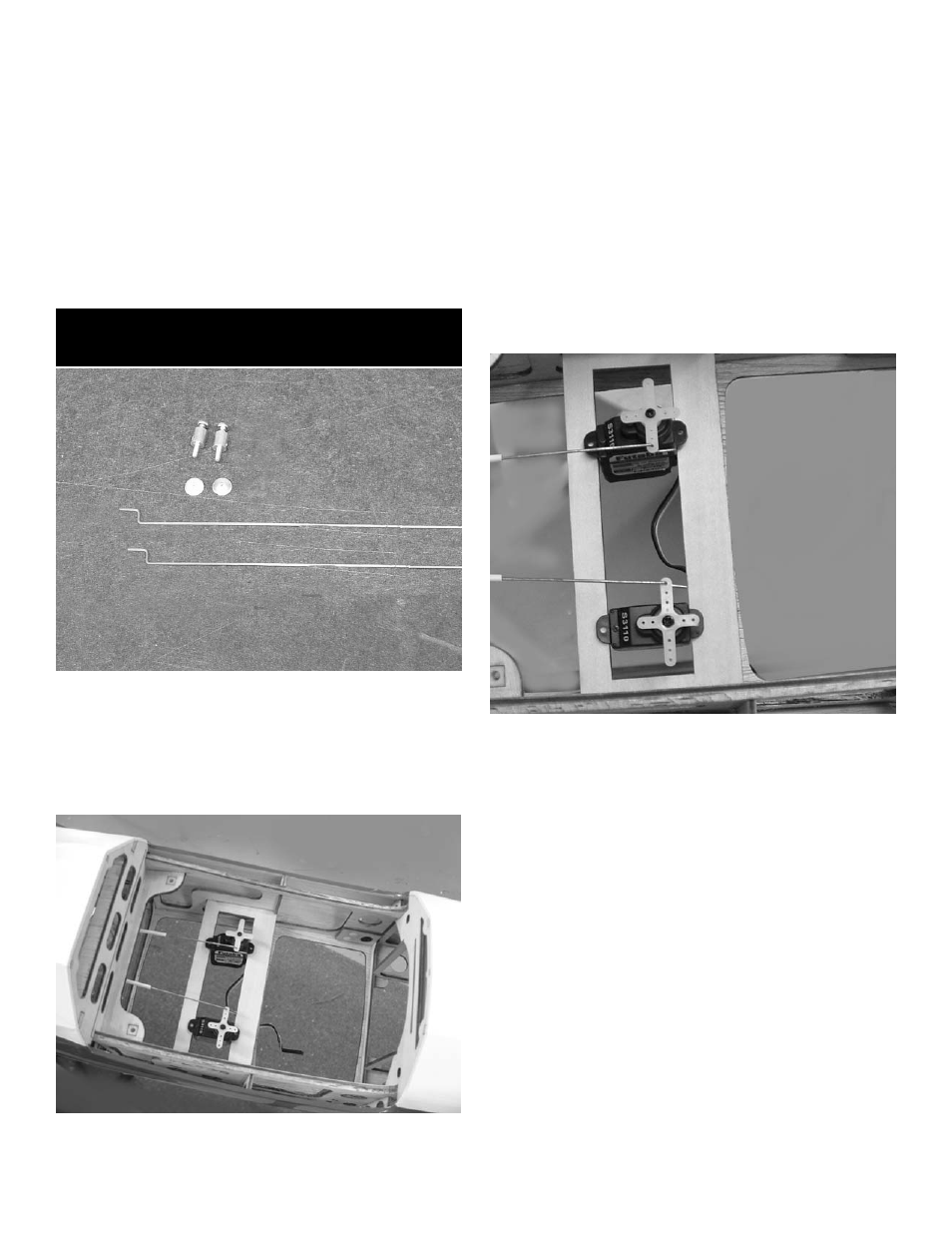

1. Collect the following items:
(2) servos with hardware(not supplied)
(2) 1/32” x 24”
(2) pushrod connectors
7. Install the rudder on the hinges as we did with
the elevators and aileron. Move rudder fully
in one direction and make sure to hold it tight
against the fin. Apply Ultra Set thin CA to
each hinge. Move the rudder in the other
direction and apply glue to the hinges on the
other side.
8. Install the elevator control horn on the right
elevator in the holes provided.
Servo Installation
1. Center your servo with the control arm in
place and insert the z-bend on the pushrod
into the output arm.
2. Slide the other end of the pushrod into the
guide tube installed in the fuselage and fit
the servos into the opening provided.
3. Let the pushrod and servo arm align the
servo in the opening so there will be no
bending of the pushrod between the servo
arm and the guide tub.
4. Drill a 1\16” hole through the servo mounts and
use the hardware supplied with the servo to
mount.
