14

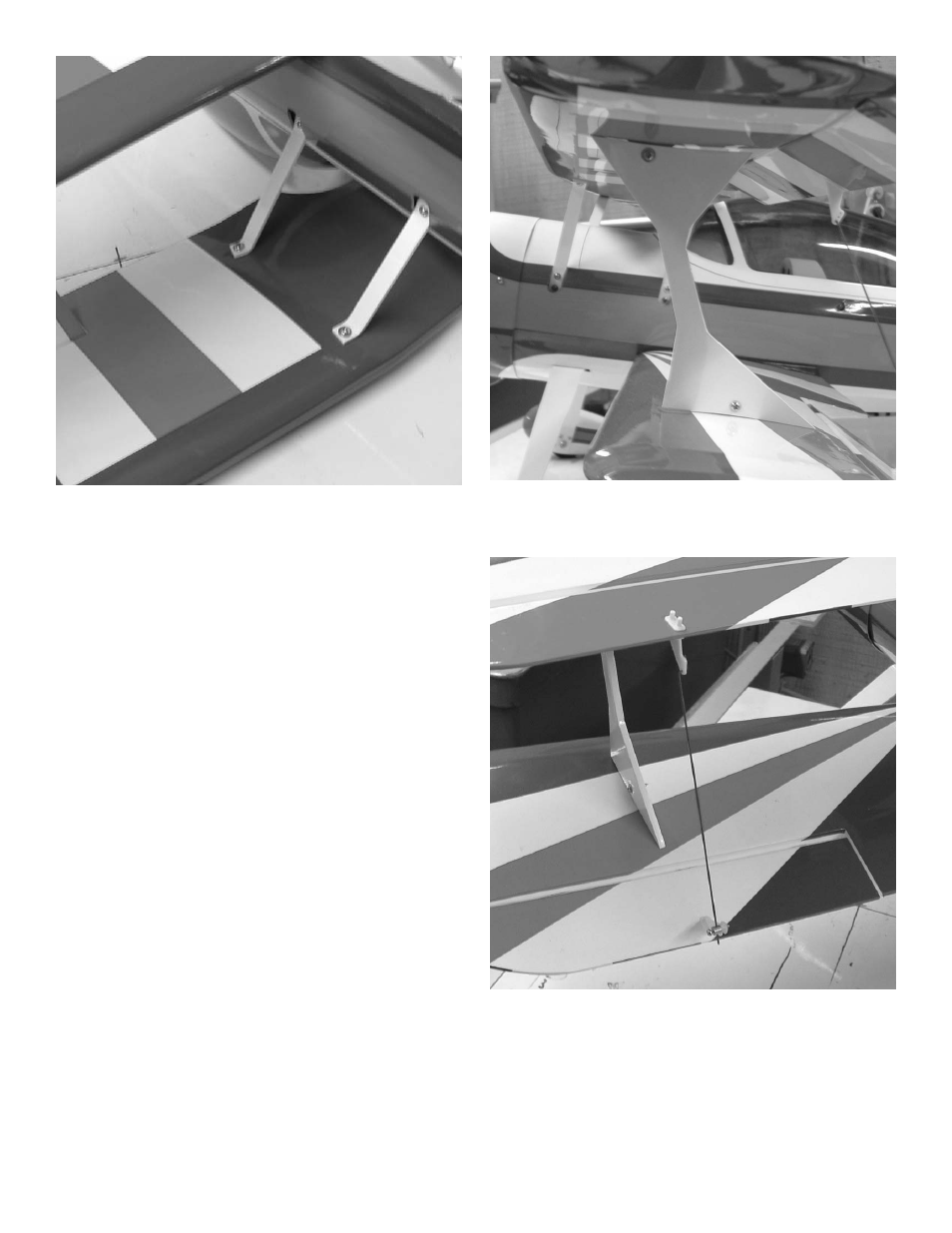

4. Locate the four dimples in the bottom of the top
wing that locate the cabane struts. Drill a 1/16”
hole at each location being careful not to drill
all the way through to the top of the wing.Lay
the wing down upside down and fit the fuse-
lage in place with the holes in the cabanes
aligned over the dimples.
5. Install the four #4 x 1/2” screws to secure the
top wing.
6. Reinstall the bottom wing.
7. Fit I-Struts in placed and install the #2 x 1/2”
screws.
8. Fit the z-bend on the aileron pushrod into the
top aileron control horn. Fit bottom end into
pushrod connector in bottom wing.
9. Center both top and bottom aileron and tighten
set screw in pushrod connector.
