4

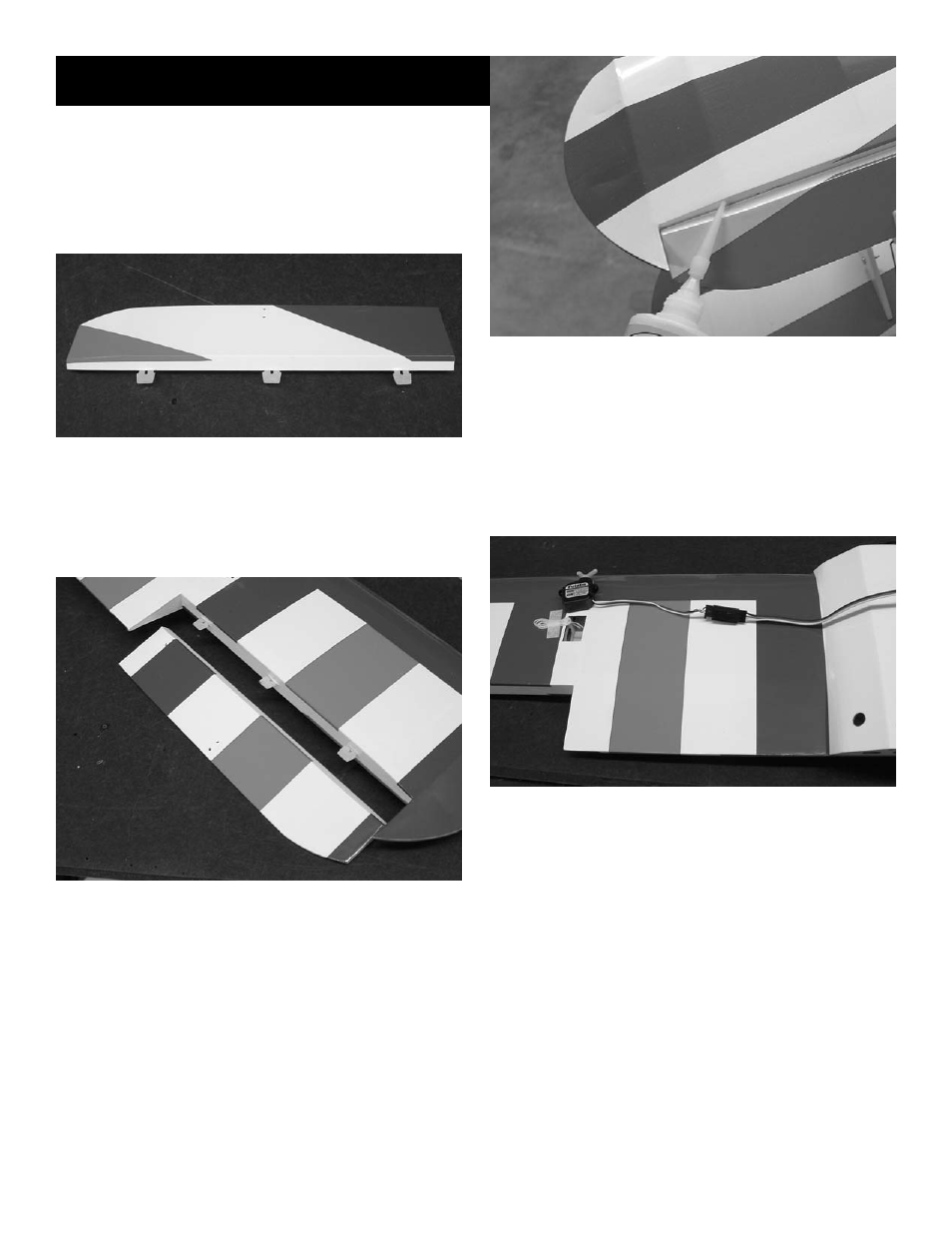

Wing
The wing for the Monster Pitts comes pre-assem-
bled. All that is required to finish the wing is to glue
the aileron hinges in place,install the aileron servos,
control horns and attach the pushrods.
1. Collect the following parts:
(2) top wing ailerons
(2) two bottom wing ailerons
(12) ca hinges
2. Prepare the aileron by trial fitting in place and
making sure the hinges go half into the aileron
and half into the aileron. Push the aileron tight
against the trailing edge of the wing so there
is no gap.
3. When satisfied with the fit, deflect the aileron to
its full throw in one direction and apply a drop
of thin Ultra Set CA glue. Turn the wing over
and deflect the aileron in the opposite direc-
tion and apply a drop of glue on each hinge.
4. Attach a servo extension to the servo.
Depending on the servo you use a 6” will
probably be long enough. Use the string
installed in the wing to pull the wire through
the wing and exit into the center section hole.
