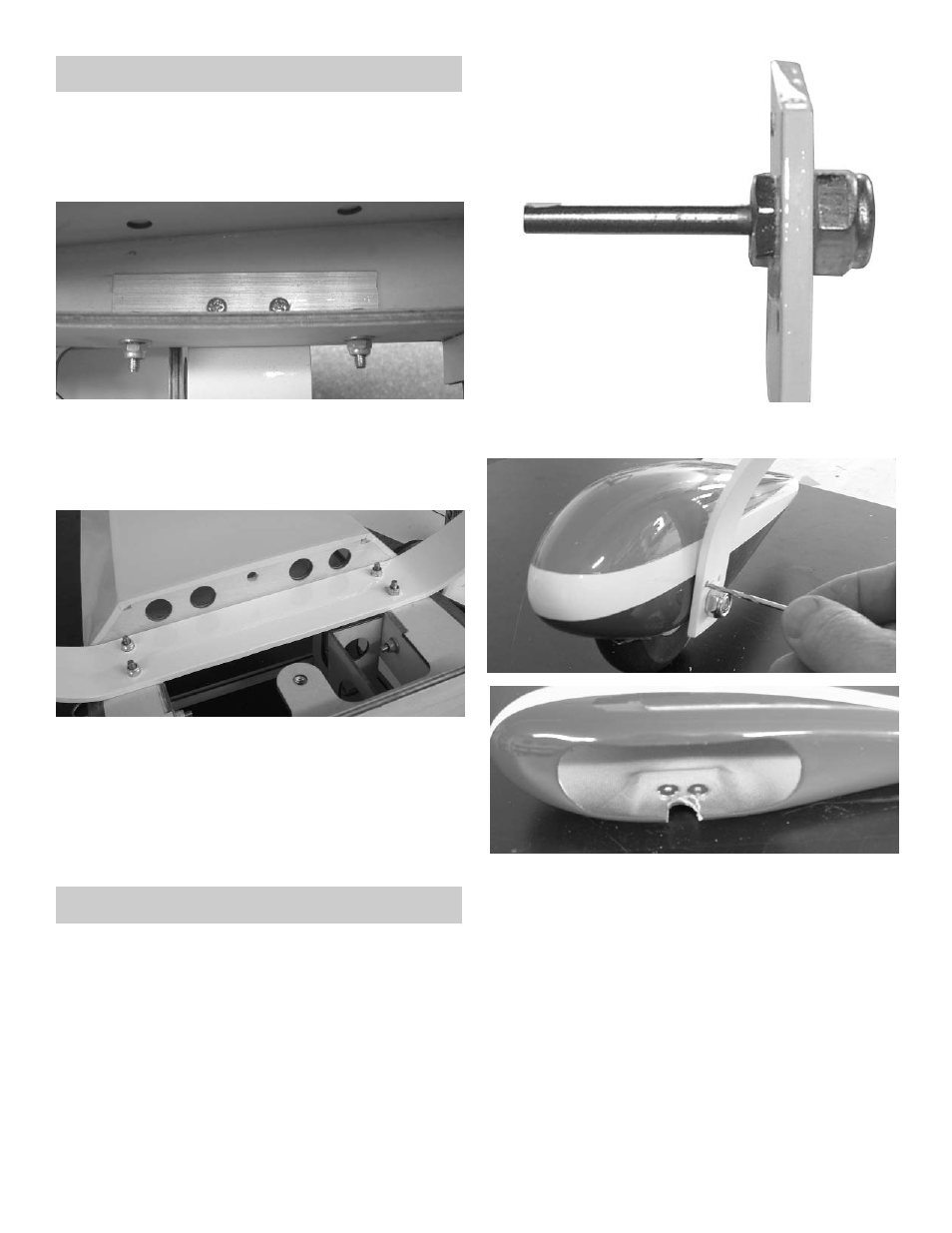

INSTALLING MAIN LANDING GEAR
1. Collect the following items:
(4) 3mm x 15 phillips Head Screw
(4) 3mm Lock Nut
(1) Main Aluminum Landing Gear
2. Remove the landing gear cover from the bot-
tom of the fuselage.
Insert the 3mm x 15 phillips head bolts
through the aluminum mounting brackets on
both sides of the fuselage.
2. Place the landing gear on the fuselage.
Note: the landing gear should curve forward.
Thread the 3mm locking nut on to the bolt and
tighten.
Repeat for the other three bolts
Reinstall the landing gear cover.
WHEEL AND WHEEL PANTS
Collect the following items:
(2) 5-32 x 1-1/4” Axle with Locking Nut
(4) 5/32 Wheel Collars
(4) 4-40 x 1/8” Cup Screws
(4) 4-40 Blind Nuts
(4) 4-40 x 1/2” Button Head Screws
(2) 3-1/4” Wheels
1. Mount the axle to the landing gears.
2. Place the wheel pant onto the axle.
3. Align the bottom of the wheel pant with the
bottom of the landing gear.
4. Mark the hole locations on the wheel pants.
5. Drill 1/8” holes on the marks you just made.
6. Insert the 4-40 blind nuts inside the wheel
pants.
