7 Installer Guide
NOTE: This thermostat ships configured as a 1H/1C conventional
thermostat. Confirm installer settings. See page 10.
UP UP
S1
S2
G
Y1
Y2
A
H
L
C
W1/E
/AUX1
W2/
AUX2
W3/
O/B
RH
RC
C
W1/E
/AUX1
S2
G

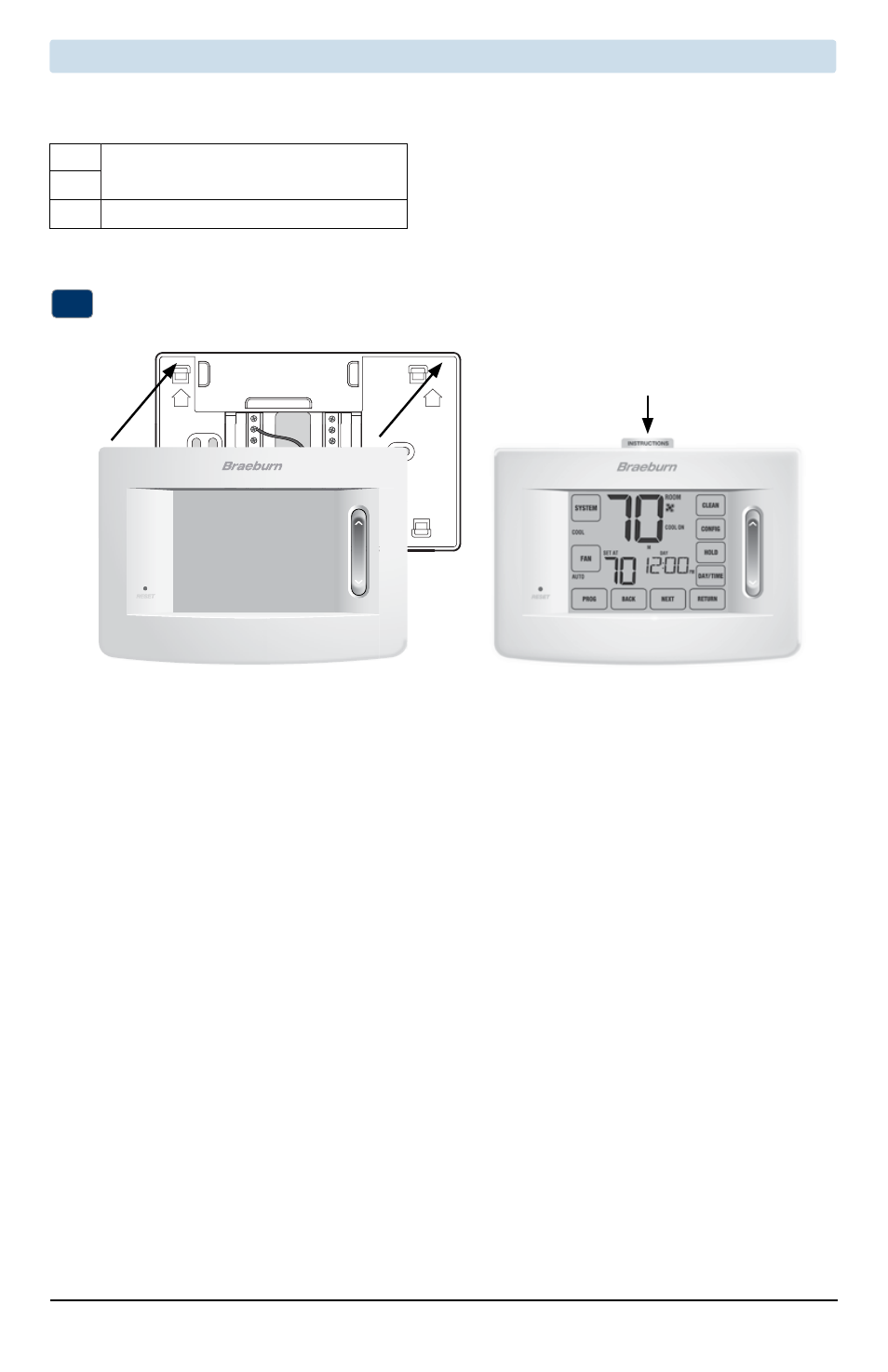

4 Attach Thermostat to Sub-Base
3) Insert Quick Reference Card into slot
on top of thermostat.
1) Line up the thermostat body with the sub-base.
2) Carefully push the thermostat body against the
sub-base until it snaps in place.
NOTE: Additional options are configured in the
Installer Settings section.
S1
S2
A
Economizer Control (5320 only) [note 2]
NOTES - Additional Wiring Options
[1] These terminals can be used to connect a
Braeburn ® indoor or outdoor remote sensor.
[2] This terminal can be used for economizer
control (5320).
Additional Wiring Options
Indoor or Outdoor Remote Sensor [note 1]
