Braeburn 2200 - Manual (Page 5)

8
Temperature Adjustment
6
Setting Your Energy Saving Program
5
3. Press the or button to change the time to the desired hour in 1 hour
increments. Press the PROG button to save. The minute portion of the set point
time will begin flashing.
4. Press the or button to change the time to the desired minute in 10-minute
increments. Press the
PROG button to save. The temperature digits will
begin flashing.
5. Press the or button to change the set point temperature to the desired setting
in 1˚ F increments (0.5˚ C). Press the
PROG button to save. The thermostat will
now display the DAY set point time and temperature. Again, you will see the hour
portion of the set point time and the AM/PM indicator will be flashing.
6. Follow steps 3 through 5 to set the set point times and temperatures for the
MORN, DAY, EVE and NIGHT set points for the Weekday group in the HEAT mode.
7. After pressing the PROG button, you will enter the Weekend Program Group.
The display will show
SA, SU to indicate the Weekend group is being
programmed. The hour portion of the MORN set point time and the AM/PM
indicator will be flashing.
8. Follow steps 3 through 5 to set the set point times and temperatures for the
MORN, DAY, EVE and NIGHT set points for the Weekend group in the HEAT mode.
9. Place the system switch in the COOL mode of operation. The display will show
COOL. Follow steps 2 through 8 to program the set point times and temperatures
for the Weekday and Weekend groups in the COOL mode.
NOTE: To erase all entered programs, current time of day, day of week and other
user settings, gently press the RESET button using a paper clip or a small pencil
tip. This will return all thermostat settings to their default values.

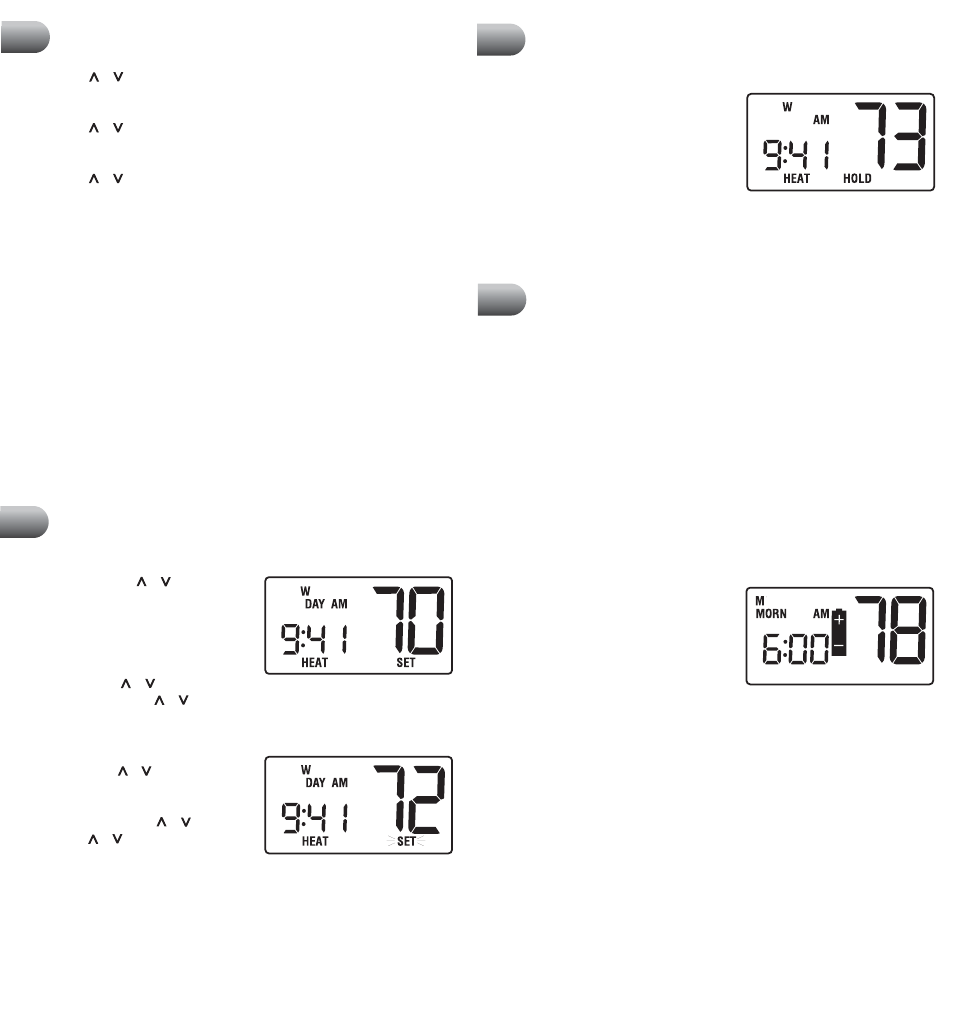

Review Set Temperature
1. Press and hold the or button. The
current set point temperature will be
displayed in place of the current room
temperature, and the indicator
SET will
be displayed.
2. The display will return to normal operating
mode when the or button is released.
Continuing to hold the or button for 1 second or longer will allow the user
to temporarily override the current programmed set point.
Temporary Program Override
1. Press and hold or button for 1 second
or longer. The entire display will flash
once and the SET indicator will be
displayed. Release the or button and
press the or button again as desired
to adjust the set temperature.
2. The display will return to normal operating mode after 15 seconds or you can
press the
RETURN button.
3. The program indicator (MORN, DAY, EVE or NIGHT) will be flashing in the
display, indicating that a Temporary Program Override is in effect. The Temporary
Program Override will reset when the next set point time occurs or after four
hours–whichever comes first.
9
cont.
Temperature Adjustment
6
Extended Hold (Vacation) Mode
1. Press the HOLD button to bypass the
program schedule. The current set point
temperature will be held either
permanently or for 24 hours, depending
on the setting selection made in section 4.
2. Press the HOLD button again to return the
thermostat to the normal program operation.
3. The hold period will last until the hold is released as in step number 2 above,
or is limited to 24 hours if the default was changed in the User Options Settings
(see section 4).
Compressor Protection
This thermostat includes an automatic compressor protection feature to avoid
potential damage to the cooling system from short cycling. This thermostat
automatically provides a 5-minute delay after turning off the cooling system
output to protect the compressor. This protection is also present in the heat mode
of operation on single stage heat pump systems to protect the compressor.
NOTE: The installer can reset the thermostat and bypass the compressor
protection features by pressing the RESET button. This will erase all entered
programs, current time of day, day of week and other user settings and should
only be used during installation for testing purposes or to reset a thermostat
to regain normal operation. This will return all thermostat settings to their
default values. The user will have to re-program all of the erased settings.
Low Battery Detection and Replacement
This thermostat requires two (2) new,
properly installed “AA” Alkaline batteries
to maintain the system clock and to provide
proper thermostat power when 24 volt AC
power fails or is not connected to the
thermostat. When the batteries start to become
too weak to provide proper operation, the
thermostat will begin to display a low battery indicator.
The low battery indicator is provided to inform the user when the batteries
require immediate attention. We recommend replacing the batteries as soon
as the low battery indicator appears. If the batteries are not replaced after
the low battery indicator first appears, the thermostat may not provide
proper heating or cooling system operation.
Even if the low battery indicator does not appear, the batteries should be replaced
at least once a year, or if you plan on leaving the premises for over a month.
This thermostat can be powered from 24 volts AC or battery power. To determine
if 24 volt AC power is connected to the thermostat, refer to the installation and
wiring diagram section. If you cannot determine how this thermostat is powered,
call a professional service technician to determine the type of installation and the
proper operation of your system.
Additional Operation Features
7
