Humidification and Dehumidification
If this thermostat was also equipped with a wireless humidity
sensor, it can be used to control a whole house humidifier or
dehumidifier. Humidification can be controlled manually from
the thermostat or automatically when a outdoor remote
sensor is installed and configured in the Installer Settings
(See Installer Guide).

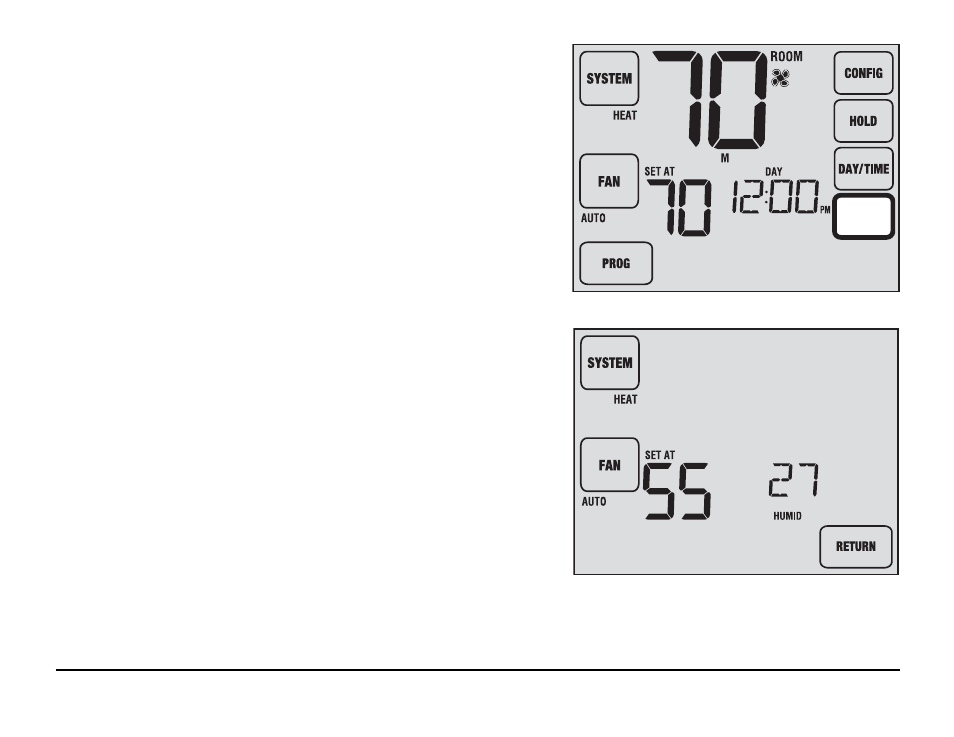

To view the current humidity level at the thermostat, touch the
HUMID TouchPad (Figure 1). If humidification and dehumidification
are not enabled, you will only see the current humidity level.
If humidification is enabled you will see the current humidity
level along with the humidification set point (Figure 2). Press the
SpeedBar
® up or down to adjust the humidification set point.
HUMID
Figure 1
Figure 2
User Manual 36
