Awntech DESTIN - Manual (Page 5)

5

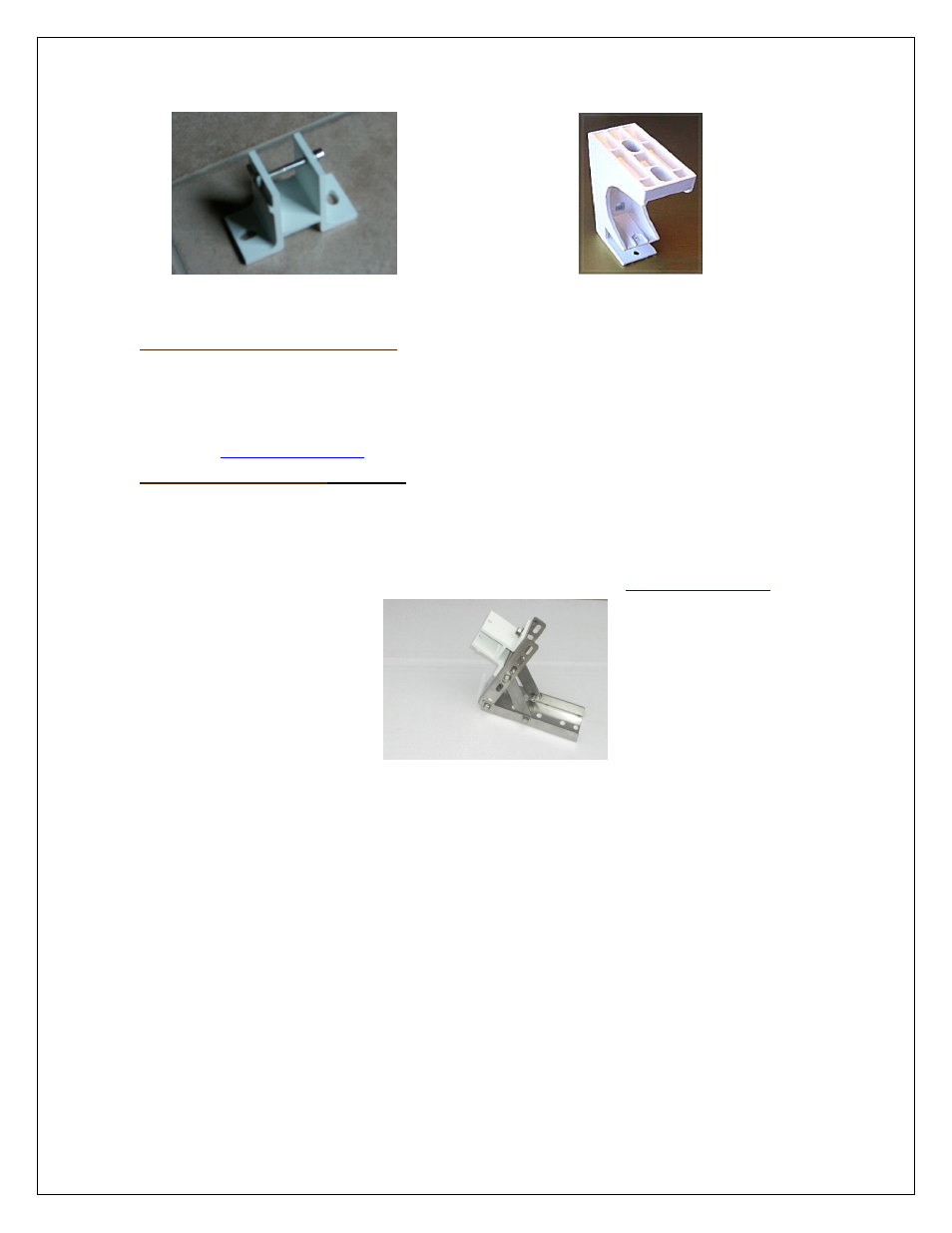

Wall Bracket Eave or Soffit Bracket
(Optional and can be purchased separately)
• Eave Mounting Brackets (optional) This bracket is designed for any application where there is not a
10” tall horizontal vertical band to mount the awning to, and there is an eave (or bottom of a beam)
higher than 7’-9” and lower than 10’-2” from the surface of the patio to the bottom of the eave. The
eave (or bottom of the beam) must be at least 5” wide. It is also an effective tool if eaves are deep
and you want to maximize the projection of your awning. NOTE: DO NOT PURCHASE SOFFIT
BRACKETS WITH A DESTIN. It may be purchased by calling Awntech at 800-200-5997 or sending
an email to
[email protected] .
• Roof Mounting Brackets (optional) this bracket is designed for any application where the wall
mounting and eave mounting brackets conditions are either not met or not acceptable and a roof
mounting application is desired. It is only designed for composition roofs on wafer board or plywood
decking. (At this time, we have no solution for clay tile, slate, or cedar shake applications over lath.)
NOTE: WE HIGHLY RECOMMEND THE PURCHASE OF A MOTOR FOR THIS APPLICATION.
Awntech highly recommends that a professional roofing contractor to do the installation. It may be
purchased by calling Awntech at 800-200-5997 or sending an email to
[email protected] .
(Optional and can be purchased separately)
INSTALLING BRACKETS
PLACEMENT OF THE BRACKETS IN THE OPTIMUM LOCATION WILL GREATLY AFFECT YOUR LONG
TERM HAPPINESS WITH YOUR AWNING. BELOW YOU WILL FIND A PLACEMENT GUIDE.
DETERMINING BRACKET PLACEMENT
FOR STARTERS: A DESTIN IS A MAUI WITH A HOOD. THE HOOD MAKES THE AWNING TALLER, SO
OUR DIAGRAMS SHOW DIMENSIONS FOR BOTH STYLES.
Please refer to the following drawings on pages 7-10 to determine your
particular mounting bracket needs.
If A most closely reflects your application, this requires wall brackets which are included with your
awning.
