Trouble Shooting
6.1 The car charger connector does not fit in the
navigator’s power socket.
The car charger (aka cigarette lighter power supply
cable) must NOT be plugged directly in the navigator.
The car charger must be plugged with one end in the car
cigarette lighter and with the other end in the active
holder.
The power socket on the right side of the navigator is
meant to be used only with the AC/DC power supply
Socket for cigarette lighter power
supply cable

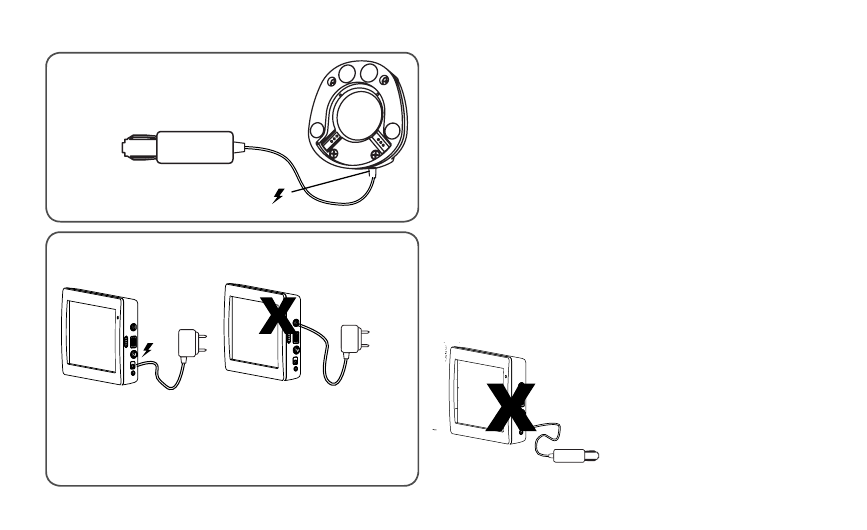

IN THE CAR: using the car charger
NO
ATTENTION:
DO NOT plug the car charger
in the audio output of the
navigator!
OK
AT HOME: using the AC/DC power supply cable
ATTENTION: DO NOT plug the AC/DC power supply
cable to the serial port (upper socket): it may
compromise the functioning of the GPS antenna.
N0
