Chapter 3 operation ), 1 starting status – Avlink PG-V1 User Manual
Page 9

8
Chapter 3 Operation
)
1. After pressing the power On/Off key for 2~3 seconds
to sound a long “beep”.
2. Only for the valid key of PG-V1 will sound a short
confirmed “beep” after pressing the key.
3. The chosen option will blink.
3.1 Starting Status

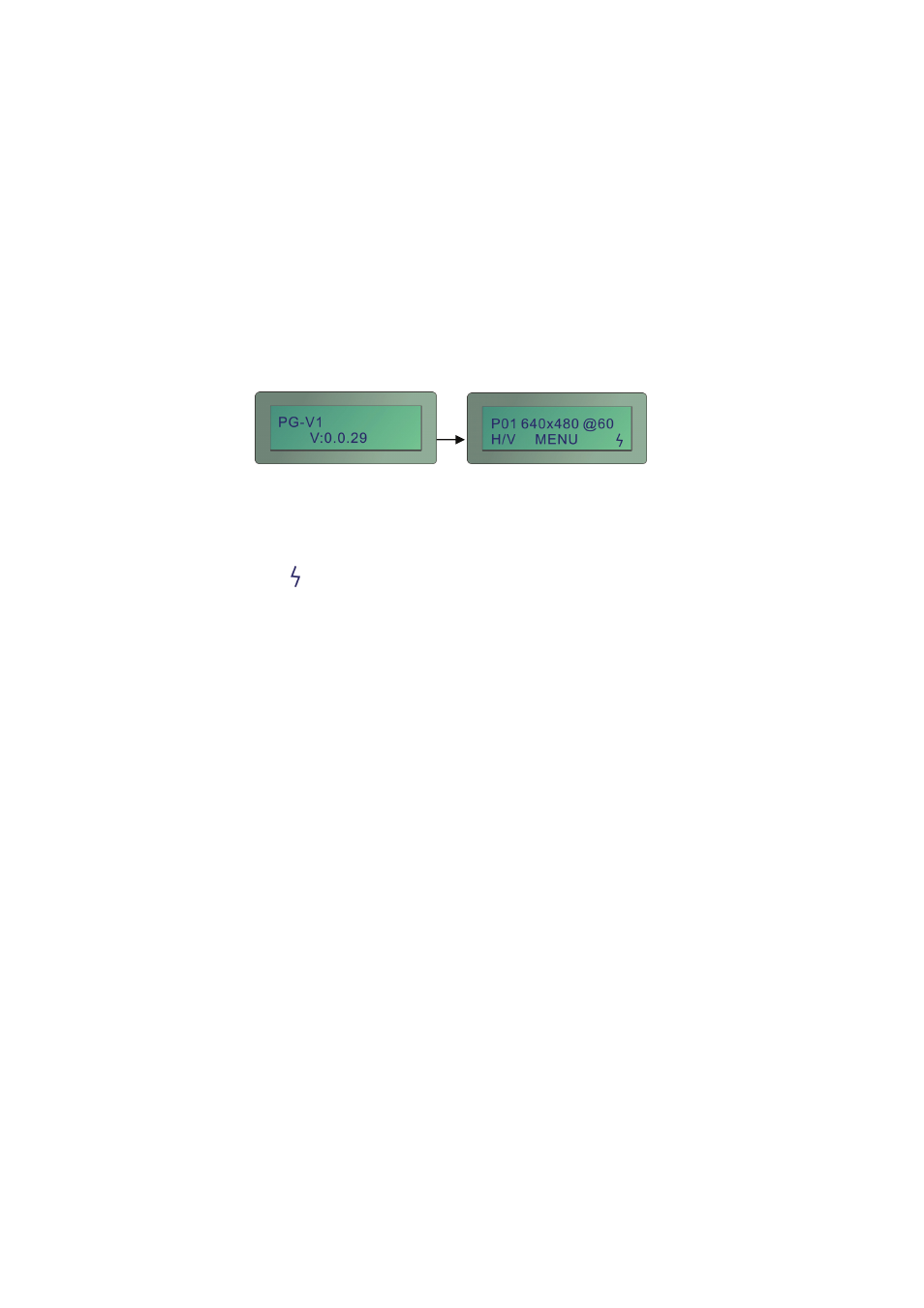

After you pressing the Power key to power on the PG-V1,
the LCD screen will show you the PG-V1 version suddenly
then show you the main screen as below (or previous
setting values saved in the PG-V1’s memory):
P01 640x480 @60
P01: Pattern 01 (refer to Appendix B: Pattern chart)
640x480: Resolution is 640X480
@60: Refresh rate is 60Hz
“ ”: The power of battery is charging.
To the LCD screen lower left will show you the PG-V1
operated mode just as SOG
SOG: Process PG-V1 under SOG mode.
H/V: Process PG-V1 under H/V mode.
.
