b. MODE:

Show you the option for output

synchronization is H/V or SOG mode that setting
mode will also be showed on the lower left of main
screen.

3.3.4 Hky (Hot key) configuration

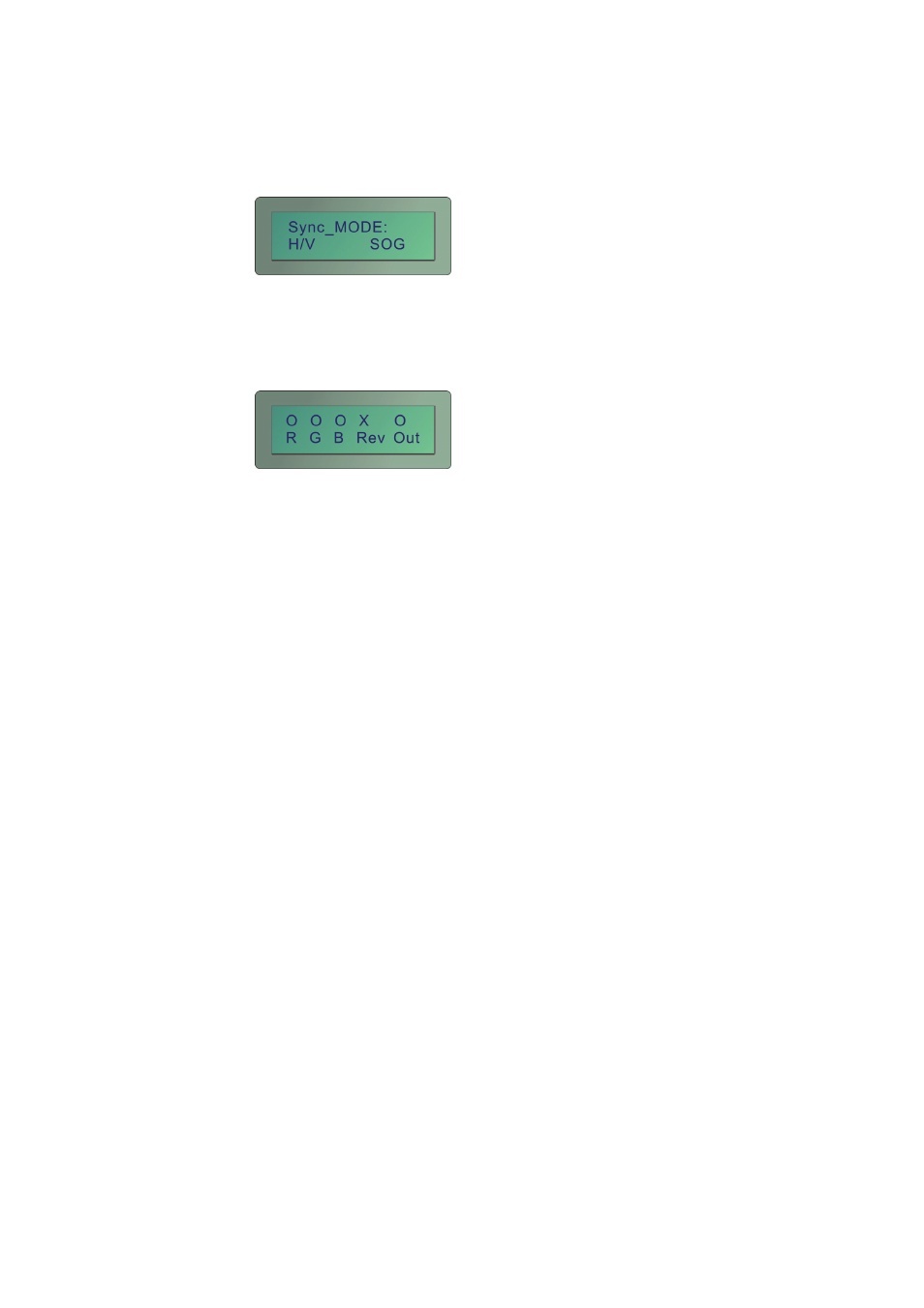

Press the Hky indicated key, the Hky configuration screen
will be showed as below:

“O”: Represent for “Enable”.

“X”: Represent for “Disable”.

“R”: Red component output.

“G”: Green component output.

“B”: Blue component output.

“Rev”: Pattern reverse

“Out”: Video Output control (On/Off).
