12
„

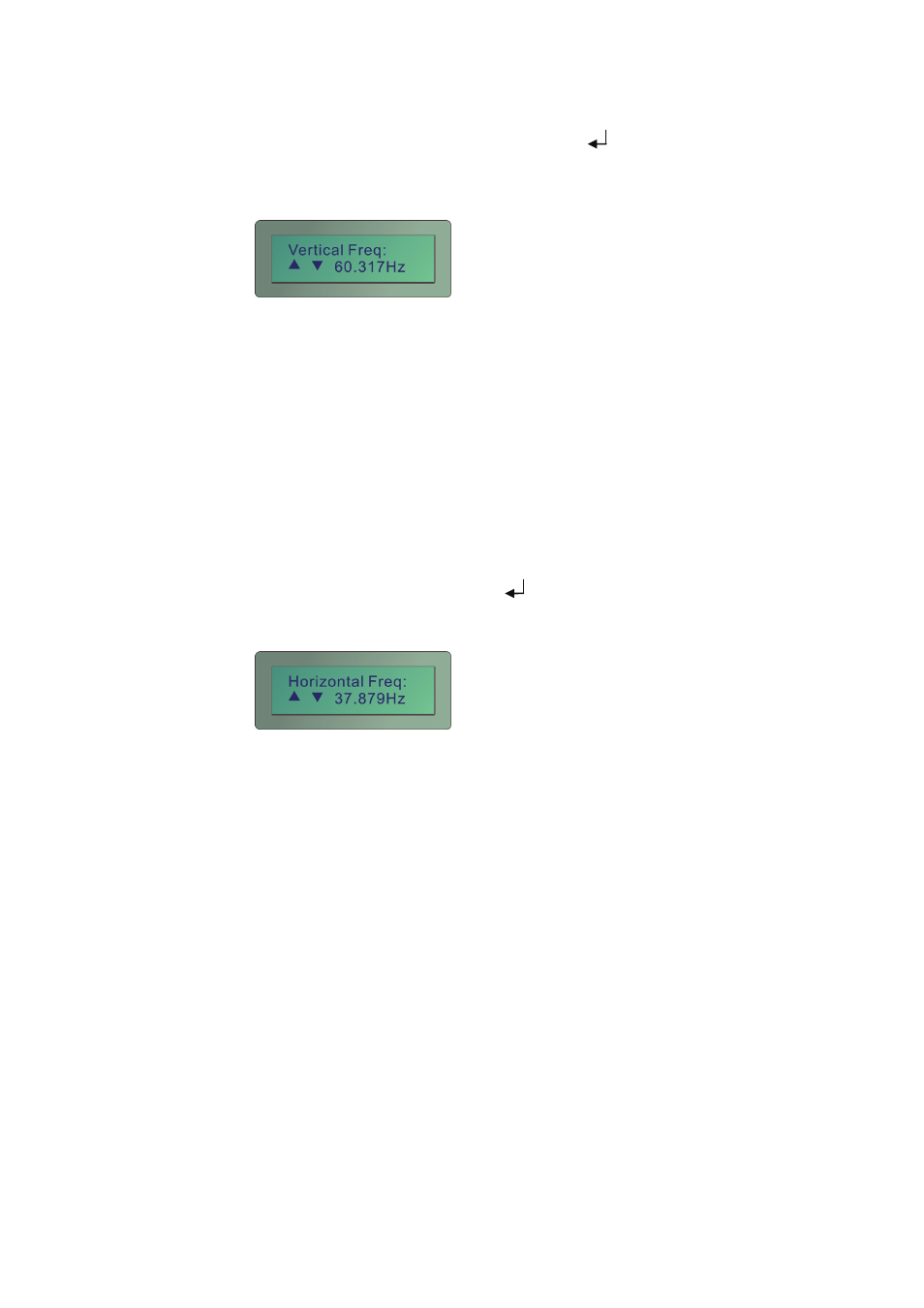

Hor (Horizontal Frequency Option): Under the
Sync/INFO configuration, please press the “
” to
enter the Info/Hor configuration screen including:
(Press “▲” and “▼” indicated key to select below
items.)
Pixel Clock
H Sync Polarity
Hor Left Border
Hor Back Porch
Hor Sync Time
Hor Front Porch
H Right Border
Hor Sync Start
Hor Blank Time
Hor Blank Start
Hor Addr Time
Hor Total Time
Hor Frequency
„
Ver (Vertical Frequency Option): Under the Sync/INFO
configuration, please press the “
” to enter the
Info/Ver configuration screen including: (Press “▲” and
“▼” indicated key to select below items.)
Pixel Clock
Vertical Freq
Ver Total Time
Ver Addr Time
Ver Blank Start
Ver Blank Time
Ver Sync Start
V Bottom Border
Ver Front Porch
Ver Sync Time
Ver Back Porch
Ver Top Border
V Sync Polarity
