Page 11

10
3.3 MENU Configurations
)
T
he figures in this chapter are for P01 640x480 @60
mode reference

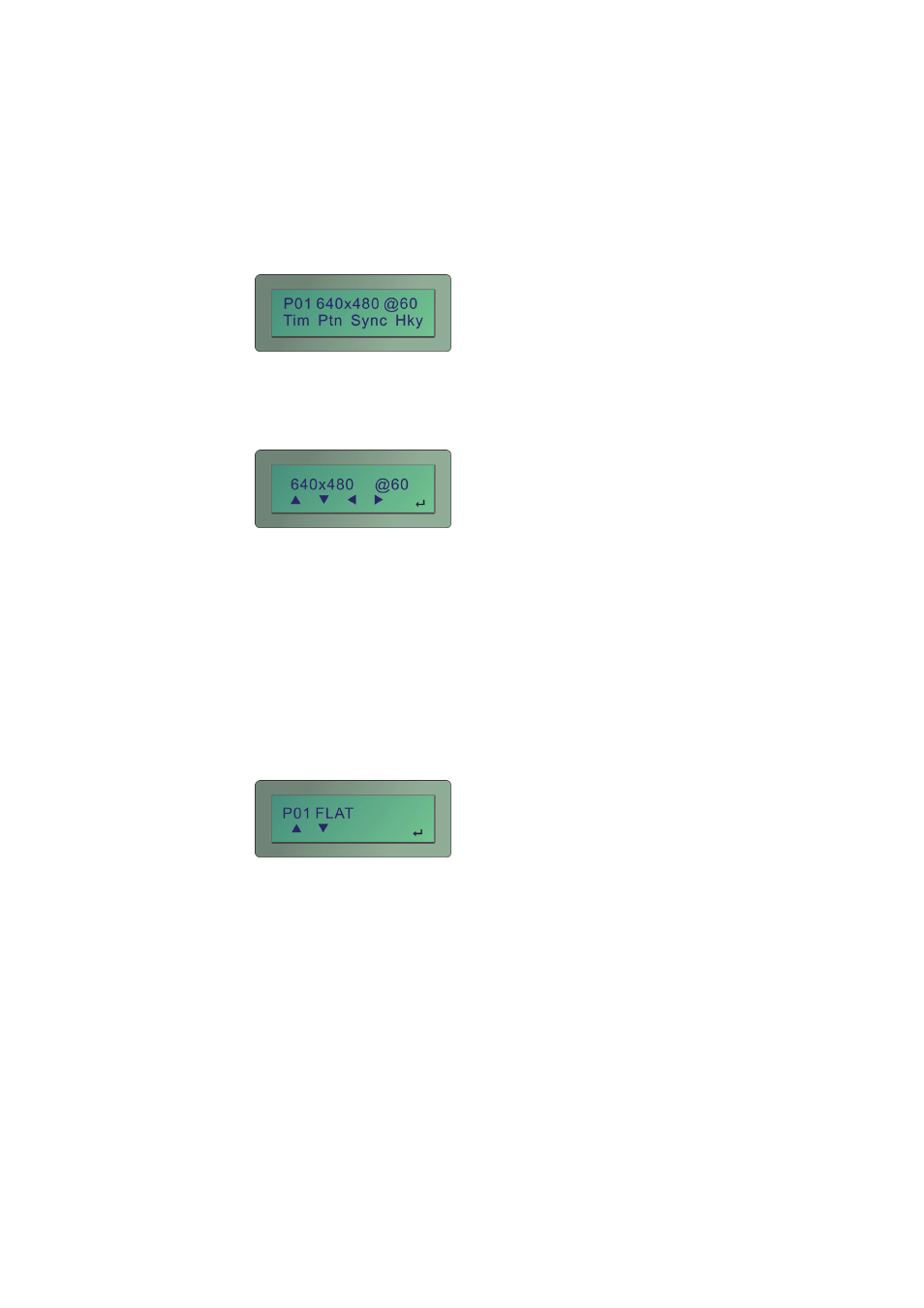

After you power on the PG-V1, please press the MENU
indicated key. The MENU configuration screen will be
showed as below:
3.3.1 Tim configuration
Press the Tim indicated key, the Tim configuration screen
will be showed as below:
“▲”: Adjust the Resolution and Refresh Rate with up
values. (refer to Appendix A: PG-V1 output signal
specification chart)
“▼”: Adjust the Resolution and Refresh Rate with
down values. (refer to Appendix A: PG-V1 output signal
specification chart)
“ ▲ ”,” ▼ ”: Switch between Resolution and Refresh
Rate options.
3.3.2 Ptn configuration
Press the Ptn indicated key, the Ptn configuration screen
will be showed as below:
“▲”: Switch the Pattern mode with up page. (refer to
Appendix B: Pattern chart)
“▼”: Switch the Pattern mode with down page. (refer to
Appendix B: Pattern chart)
