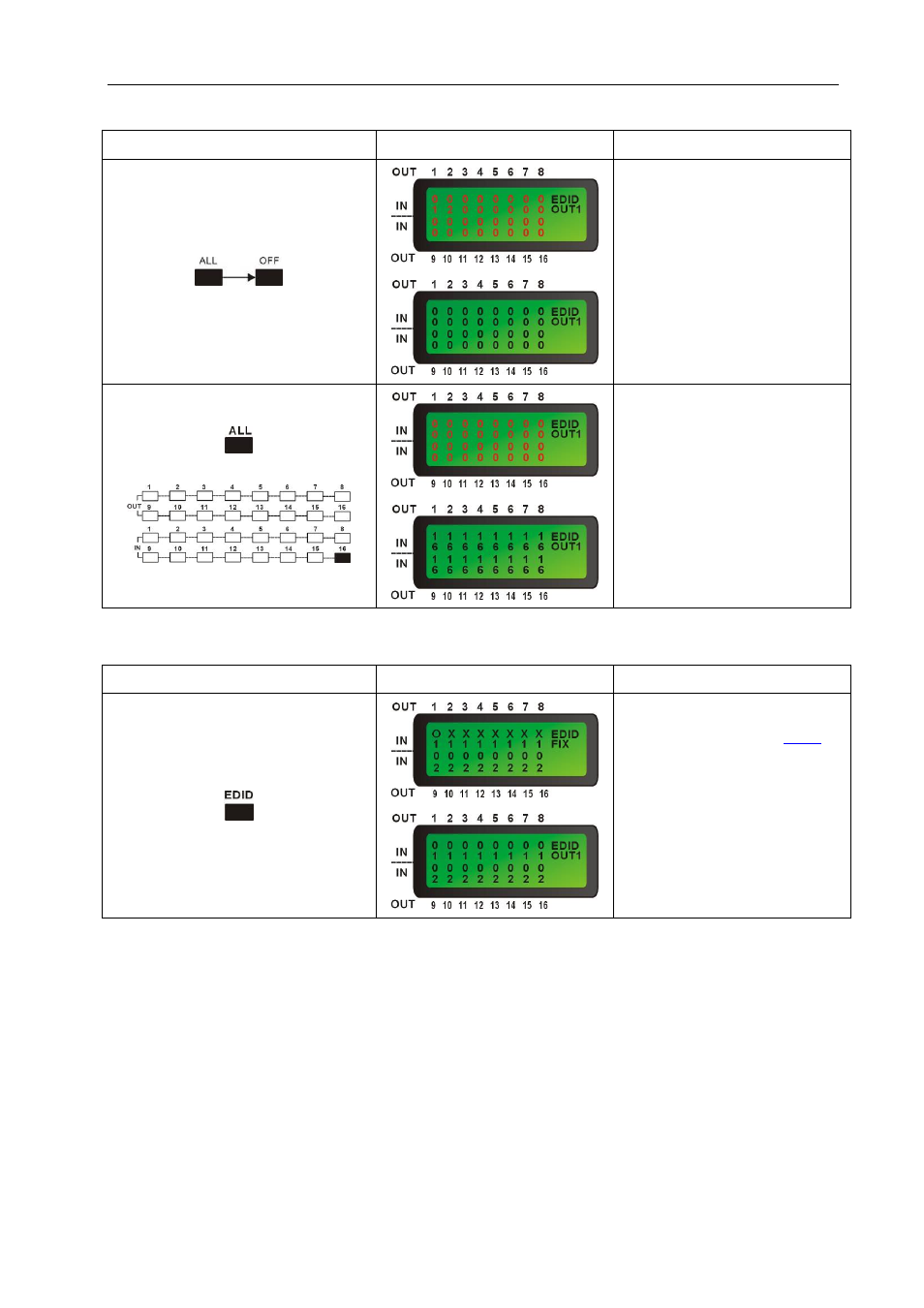

Example 3: “All” settings.
Key LCD Display Operation
1. Press the ALL key on the
front panel, and then press the
OFF key to cancel all the
settings.
2. Press ALL key then select
input 1~16 that indicate all
outputs will switch to selected
inputs. E.g. Input is 16.
Example 4: “EDID” functions.
Key LCD Display Operation
Press the EDID key to switch
FIX and OUT1, refer to EDID .
