6.
Matrix Device and Peripherals Connection

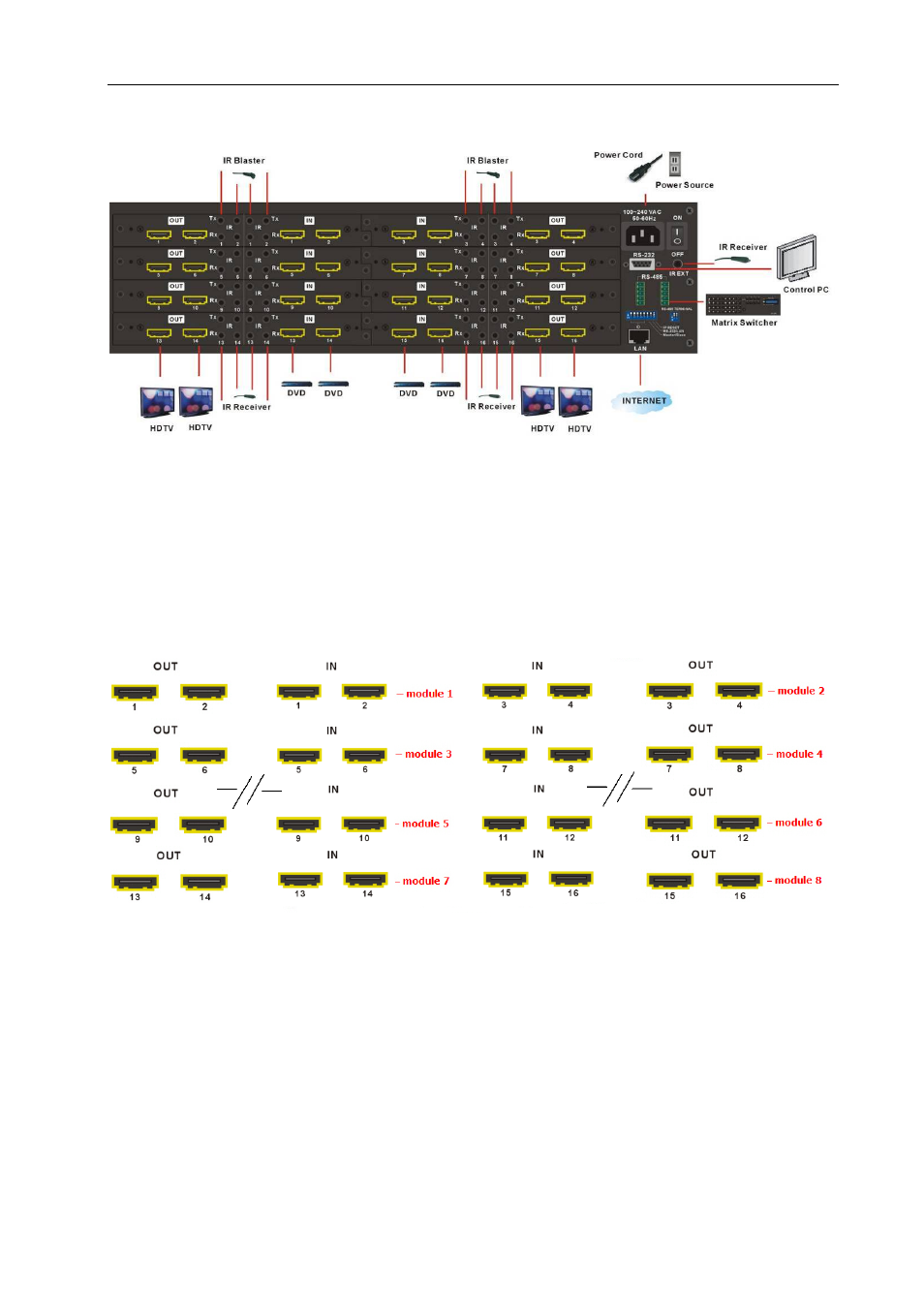

Figure 6-1 HX-331616 Connections
The HX-331616 supports up to 8 I/O modules for reparation or upgrade. Each module
can be configured individually based on module number. You can search these module
numbers by pressing PLUG and INFO keys simultaneously when you want to upgrade
firmware version.
Figure 6-2 Modules Deployment
