Matrix Switcher Series—User Manual
38
7.2.6 Options Function
Activation Function:
In the main configuration menu, select Options to prop-up the Options Window as
shown in Figure 7-11（a）

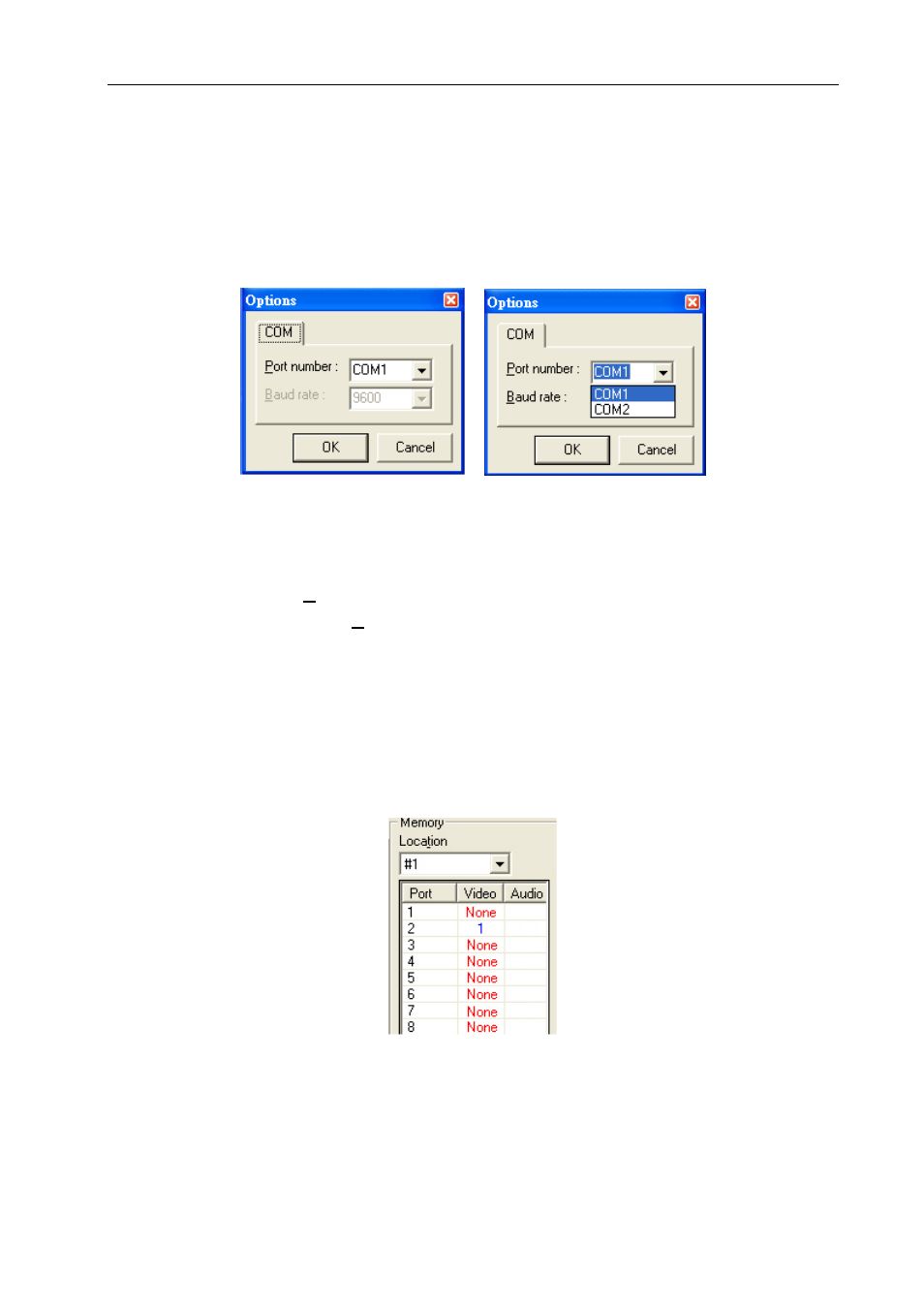

Figure 7-11 Options（a） Figure 7-11 Options（b）
Function Description:
Linking Methods: In “Port number” select one of the COM ports as shown in Figure
7-11（b）for an example; in “Baud rate” select 9600 for signal transmission as shown in
Figure 7-11（a）
7.2.7 Other Application
In the right main window displays the presently saved switching status as shown in
Figure 7-12 below:
Figure 7-12 Memory Configuration Status
When input corresponding to Output is enabling, it shows the Output ports correspond to
the Input ports; when they are disable it will show red “None” in the relative field.
