If using LiPo batteries you must set the correct battery mode on the ESC (electronic
speed controller) to prevent battery damage.

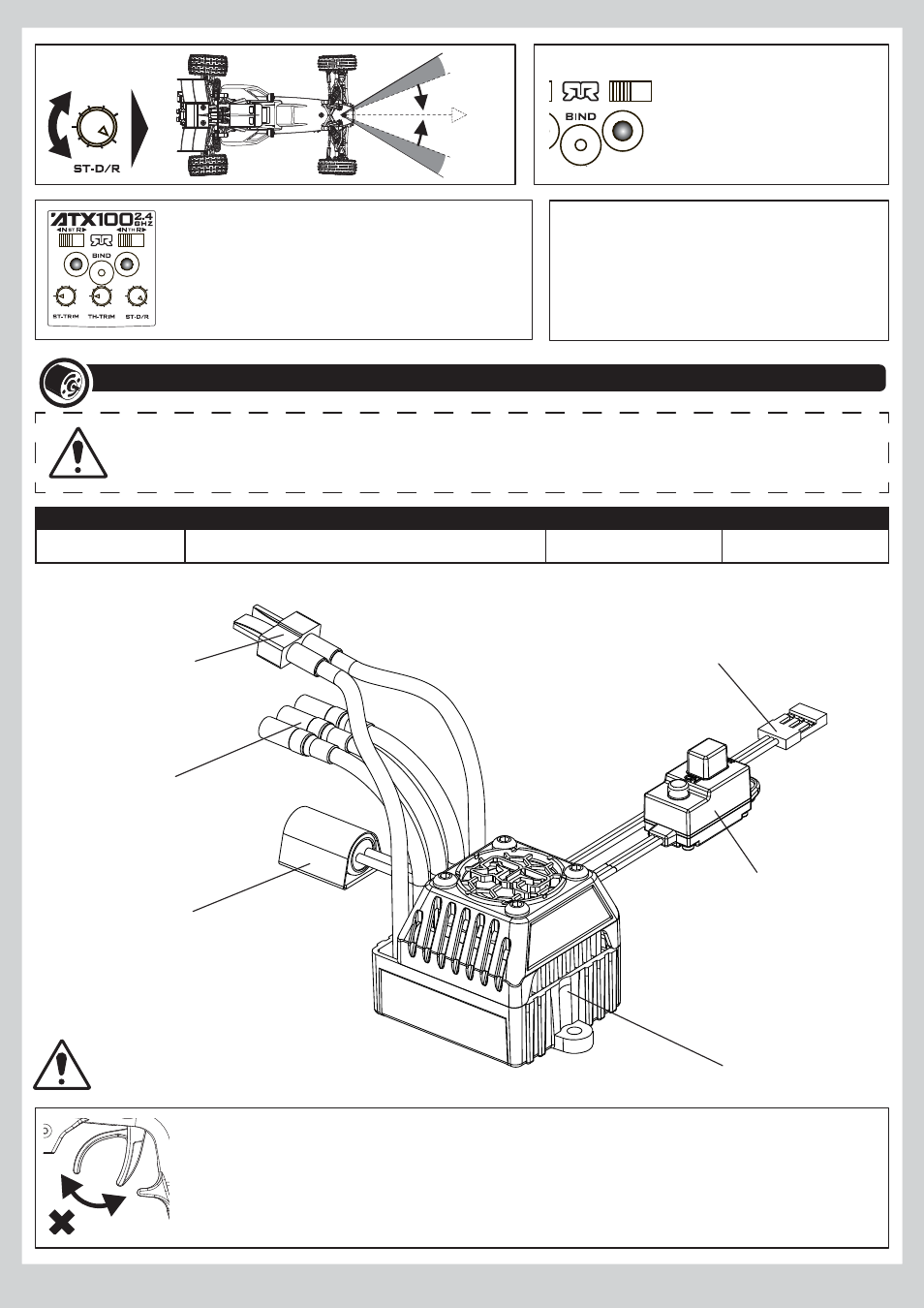

Receiver Plug (CH2)

Heat-sink and Fan

Electronic Speed Controller (ESC)

Deans® battery

connector

Power capacitor

Power Switch & Set

button

Motor wires

x 3

Dual Rate

Battery Status

If battery status LED is flashing,
the batteries need to be replaced.

Factory Defaults

Steering/throttle channels switches set to ‘N’,

Steering and Throttle trim set to middle/zero adjustment.

Steering Dual Rate at 100%/fully right.

Throttle Setup

Do not move the throttle when switching the model on and the ESC will automatically set the throttle neutral. A long beep
will sound to confirm setup.

HEAT-SINK MAY BE HOT AFTER USE

Contains FCC ID: ZL4-KST-HXGT2

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions: (1)
this device may not cause harmful interference, and
(2) this device must accept any interference received;
including interference that may cause undesired
operation.

ESC Specifications

Input Voltage

6-8 NiMh (7.2-9.6v) / 2S/3S LiPo (7.4-11.1v)

BEC Output

6.0v/2A Max
