Differential Removal and Replacement

1

3

5

2

4

6

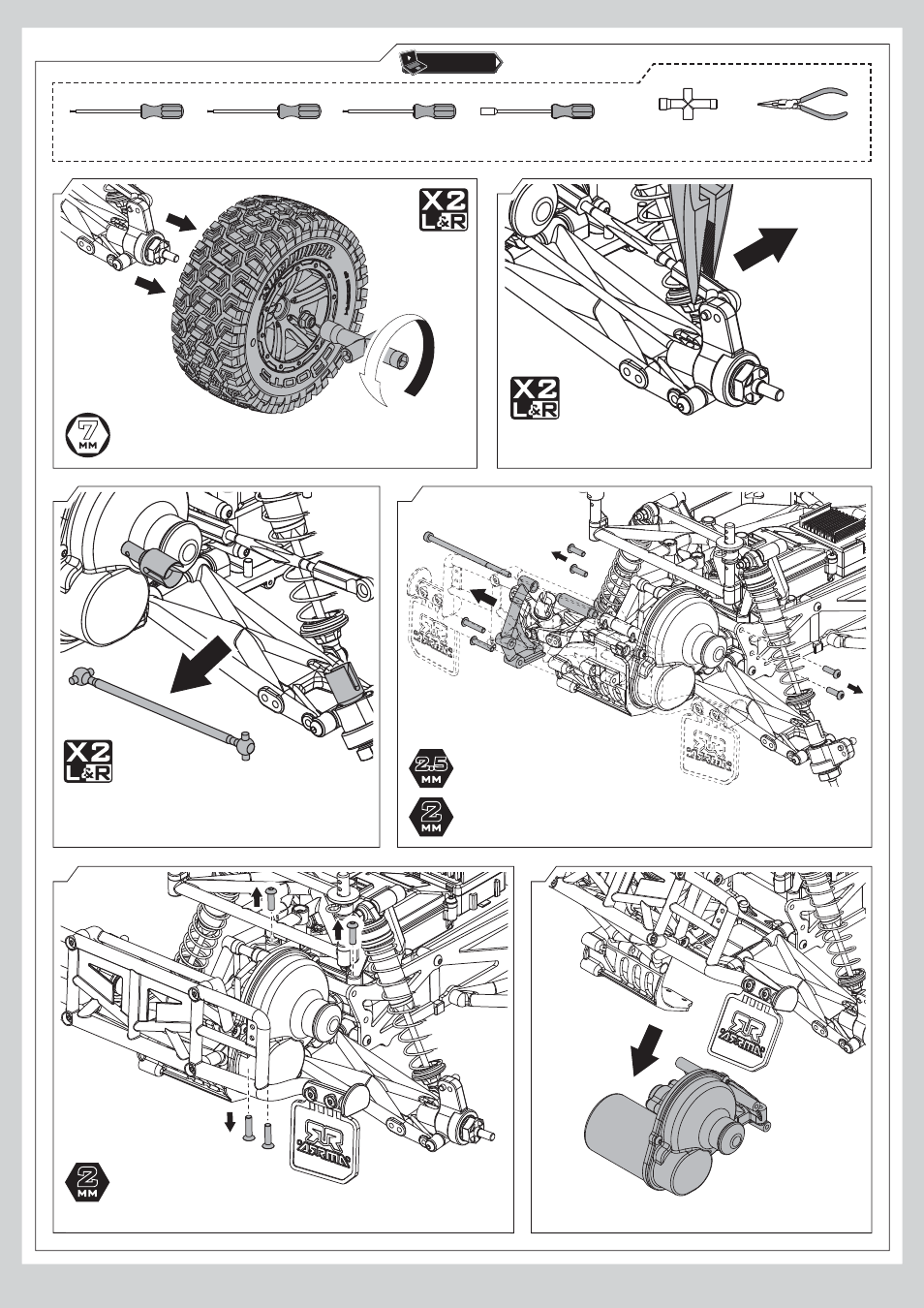

Remove rear wheels with 7mm nut driver/cross wrench.
Disconnect motor wires.

Remove driveshafts on both sides. Use this
opportunity to inspect axles and driveshafts for wear
(Page 15).

Remove two rear shock tower screws and two motor

guard screws with 2mm hex driver.

Separate both rear camber-link ball joints with long-nose
pliers.

Remove long motor guard bolt with 2.5mm hex driver. Remove two
short motor guard bolts and four gearbox/chassis bolts with 2mm
hex driver.

Hinge motor guard up and remove gearbox.

Long-nose Pliers

Tools Required

2mm Hex Driver

1.3mm Hex Driver

2.5mm Hex Driver

7mm Nut Driver

or

Cross Wrench
