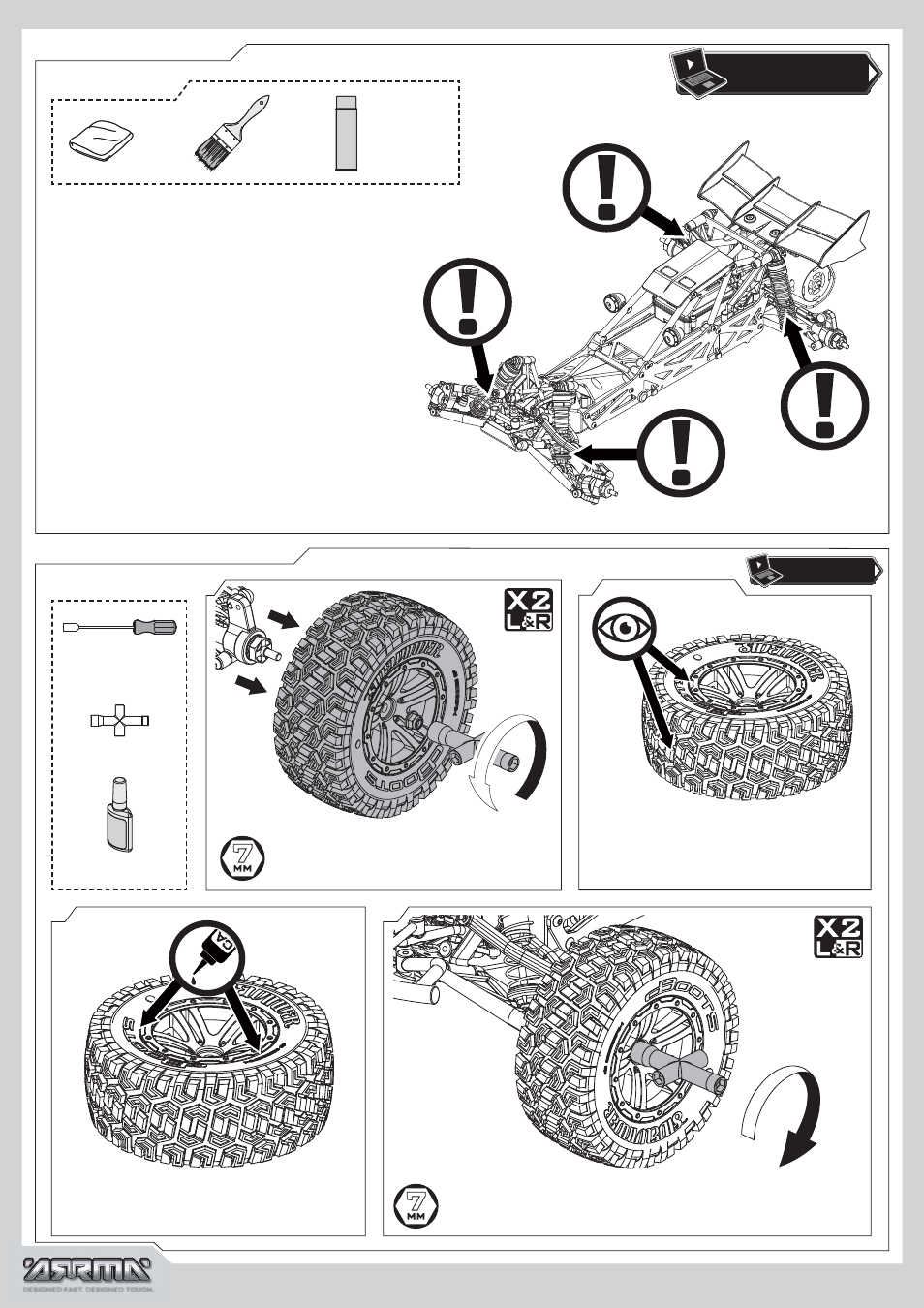

Chassis Maintenance

AFTER RUNNING:

™

En s u r e t h a t d r i v e t r a i n , s u s p e n s i o n a n d
steering are clean, free and lubricated

™

Check that all the screws are tight

™

Check tyre/wheel condition

Tools Required

Tools Required

N.B. Raider chassis shown as an example - information applies to all variants.

N.B. Fury shown as an example - information applies to all variants.

DO NOT RUN THE CAR IF ANY

PARTS ARE DAMAGED

Please contact your local distributor
to order replacement parts.

Online videos when

you see this icon >>

Automotive
Brake
Cleaner or
Nitro Car
Cleaner

Cloth

Brush

Wheel and Tyre Maintenance

2

3

4

1

Visually inspect the tyre sidewalls and tread
for damage or heavy wear. Replace wheel
and tyre if either is found to be worn. Check
that tyre bead is securely glued to the rim.

If the tyre needs re-glueing, gently pull tyre away
from the wheel rim, apply a small amount of tyre
glue, re-seat the tyre and hold until glue has set.

Refit the wheel with a 7mm nut driver or cross wrench 'finger-tight',
then tighten a further 1/4 turn. Do NOT over tighten the wheel nut or
damage to the wheel bearings may occur.

Ensure model is switched off and drive
battery is removed; then remove wheel with
7mm nut driver or crosswrench.

7mm Nut Driver

or

Cross Wrench

Tyre Glue
