Driveshaft Maintenance

Rear Axle Maintenance

Tools Required

7mm Nut Driver or Cross Wrench

Long-nose Pliers

Every 20 runs or so it may be
necessary to clean and re-grease the drive-shafts as
well as check for wear and/or damage. Running in dusty,
sandy or wet conditions will mean that this will need to be
performed more frequently.

2

2

4

1

1

3

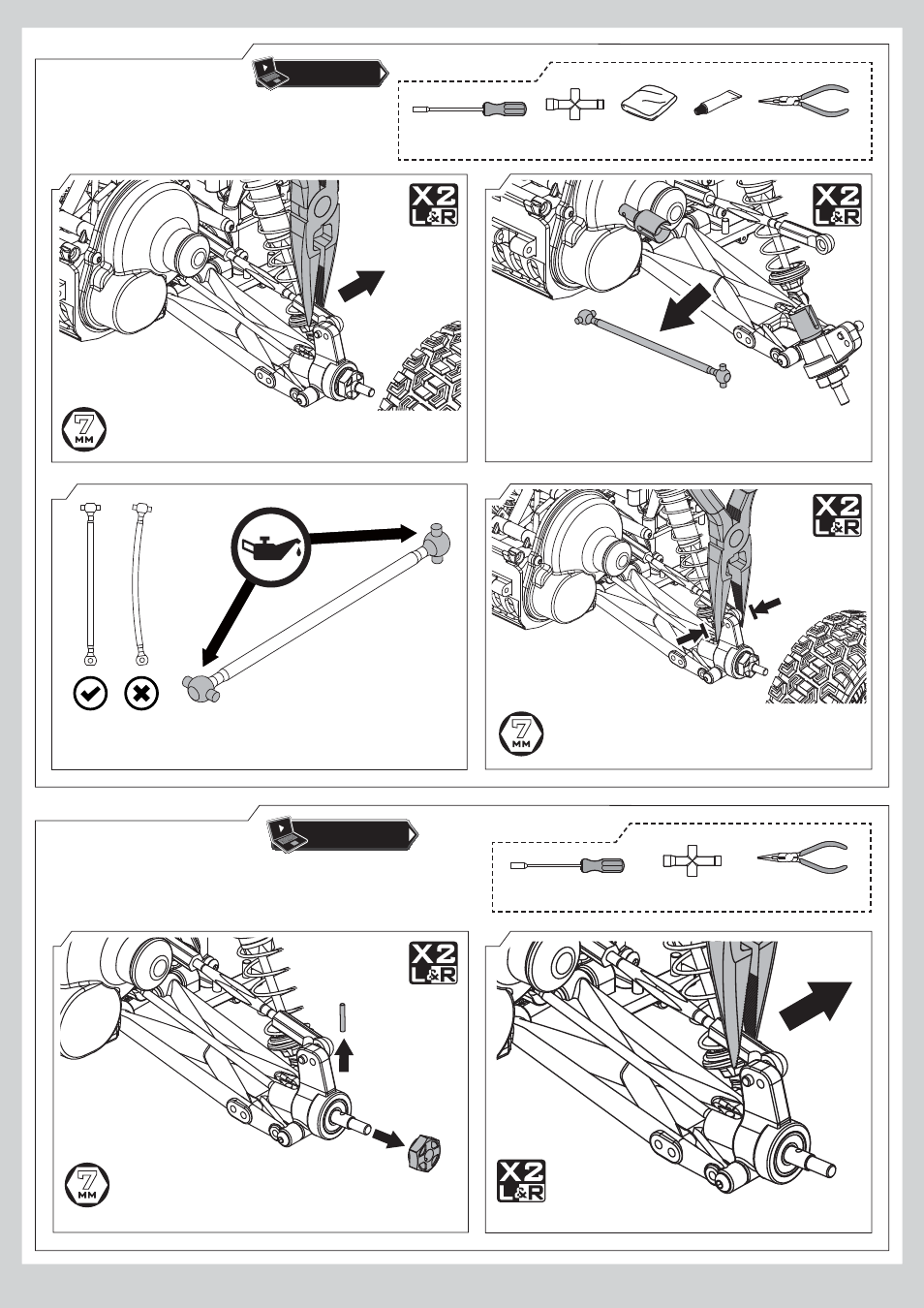

Remove rear wheel with 7mm nut-driver/cross wrench.
Separate camber-link from balljoint with pliers.

Visually check driveshaft is not twisted or bent. If necessary,
replace. Re-grease driveshaft ends and refit.

Remove driveshaft. Clean driveshaft ends and axle inputs
and differential out-drives.

Separate camber-link from ball joint with long-nose pliers.

Refit camber-link ball-joint with long nose pliers
and refit rear wheel with 7mm nut driver or cross
wrench.

Cloth

Grease

Ev e r y 2 0 r u n s o r s o i t m a y
be necessary to inspect the rear axle for wear. Running the model
in dusty, sandy or wet conditions will mean that this will need to be
performed more frequently.

Tools Required

7mm Nut Driver

or

Cross Wrench

Long-nose Pliers

Remove rear wheel with 7mm nut driver/cross wrench.

Remove rear hex hub and drive pin from axle.
