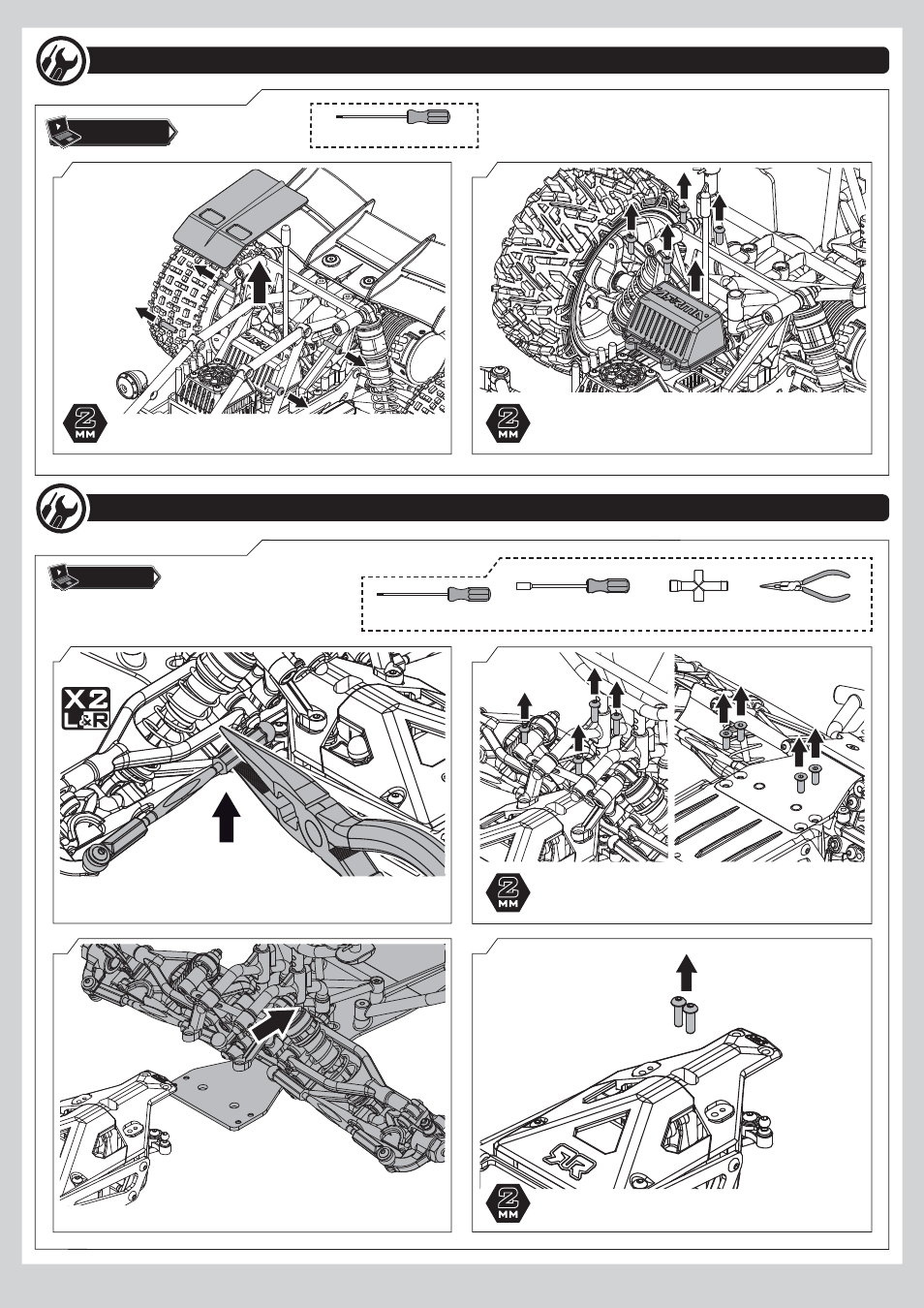

Radio-gear Maintenance

Steering Maintenance

Receiver Access

Steering Access

If you want to replace or upgrade the steering servo, ESC
(electronic speed controller) or re-bind the transmitter, you
will need to access the receiver.

I f y o u f i n d y o u r c a r ’ s

steering feels loose it may mean you have to
adjust the servo saver. To do this you will have
to get access to the steering mechanism.

2mm Hex Driver

1

1

2

2

(Raider only) Remove four roof bolts with 2mm hex
driver, remove roof.

Disconnect steering link ball-joints on both sides with long
nose pliers.

Remove four bolts securing receiver box lid with 2mm
hex key, remove lid. Reinstallation is the reverse the
removal process.

Re m o v e f o u r b u t t o n s c r e w s a b o v e a n d f o u r
countersunk screws below servo box with 2mm hex
driver.

Tools Required

2mm Hex Driver

7mm Nut Driver

or

Cross Wrench

Long-nose Pliers

ARRMA-RC.COM/

SUPPORT/

ARRMA-RC.COM/

SUPPORT/

Tools Required

3

4

Separate front sub assembly from rest of

chassis.

Remove two bolts holding steering assembly to chassis

with 2mm hex key.
