© 2013 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc.

DESIGNED FAST. DESIGNED TOUGH.

14

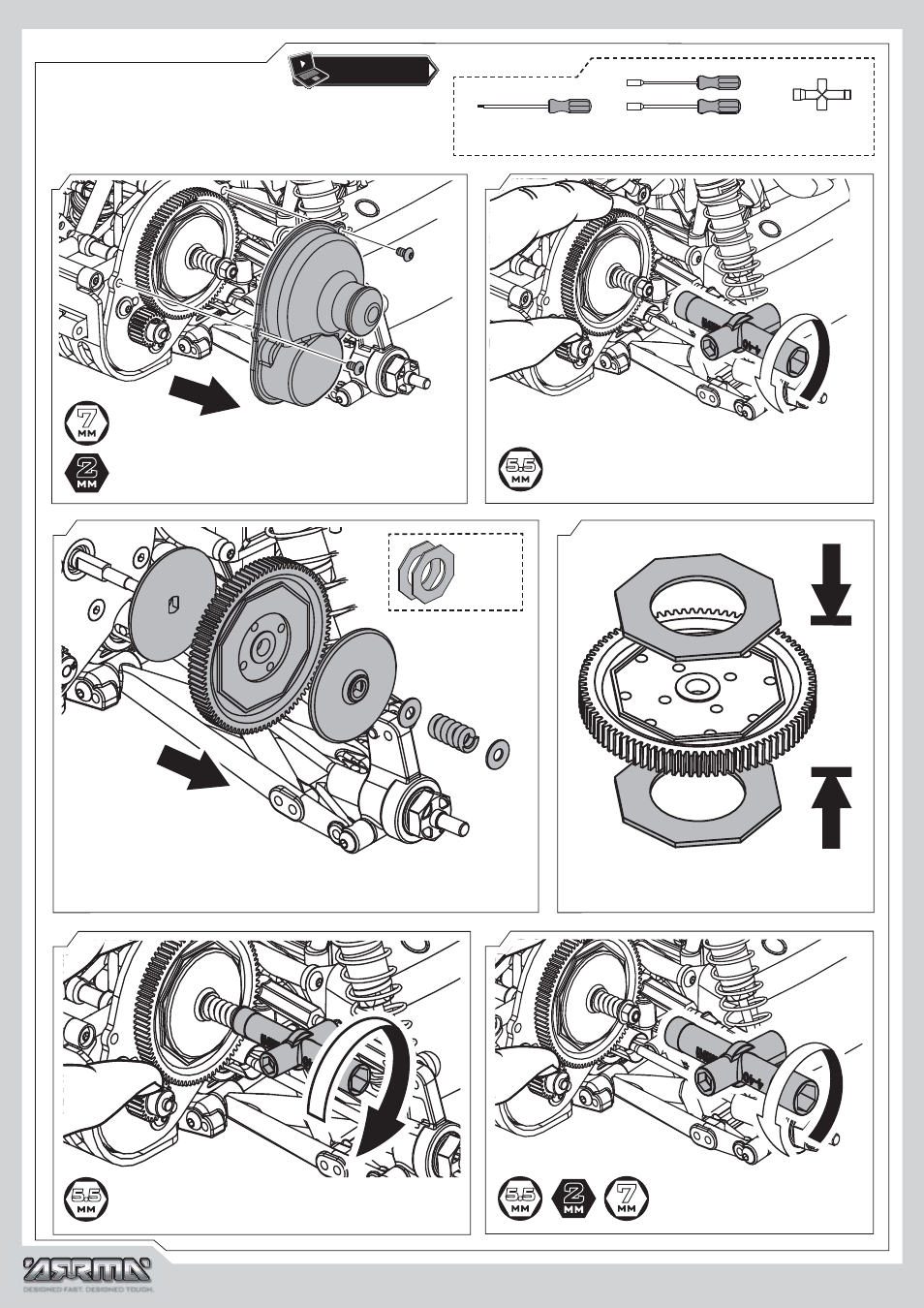

Slipper Pad Replacement

Tools Required

2mm Hex Driver

5.5 & 7mm Nut Driver

or

Cross Wrench

Every 20 runs or so it may be necessary
to replace your slipper clutch 'pads'. This depends on how the slipper
is setup and your driving style. If you find that it is hard to get the
setting you want from your slipper clutch then it is likely that the pads
need to be replaced.

Ensure model is switched off and drive battery is
removed then remove rear-right wheel with 7mm nut
driver or cross-wrench.
Remove spur gear cover with 2mm hex driver.

Hold the spur gear with your fingers. Use a 5.5mm
nut driver or cross-wrench to remove the slipper
clutch adjustment nut.

Loosen the adjustment nut 4.5
turns. Refit spur gear cover and
rear wheel.

2

6

5

3

4

1

Remove the slipper clutch adjustment mechanism, slipper plates and spur
gear. Remove old slipper pads from spur gear and discard.

Affix the new slipper pads to the spur gear.

Slipper
Pads
PN:
310018

Refit the slipper clutch & adjustment mechanism. Tighten
the adjustment nut fully.

ARRMA-RC.COM/

SUPPORT/
