© 2013 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc.

DESIGNED FAST. DESIGNED TOUGH.

6

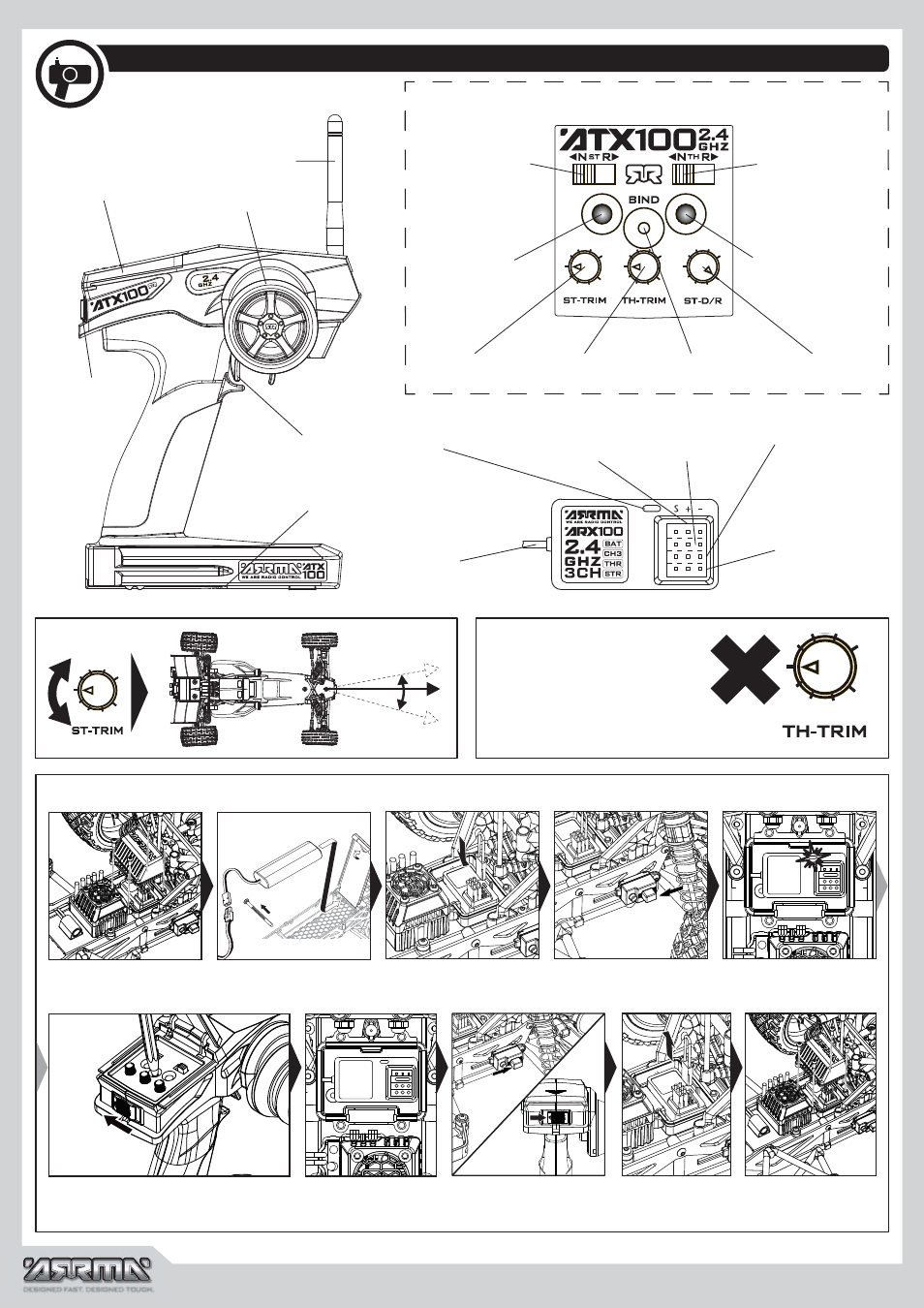

Radio Gear

Battery compartment

Status LED

BAT socket

(not used)

Throttle socket

(CH2)

Steering (CH1)

socket

Throttle trigger (CH2)

Steer wheel (CH1)

Control panel

Power switch

Aerial

Aerial

Bind/CH3

socket

Steering reverse

Power LED

Steering trim

Throttle trim

Bind button

Battery Status LED

Steering dual rate

Throttle reverse

Control Panel

ARRMA ATX100 2.4Ghz

Binding

Throttle Trim

Throttle Trim: factory default
zero, adjustment is not
necessary.

Steering Trim

Fit battery and

connect ESC

Remove receiver box

lid

Hold down bind button and turn

transmitter on

Status LED stops

blinking

Turn ESC and

Transmitter off

Remove bind

plug

Replace receiver box

lid

Switch on

ESC

Receiver status LED

will blink

Insert bind plug in CH3

Socket
