Product Features
DUAL DISPLAY -
COLUMN LCD and SEGMENT LCD (Simulated Mercury Column)
The pressure can be read in the column LCD height and as digital value in the
segment LCD.
DUAL MEASUREMENT MODE -
"AUTO" and "MANUAL" Modes of Measurement
Determination of blood pressure can be made either automatically by the
oscillometric method or manually by the auscultatory method using a
stethoscope.
Cuff Sizes (Auto Mode)
The Small Adult size cuff will accommodate arms of approximately 7.4 to
10.6 inches (19.0 to 27.0 centimeters). A Small Adult cuff should be used on
patients 12 or older only (in auto mode).
The Adult size cuff will accommodate an upper arm circumference range of
approximately 9.0 to 15.7 inches (23.0 to 40.0 centimeters).
The Large Adult size cuff will accommodate that of approximately 13.3 to
19.6 inches (34.0 to 50.0 centimeters).
Cuff Sizes (Manual Mode)
In manual mode, any of ADC’s ® 5 cuff sizes (child, small adult, adult, large
adult or thigh) may be used, on any patient.
Operation with AC Adapter or Rechargeable Battery
The digital ADC ® e-sphyg TM 2 sphygmomanometer is powered by either an AC
Adapter or rechargeable nickel metal hybrid (NiMH) battery (both included).
MODE DEFLATION RATE MEMORY
AUTO Maintained at 4.0 to 4.9mmHg/sec Last measured result auto saved
Maintained at preset rates of:
2.5, 4.5 or 6.5mmHg/sec
MANUAL
752M-116
752M-117
2 e-sphyg
130
82
73
PRESET PRESSURE
MANUAL
AUTO 280
260
220 180 140
100
10 20
40
60
80
100
120
140
160
180
200
220
240
260
280
300
30
50
70
90
110
130
150
170
190
210
230
250
270
290
POWER LOW BATTERY
AC
START/STOP SET/MEMORY
9002
752M-02

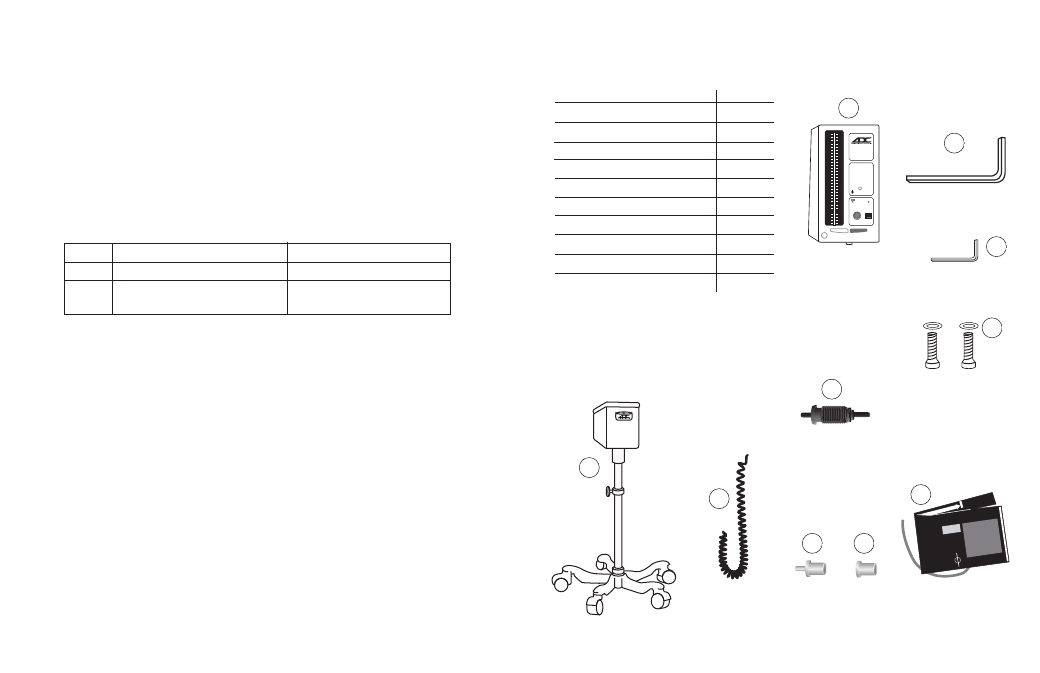

9002M - Mobile Unit Parts & Tools
885N
SELECT
LARGER CUFF
ADCUFF
ADULT SIZ E
RAN GE / MA X
ARTERY
845-11ABK-IF
9002-2
891M 891F
1
2
3
4
5
6
7
972-101
8 9
10
N/A
ADC Item Item no.
1. e-sphyg TM 2 9002
2. 6mm Allen Wrench 752M-116
3. 3mm Allen Wrench 752M-117
4. Mounting Bolt/Washer (2) 972-101
5. Mobile Stand 752M-02
6. Coiled tubing 885N
7. Connector 9002-2
8. Connector, Male 891M
9. Connector, Female 891F
10. Adcuff TM & Bladder, Adult 845-11ABK-IF
