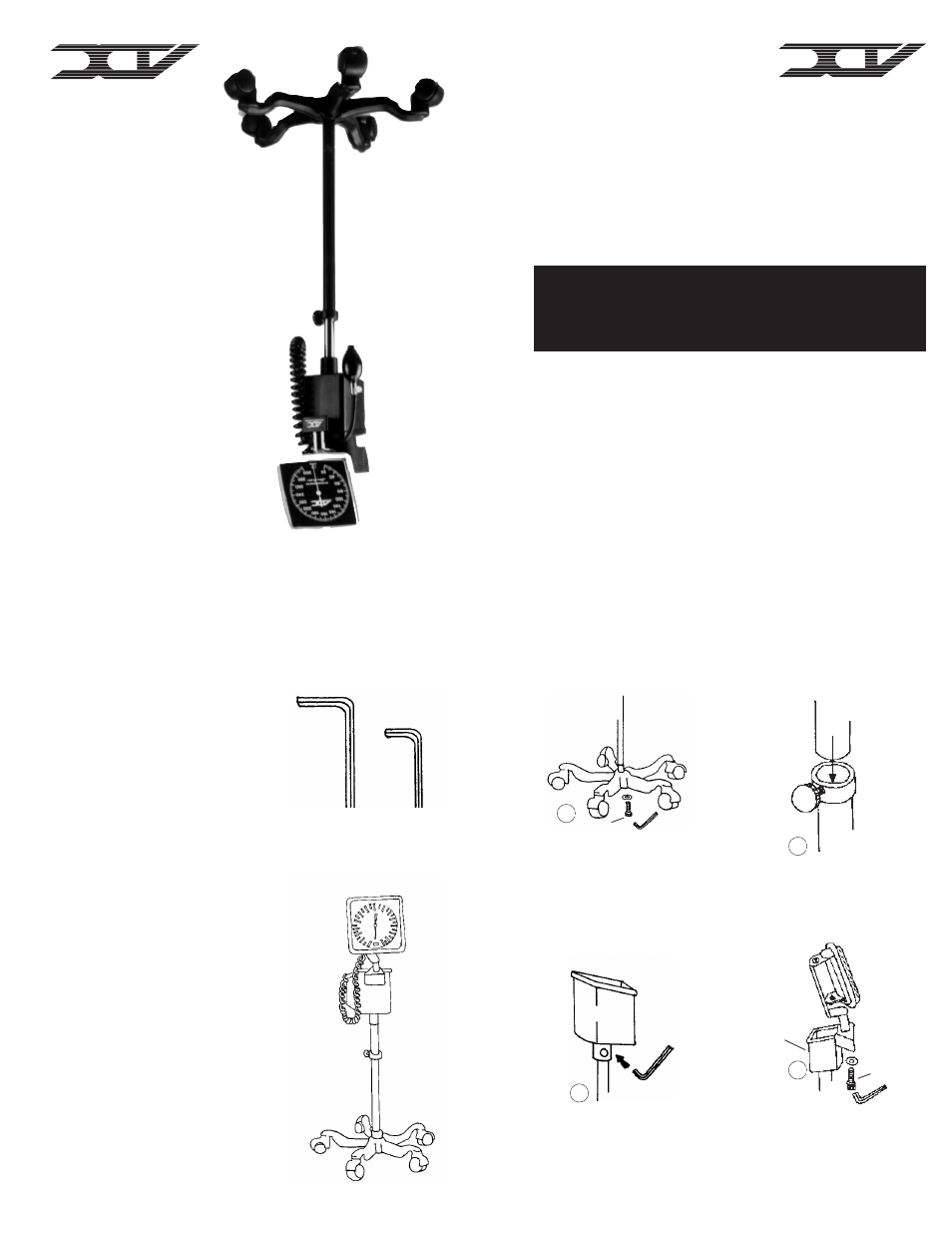

HOW TO ASSEMBLE
DIAGNOSTIX
™
752M
•
Assembly Instructions
•
Schematic
•
Parts List
®
AM
ERI
CAN
DI
AGN
OST
IC
COR
POR
ATIO
N
55 Commerce
Drive
Hauppauge, NY
11788
Customer Service:
1-800-ADC-2670
Voice:
1-631-273-9600
Fax: 1-631-273-9659
email: info@adctoday
.com
http://www.adctoday
.com
NEW YORK
• LONDON
• TOKYO
©2011
ADC
®
IB p/n:
9352B-00 - rev
4
1
2
3
4
6mm
3mm
Included Tools
Connect outer pole (tube) to
base assembly. Note: Tighten
allen bolt securely by applying
as much force to allen key as
possible.
Slide inner pole inside outer pole.
Attach manometer bracket to
cuff storage basket.
Insert pole into bottom of cuff
storage basket and tighten allen
bolt on side of the basket with
small allen key.
1. With base on its side connect upright
outer pole to base using large (6mm)
allen bolt. Tighten with large (6mm)
allen key provided. Tighten hardware
as securely as possible. (Note: To
prevent loosening, hardware must be
tightened securely and periodically
checked). (Figure 1)
2. Slide stainless steel inner pole inside
outer sleeve with open end up.
(Figure 2)
3. Loosen (3mm) allen bolt on collar of
cuff storage basket with small (3mm)
allen key provided. Place cuff
storage basket on top of stainless
steel inner pole making sure the pole
goes completely inside collar and
tighten allen bolt with key. (Figure 3).
4. Attach manometer bracket to basket
using (6mm) allen bolt and washers
as shown. Tighten securely with
large (6mm) allen key. (Figure 4).
5. Adjust height of manometer by
loosening knob and raising or lowering
inner pole until gauge is at desired
height. Tighten knob by hand.
6. Connect coiled tubing to gauge inlet.
(Note: The coiled tubing may be diffi-
cult to connect, moisten with soapy
water if necessary). Refer to booklet
entitled DIAGNOSTIX
™
Aneroids
Pocket, Palm, Clock Type booklet
(9350N-00) for instructions on
operating the unit.
Cuff storage
basket
Allen Bolt
Allen Bolt
To
Register Y
our Product,
visit us
at www
.adctoday.com
and follow
the links
