All user interaction is through the touch screen LCD.

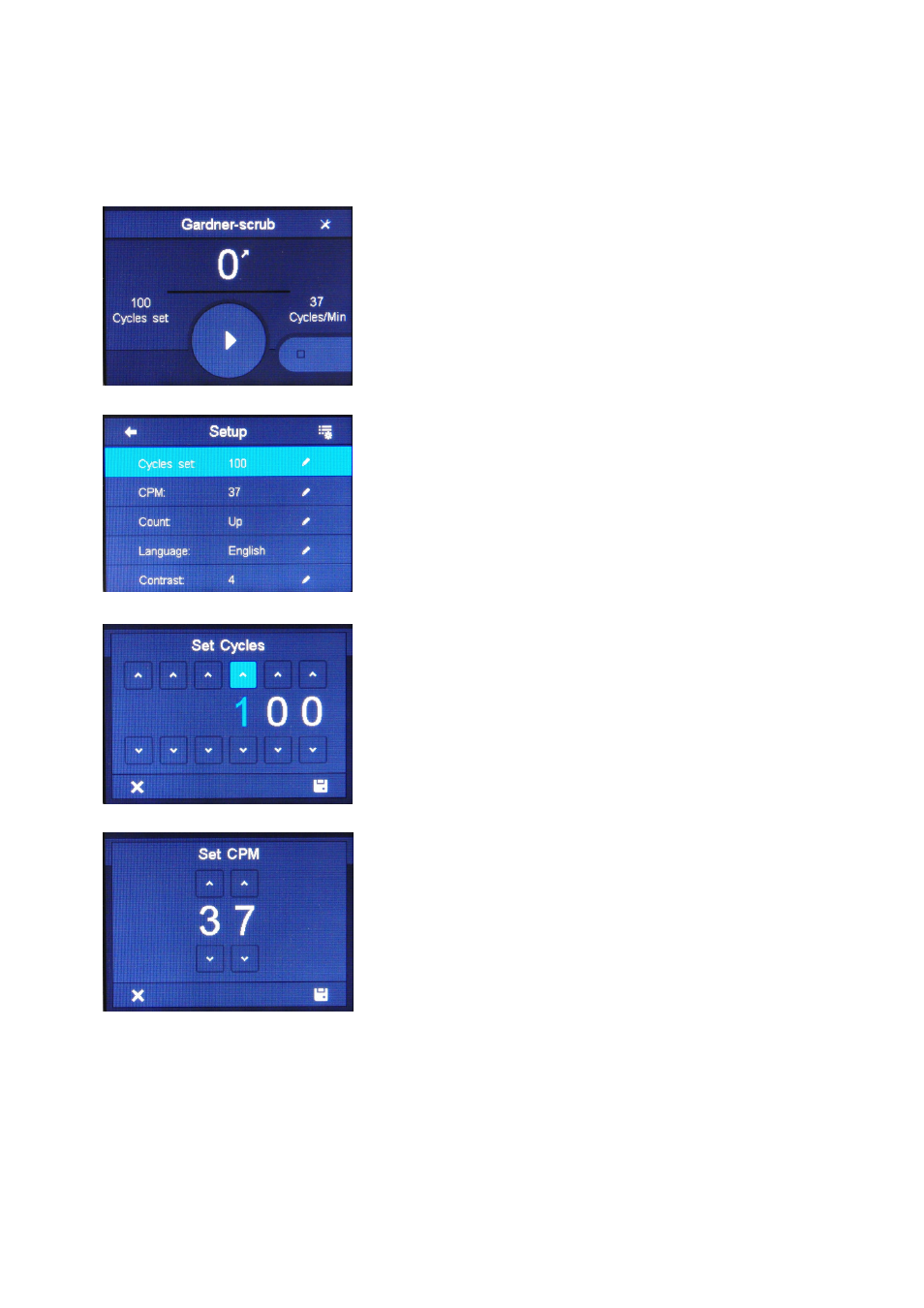

The Home screen
The large number in the center indicates number of counts,
the small arrow indicates whether the unit is counting up or
down from the Cycles set number. The Cycles Set indicates
how many cycles the instrument is programed to run. The
Cycles/Min indicates the programmed speed. The large
round button in the middle is the Start button to begin the
test. The small icon in the upper right corner is the tool icon
to get to the Setup screen.
The Setup screen
Press the tool icon on the Home screen to access the Setup
screen. Note the current settings. Press the band you wish
to change and it will turn blue. Press once more to access
the screen to change the setting. Press the Cycles set area
to access this screen.
Set cycles screen
Adjust the number of cycles that will be run without stopping
on this screen. Press the appropriate up or down arrow to
adjust each digit. The instrument will run up to 100,000
cycles. Once the desired number of cycles is set, press the
Save icon in the lower right of the screen to return to the
Setup screen. The X in the lower left will exit the screen with
no changes saved.
Set CPM screen
This screen allows you to adjust the cycles per minute or
speed of the instrument. All current test methods use 37
CPM however you can change this number for using the
instrument for non-standard accelerated or other special
testing. The maximum speed allowed is 60 CPM. Touch
save or exit to return to the Home screen.
