The Gardner-scrub incorporates a precise speed control to maintain a constant speed for the
test. The instrument is preset at 37 strokes per minute to coincide with most standardized
tests, but may be adjusted within the range of 6 to 60 strokes per minute. Unlike some other
instruments on the market, the Gardner-scrub maintains a linear speed over its travel length.
The result is a more consistent and repeatable test.

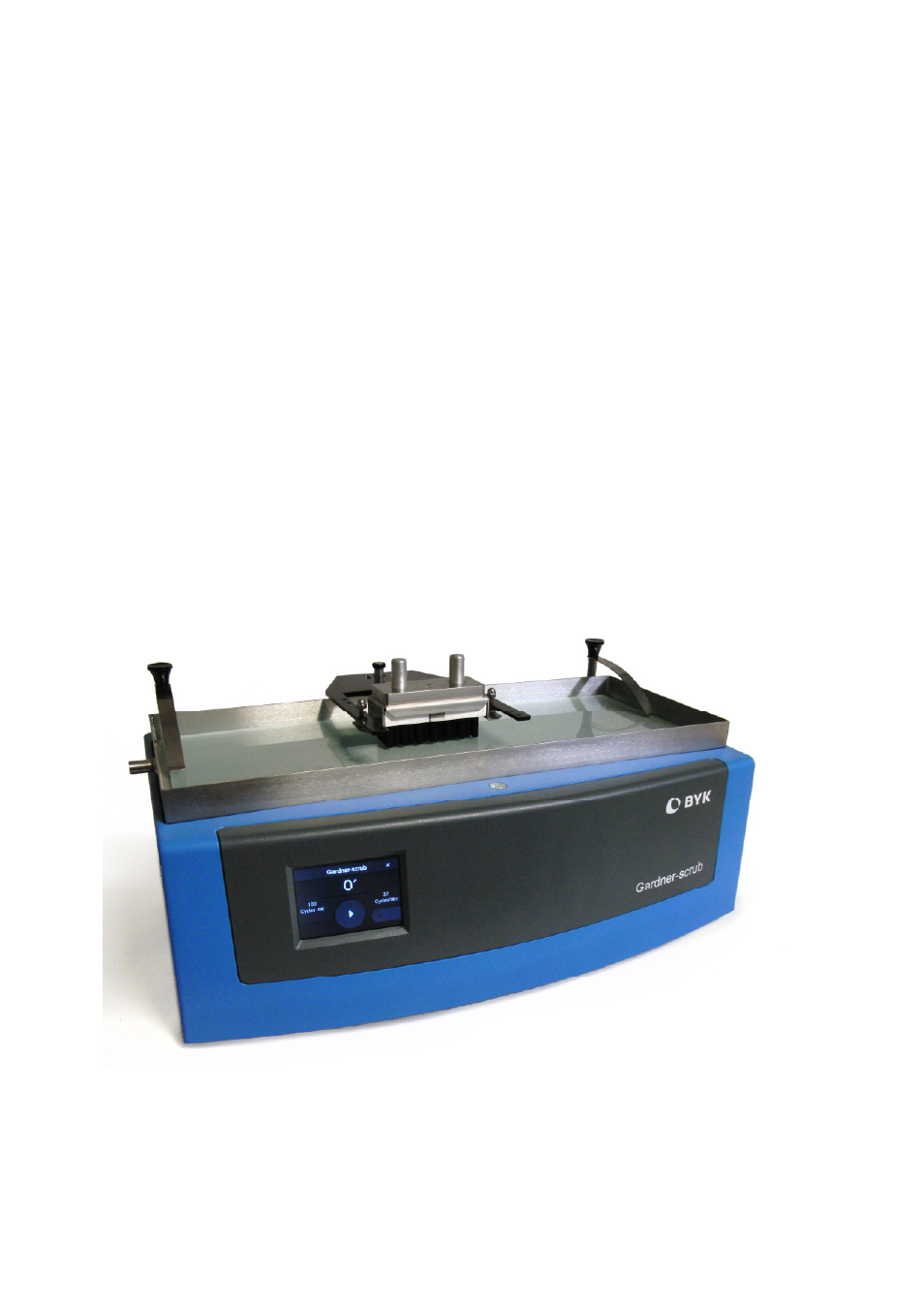

A front mounted, color touch screen is provided for user interaction. All adjustments are
available in the setup screen to provide a flexible interaction with the user.
The instrument is setup at the factory for a center-to-center stroke length of 10 inches. Stroke
lengths of 9 or 11 inches may be achieved by means of a mechanical adjustment. This
adjustment must be performed by the factory or an authorized service center.
4
Start Up
Plug the external power supply into the connector on the rear of the instrument near the
power switch. Plug the other end into an appropriate electrical outlet as described in Section
2.
Turn on the power switch. The power switch is located on the rear of the instrument, near the
power cord.
The front LCD display will illuminate, the instrument is now ready to operate.
