Mounting Instructions:
The FA206S may be mounted with or without the Swivel bracket. Without the bracket the unit may be
attached to walls or corners through the back of the detector housing. This provides a fixed mounting and
aiming pattern.
Where it is desirable to be able to adjust the viewing direction, use the swivel mounting bracket as shown.
The most common use of the swivel adjustment bracket is to compensate for mounting the unit at heights
other than the nominal 6'10". For every 1-foot variation from the 6'10" height, compensate with 1
# of tilt.
Use the tilt and swivel calibration marks to set correct compensation.

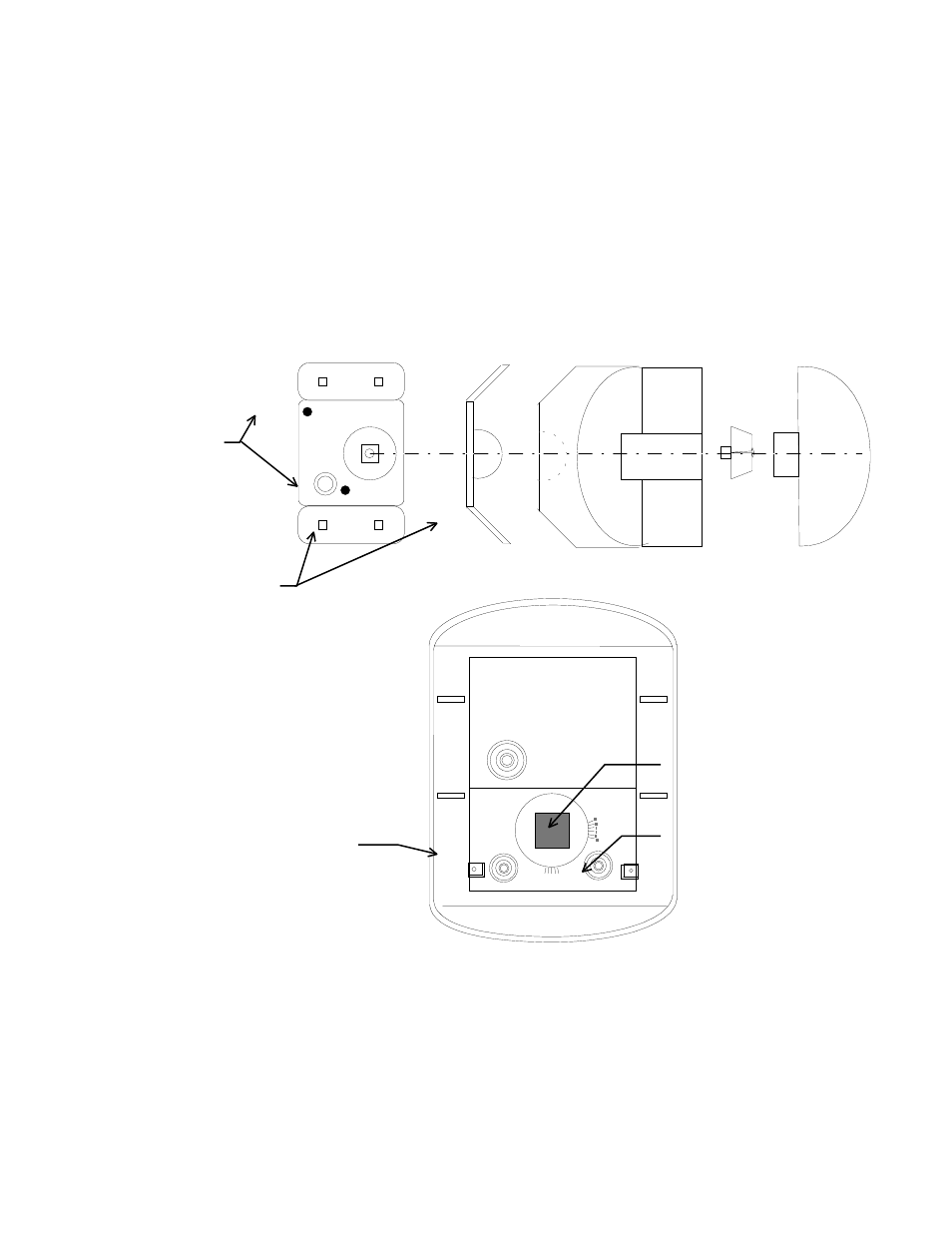

Swivel Mounting Bracket
10 5 0 5 10
Snap-off mounting tabs.
Flat wall mounting holes.
Flat mount
knockout
(2 places)
Corner mount
knockout
(2 places)
Swivel mount
calibration marks
