ASSIGN CV2
This parameter sets which MIDI message is sent to
DAC 2, and thus to the CV2 output socket. The
voltage output range is from 0 to +5 V.
M M M M Number for
manual setting
MIDI-Event
0 Velocity *
1 Program Change
2 Controller #n
3 Pitch Bend
4 channel aftertouch
5 polyphonic aftertouch
* a Note On/Off message must be sent
[m m m m Manual assignment (0 to 5)
]
H Note that you can make the A-190 learn
whatever MIDI controller you choose as
the source for DAC 2, simply by sending it
via MIDI IN while in Config menu 6.
For instance, if you move the data entry control (MIDI
Controller # 6) on your master keyboard while the
A-190 is in Config menu 6, this controller is assigned
t
o
DAC 2, so that whenever it is moved, CV2’s voltage
changes correspondingly. This is equally true for
Main Volume (MIDI Controller #7), Breath Controller,
Foot Controller, etc.

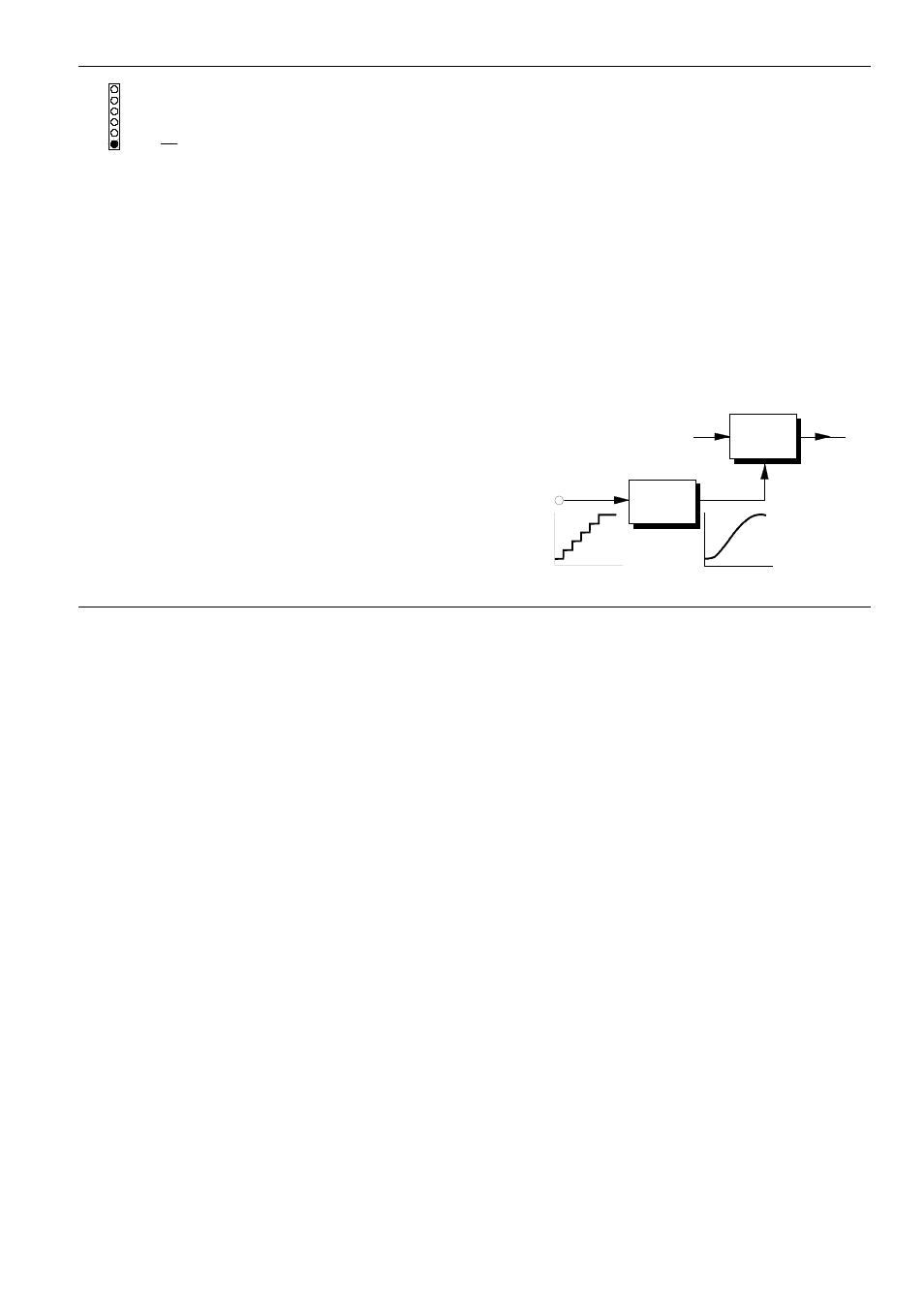

If the resulting voltage change is too obviously quanti-
sed (because MIDI has only 128 steps), then the steps
can be smoothed out with an A-170 slew limiter (see
the diagram).
Config Menu 6
CV 2
0
CV 2
VCF
A-170
CV
