Doepfer Pocket Electronic User Manual
Page 11
User's Guide
Pocket Electronic
Page 11
Mounting
Before PE is put into operation the board has to be fixed on a suitable support and built into a
metal case together with the controls (refer to EMC notes on page 2). The metal case has to be
connected to GND of PE. We recommend to use the metal plate of the voltage regulator
7805/IC6 or the GND terminal of the power supply socket for this connection.
The board measures about 80 x 56 x 25 mm. Five mounting holes with 3 mm diameter are
available for mounting the board inside the case e.g. with distance sleeves or spacers (> 5 mm
in length) and suitable screws. Pay attention that no short circuits are made – neither on the top
of the board (electronic parts) nor on the bottom (solder points or pcb tracks). In case of doubt
use isolating plastic parts (e.g. plastic screws, nuts and washers) for mounting.

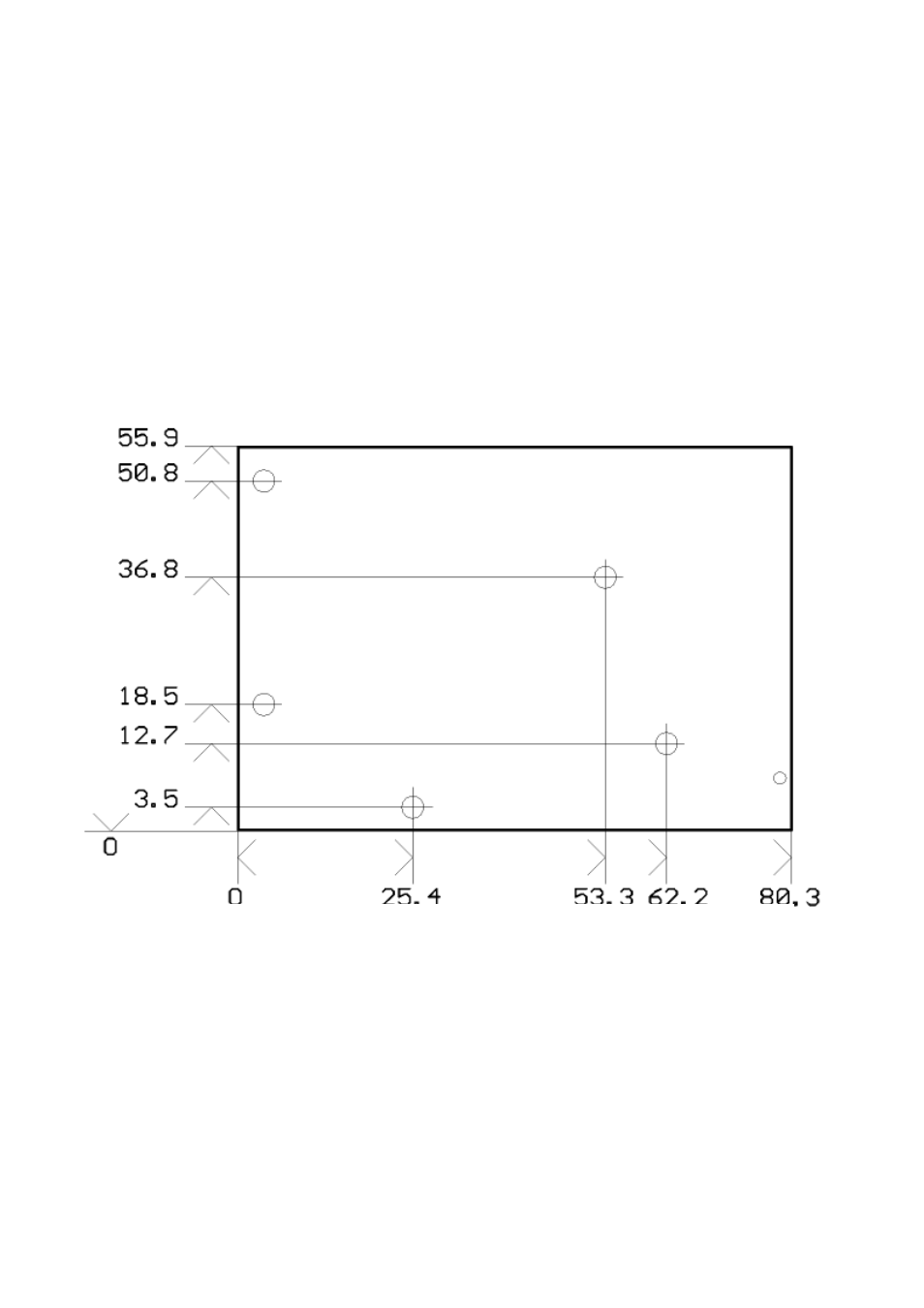

Position of the mounting holes
(measures in mm)
