22 EZT ®

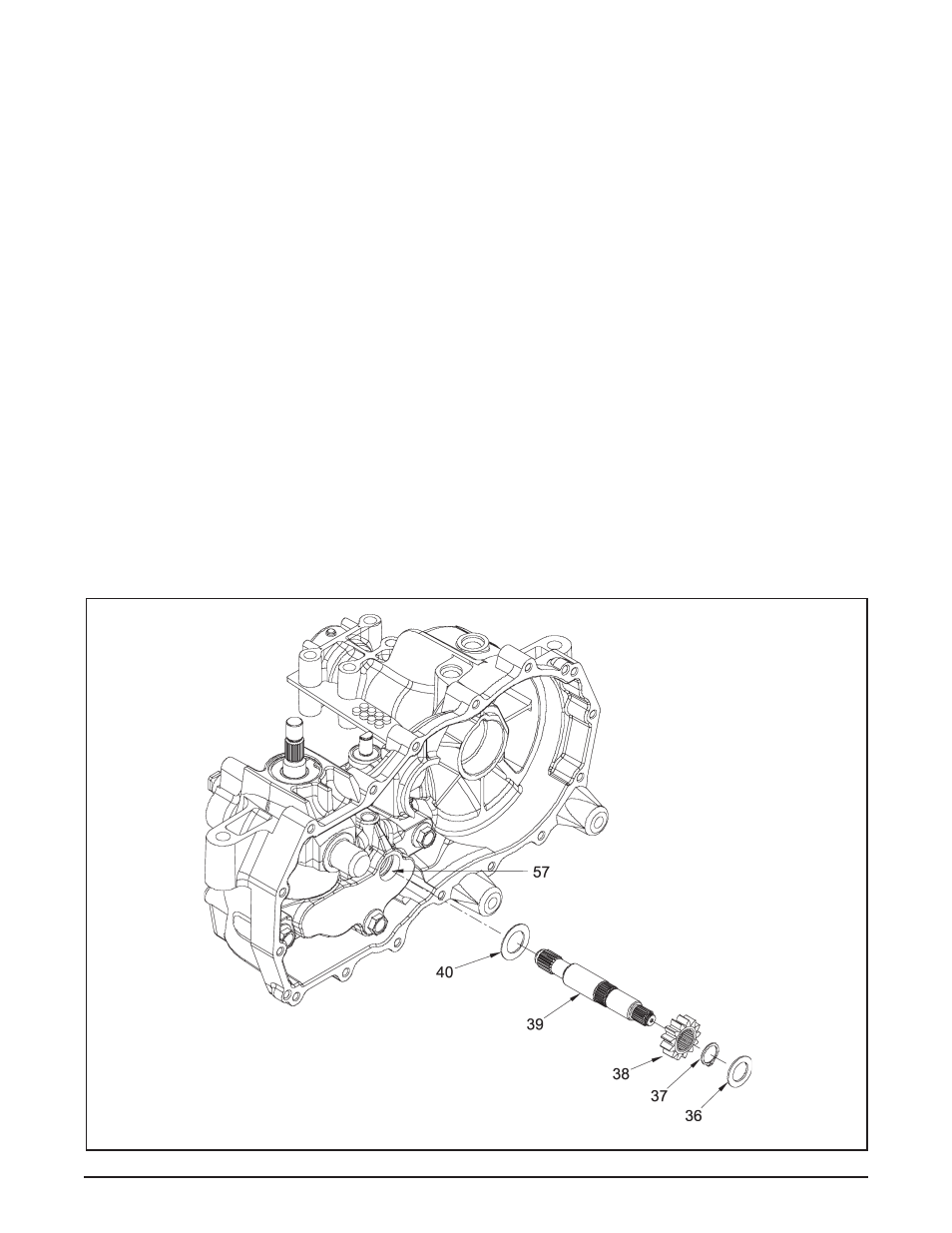

figure 14. Motor shaft
Refer to Figure 14.
disassembly
1. Remove the control arm and bypass arm.
See page 16.
2. Drain the oil from the transaxle. See page
9.
3. Remove the side cover. See page 20.
4. Remove the reduction gears. See page
21.
5. Remove flat washer (36), motor shaft and
pinion gear (39 & 38) and flat washer (40).
inspection
1. Inspect the motor shaft (39), pinnion gear
(38) and flat washers (36 & 40) for wear or
damage.
assembly
1. Insert the motor shaft (39) with the pinnion
gear (38) and flat washers (36 & 40) into the
center section (57).
2. Install the reduction gears. See page 21.
3. Install the side cover. Refer to page 20.
4. Install new seals. Refer to page 17.
5. Fill the transaxle with oil. See page 9.
6. Install the bypass arm and control arm. See
page 16.
MoTor sHafT
