18 EZT ®
Refer to Figure 10.
disassembly
1. Remove the control arm and bypass arm.
See page 16.
2. Remove the oil from the transaxle. See page
9.
3. Remove the brake arm spring (75), if in-
stalled. Remove the brake arm screw(s)
(73), washer(s) (72), brake arm (74) and
bushing(s) (71).
4. Remove the retaining ring (14) and cog
brake disc (100).
5. Remove the motor shaft lip seal (10), if re-
moving the side housing.
inspection
1. Check the brake arm and cog brake disc for
excessive wear or teeth damage. Replace
if necessary.

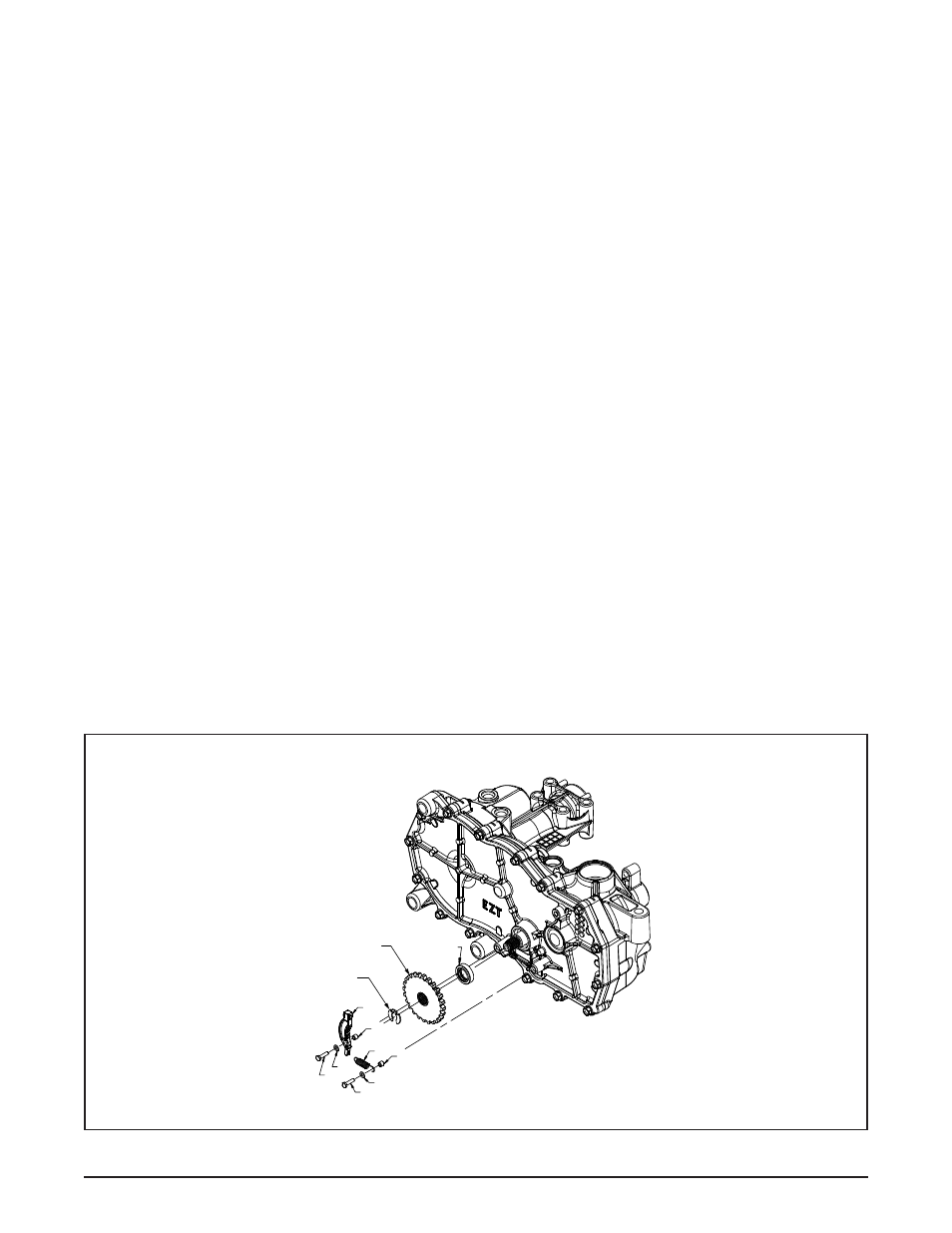

figure 10. cog Brake assembly
2. Check for excessive looseness at the arm
pivot point.
assembly
1. Install the motor shaft lip seal (10), if re-
moved. Refer to page 16. Remember to use
a seal protector during installation.
2. Install the cog brake disc (100) and retaining
ring (14).
3. Install the bushing(s) (71), brake arm (74),
washer(s) (72) and brake arm screw(s) (73).
Torque screws to 80-120 in-lbs (9-14 Nm).
4. Install the brake arm spring (75), if re-
moved.
5. Fill the transaxle with new oil. See page 9.
6. Install the bypass arm and control arm. See
page 16.
cog BraKE assEMBlY
73
73
72
71
72
71
75
74
14
100 10
