Digital Video Recorder User Manual
9
Item Name Description
12 ALARM OUT Relay output1-4. Connect to external alarm.
13 +5V and GND +5 V and Grounding
14 AUDIO IN Audio input form 1-8 channels
15 FAN For cooling the device
16 POWER INPUT AC 110Vor 110V
17 POWER SWITCH Switch on/off
18 LOOP OUT For outputting each channel’s image independently
19 e-SATA Connect to HDD for backup
20 Video in Video input channels from 1-8
21 Video out Connect to monitor
Tab 2.3 Definition of Rear Interface

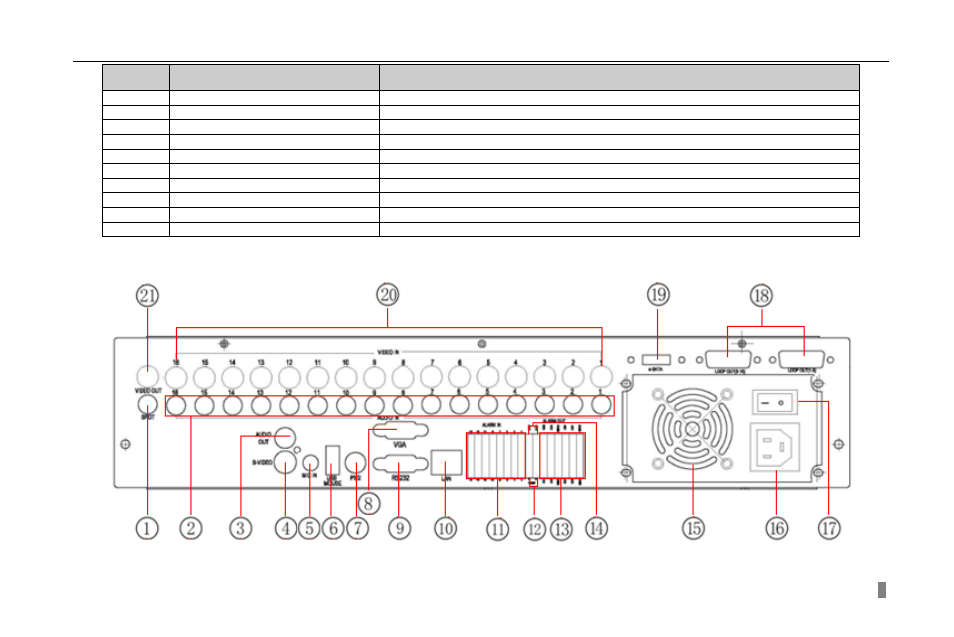

Fig 2.4 Rear Panel (3) for 16-channel DVR
