Digital Video Recorder User Manual
8

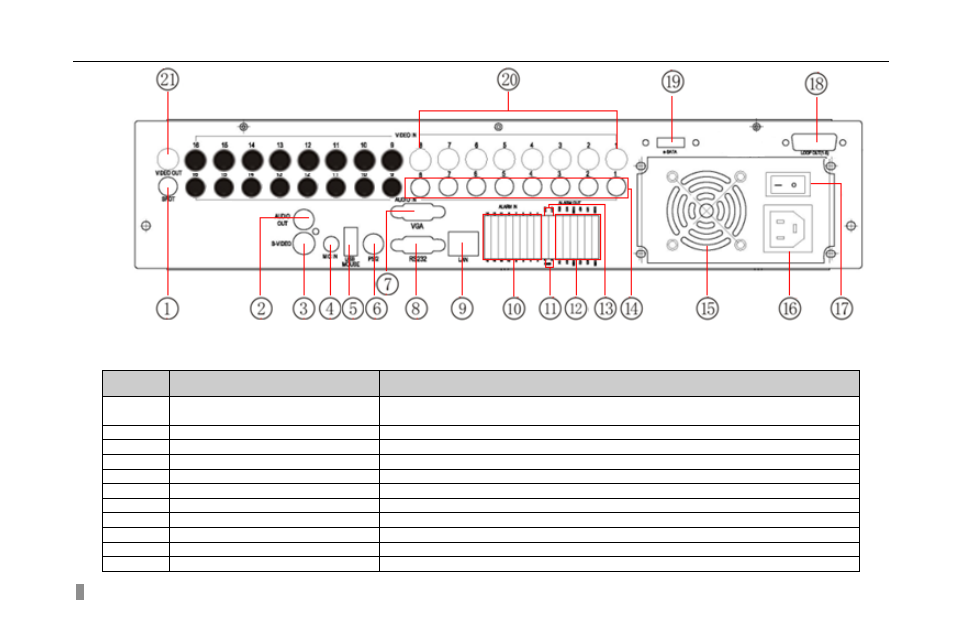

Fig 2.3 Rear Panel (2) for 8-channel DVR
Item Name Description
1 Spot out
Connect to monitor as an AUX output channel by channel. Only video display, no menu
show
2 Audio out Audio output, connect to the sound box
3 S-VIDEO S-Video output, connect to monitor
4 MIC IN Talk
5 USB MOUSE Only for USB mouse
6 PS/2 port Connect to PS/2 mouse
7 VGA port VGA output, connect to monitor
8 RS232 For debug
9 LAN Network port
10 ALARM IN Connect to external sensor1-8, 9-16 reserved
11 RS485 Connect to speed dome
